EnGenius ECB3500 User Manual

11b/g Wireless Long Range Multi-function 7+1 AP Version 1.1
71

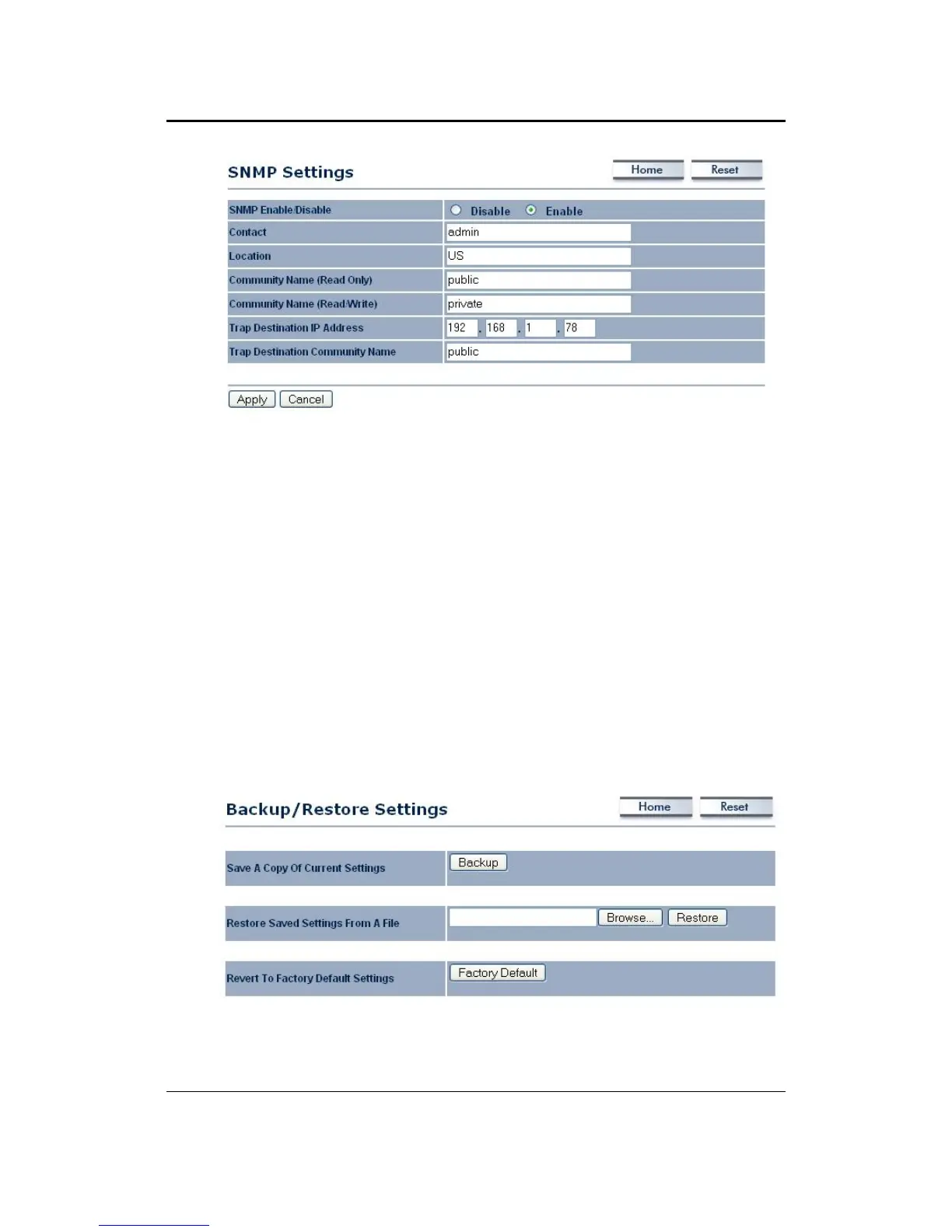

 SNMP Enable/Disable: Choose to enable or disable the SNMP feature.
 Contact: Specify the contact details of the device.
 Location: Specify the location of the device.
 Read-Only Community Name: Specify the password for access the SNMP
community for read only access.
 Read-Write Community Name: Specify the password for access to the SNMP
community with read/write access.
 Send SNMP Trap: Specify the IP address of the computer that will receive the
SNMP traps.
 Trap Community Name: Specify the password for the SNMP trap community.
 Click on the Apply button to save the changes.
7.5.3 Backup/Restore settings, Reset to factory default settings
 Click on the Backup/Restore Setting link under the Management menu. This option
is used to save the current settings of the device in a file on your local disk or load
settings on to the device from a local disk. This feature is very handy for
administrators who have several devices that need to be configured with the same
settings.
 Save a copy of the current settings: Click on the Backup button to save the current
configuration.

EnGenius ECB3500 Specifications

General

Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Frequency band	2.4 GHz
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	108 Mbit/s
Wireless technology	802.11 b/g
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	TNC
Antenna gain level (max)	5 dBi
Internal	No
Certification	FCC, CE
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	-20 - 70 %
Operating relative humidity (H-H)	5 - 95 %
Flash memory	4 MB
Internal memory	32 MB
Input current	1 A
AC input voltage	12 V

Weight and Dimensions

Dimensions (WxDxH)	120 x 120 x 50 mm
