EnGenius ECB3500 User Manual

11b/g Wireless Long Range Multi-function 7+1 AP Version 1.1
11
2 Understanding the Hardware
2.1 Hardware Installation
1 Place the unit in an appropriate place after conducting a site survey.
2 Plug one end of the Ethernet cable into the RJ-45 port on the rear panel of the
device and another end into your PC/Notebook.
3 Insert the DC-inlet of the power adapter into the port labeled “DC-IN” and the
other end into the power socket on the wall.

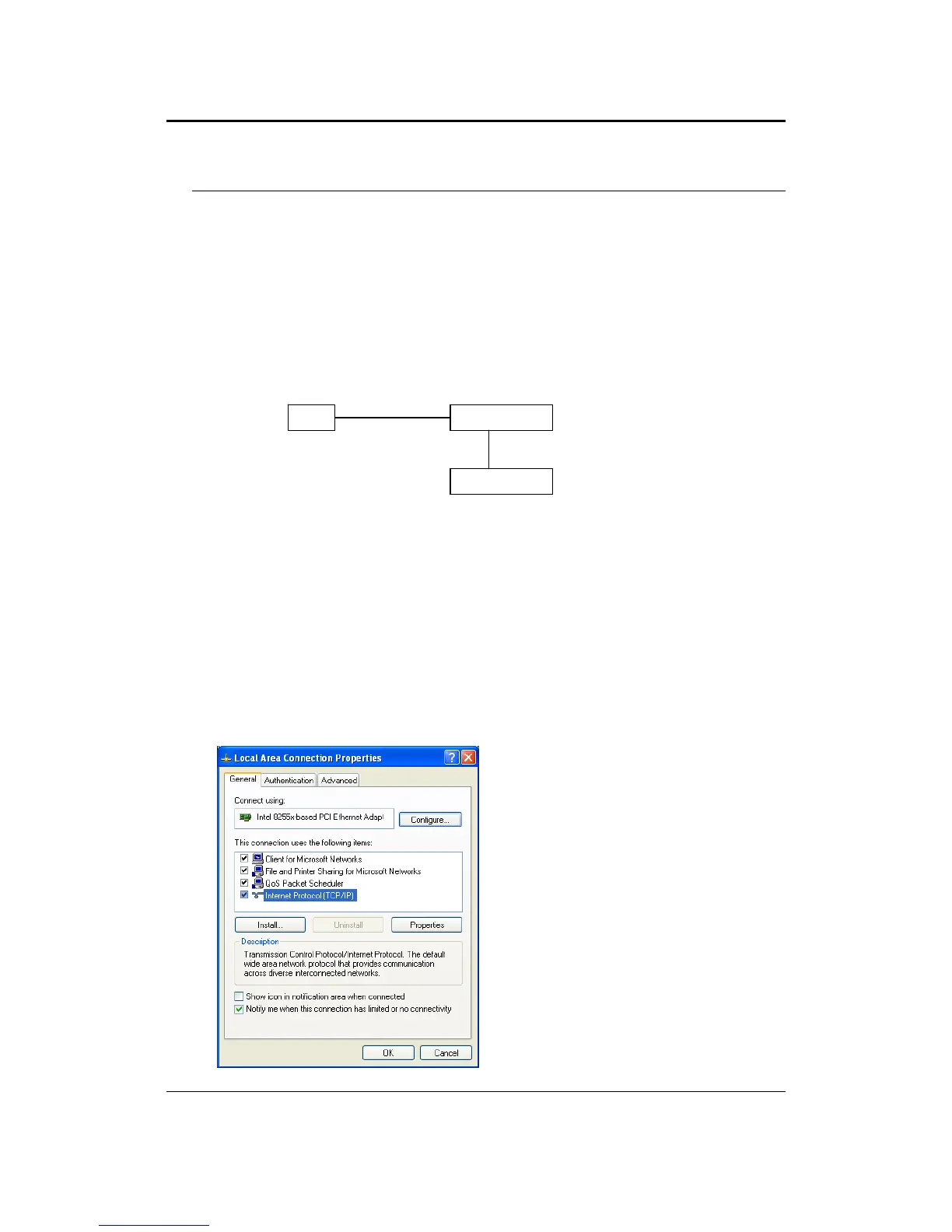

This diagram depicts the hardware configuration
3.1 IP Address Configuration
This device can be configured as a Bridge/Router or Access Point. The default IP
address of the device is 192.168.1.1 In order to log into this device, you must first
configure the TCP/IP settings of your PC/Notebook.
1. In the control panel, double click Network Connections and then double click on the
connection of your Network Interface Card (NIC). You will then see the following
screen.
A
ccess PointPC
Power Outlet
Ethernet
AC/DC cable

EnGenius ECB3500 Specifications

General

Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Frequency band	2.4 GHz
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	108 Mbit/s
Wireless technology	802.11 b/g
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	TNC
Antenna gain level (max)	5 dBi
Internal	No
Certification	FCC, CE
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	-20 - 70 %
Operating relative humidity (H-H)	5 - 95 %
Flash memory	4 MB
Internal memory	32 MB
Input current	1 A
AC input voltage	12 V

Weight and Dimensions

Dimensions (WxDxH)	120 x 120 x 50 mm
