11b/g Wireless Long Range Multi-function 7+1 AP Version 1.1
15
4.1 Logging In
To configure the device through the web-browser, enter the IP address of the device
(default: 192.168.1.1) into the address bar of the web-browser and press Enter.
Make sure that the device and your computers are configured on the same subnet.
Refer to Chapter 2 in order to configure the IP address of your computer.

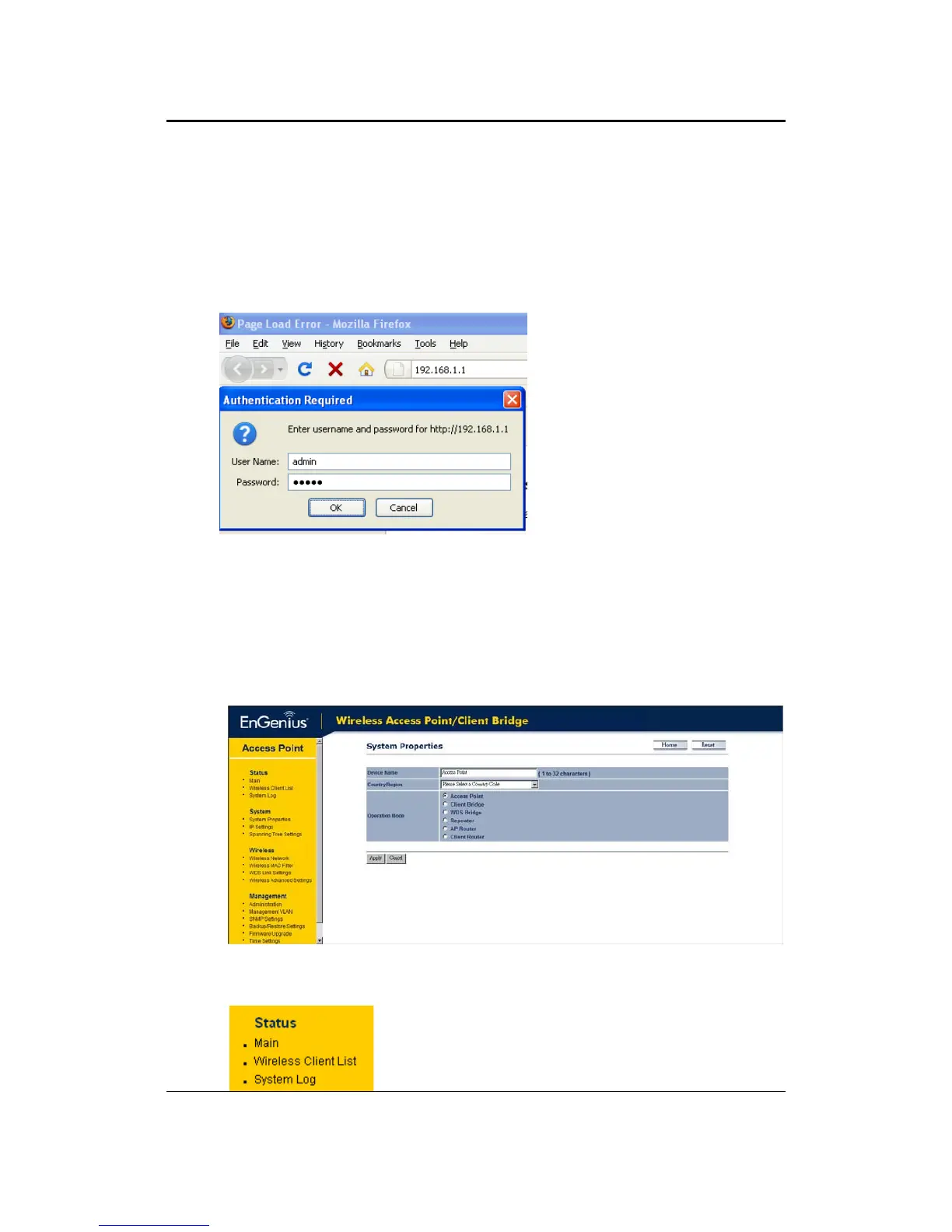

After connecting to the IP address, the web-browser will display the login page.
Specify admin for both the user name and password.
After logging in you will graphical user interface (GUI) of the device. The navigation
drop-down menu on left is divided into four sections:
1. Status: Displays the overall status, wireless client list, and system log.
2. System: This menu includes the system properties, IP and Spanning Tree settings.
3. Wireless: This menu includes wireless network status, MAC filter, WDS settings,
and wireless advanced settings.
4.
Management: This menu includes the admin setup, SNMP, VLAN management,
firmware upgrade, and save/restore backup.
4.2 Status
Click on the Status link on the navigation drop-
down menu. You will then see three options: Main,
Wireless Client List, and System Log. Each option is
described in detail below.
