EOS EMOTEC DC 9000 User Manual
5
of 1
of 1 rating
39 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
1
1
GB
4
3
3
5
4
5
oder
or
= alternativ
400
V 3 N AC 50 Hz
2
emotion of sauna.
LSG
Emotec
6
EmoLux
F1
F2
X3
X5a
X2
Jumper
X5
X1
X6
X4
PE
L1
L2
L3
N
N
N
U
V
W
WB
S1
F
AN
LIGHT
WM
L
N
L
N
P+
TEMP
.-SENSOR
Nr
. 2
Nr
. 1
TEMP
.-
LIMITER
H-SENSOR
Ub
E
G
Res
24h
12h
6h
500 mA T
500 mA T

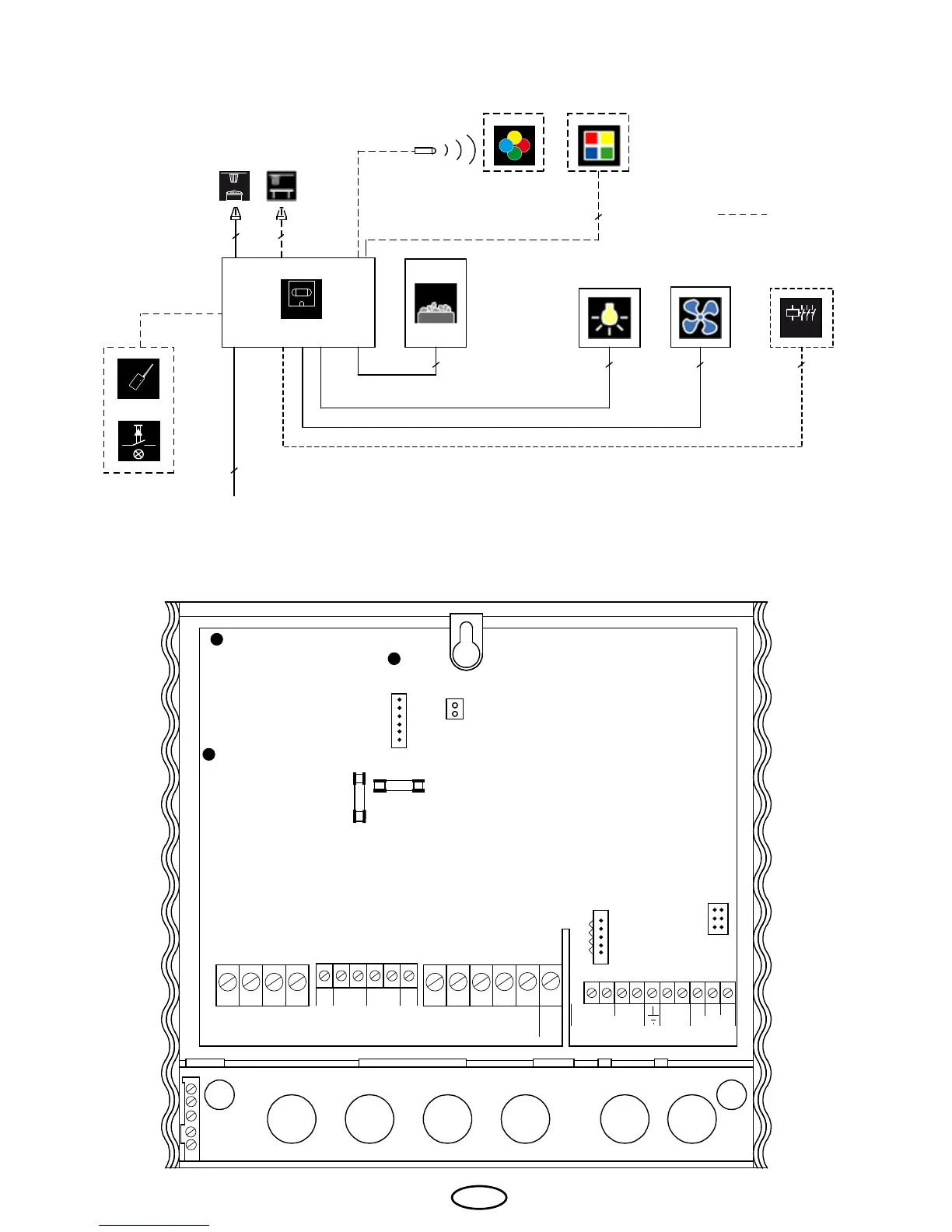

Installation diagram
T
erminal arrangement on the circuit board.
10
12
Table of Contents
Table of Contents
2
Package Contents
4
Optional Connections
4
Technical Data
5
General Information Concerning Sauna Bathing
6
General Safety Precautions
7
Assembly of the Control Unit
8
Wall Mounting
8
Electrical Connection
9
Connecting the Sauna Oven
9
Connecting the Sauna Lamp
10
Connecting a Fan
10
Connecting a Power Control Unit
10
Connecting a Colored Light
10
Connecting the Remote Button
10
Connecting a GSM Module
10
Connecting the Phase Section Module for Led/Spot Lights
10
Connecting the Switch Module for Energy-Saving Lamps
10
Installation Diagram
11
Terminal Arrangement on the Circuit Board
11
Sensor Connection
12
Connection of Sauna Heaters ≤ 9 Kw
12
Connection of Sauna Heaters > 9 Kw
13
Connecting the Sensor Lines
14
Mounting the Oven Sensor
14
Installing the Optional Bench Sensor
15
Operation
16
Button Functions
16
Symbol Description
16
Initial Unit Switch-On
17
Preset Parameters
18
Finnish Sauna Mode
18
Temperature Display
18
Actual - Target Display
18
Heating Time
18
To Consider When Programming
19
The Keylock / Hotel Mode
20
Specialist Section
21
F1 Setting the Current Time
21
F5 Link Color Light Options with Heater
22
F8 the Optional Bench Sensor
23
F10 Reset Time from the Submenus
24
Programming Levels
25
P1 Starting with the Time Preselection
25
Deactivating the Time Preselection
26
P2 Heating Time Limitation
26
Activation of the Weekly Timer
27
P0 Weekly Timer
27
P1 Starting with Time Preselection in Weekly Timer Mode
28
P5 Temperature Setting
30
P6 Programming Fan Operation
31
P7 Ability to DIM the Cubicle Lights
32
Coloured Light (Optional)
33
P9 Setting the Time Interval for the Coloured Light
35
The Control Unit Switch (Switch-Off)
36
Switching over the Heating Time Limitation for Commercial Use or Weekly Timer
36
Error Display
37
Other Error Options that Are Not Displayed and Their Causes
37
Service Address
38
Guarantee
38
Handling Procedures for Return Shipments (RMA) - Details for All Returns
39
Other manuals for EOS EMOTEC DC 9000
User Guide
