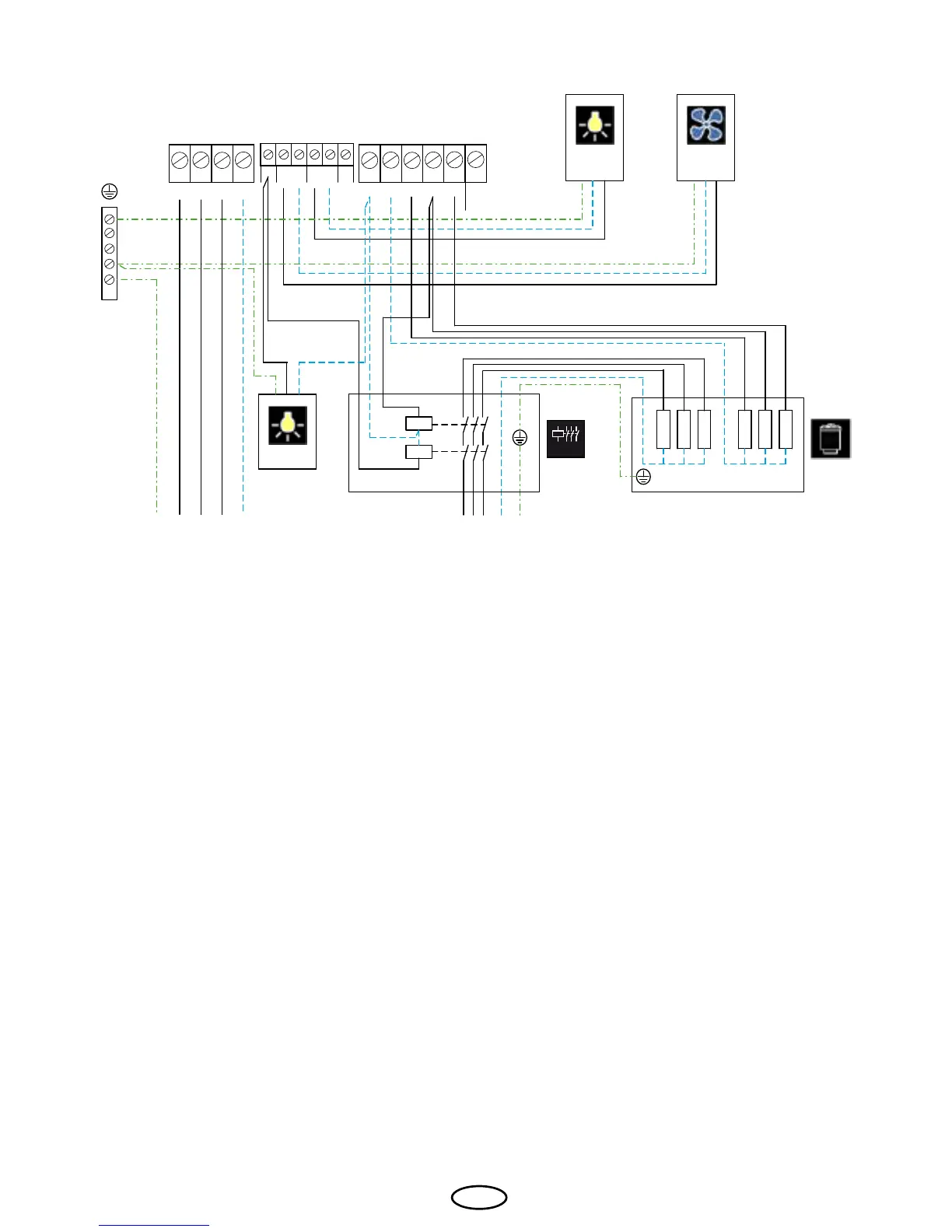

EOS EMOTEC DC 9000 - Connection of Sauna Heaters > 9 Kw

13
GB
* For public installations without heating time limitation, the pilot light
must be installed in the control room.
P max. 9 kW
X3
X2X1
L1 L2 L3 N
N
N
U
V
W
WB
S1
FAN
LIGHT
WM
L N L N
400 V 3 N AC 50 Hz
max. 100 W
max. 100 W
400 V 3 N AC 50 Hz
LSG
*
Connection of sauna heaters > 9 kW
