EOS EMOTEC DC 9000 - Error Display; Other Error Options that Are Not Displayed and Their Causes

37
GB
Error display
n order to provide an immediate diagnosis for any errors that may occur, the following errors
can be determined via on-screen error codes.
Error code Error description
E100 –Temperature sensor fault (no signal)
E101 – Temperature sensor short circuit
E103 – Bench sensor (optional 2
nd
sensor) fault (no signal)
E104 - Bench temperature sensor (optional 2
nd
sensor) short circuit
E211 – Overheating limiter fault (no signal or blown fuse)
Other error options that are not displayed and their causes:
Screen is blank – no background lighting
Check the main switch setting.
Check the mains connection! Each of the 3 phases L1, L2 and L3 must have 230V AC.
Check the fuses!

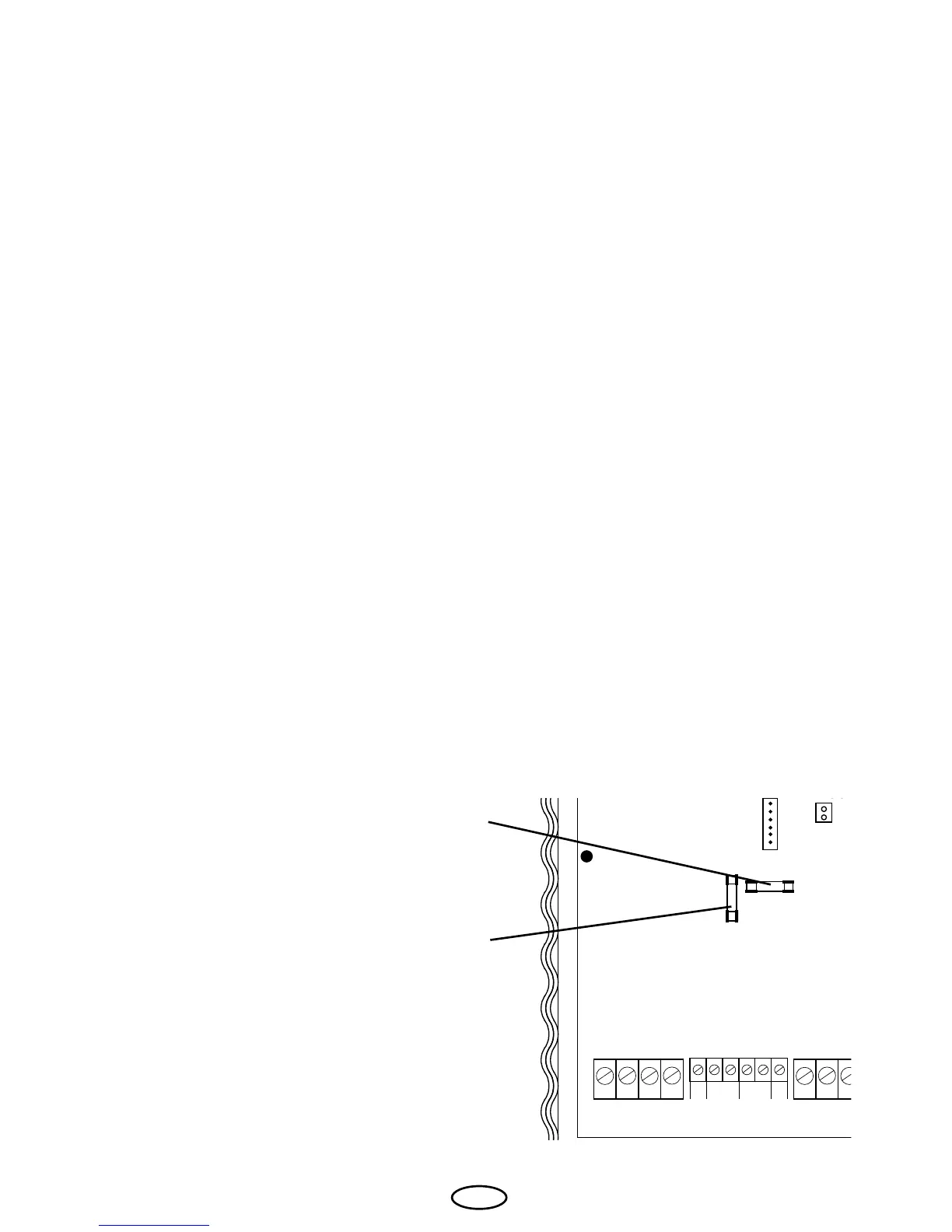

Cabin light malfunction:
Check the fuse on the main board
Fan malfunction:
Check the fuse on the main board
Both fuses are 500 mA T
