Epson EB-S04 User Manual

11
Projector Parts and Functions
The following sections explain the projector parts and their functions.
Name Function
A
Air exhaust vent Exhaust vent for air used to cool the projector
gg Related Links
internally.
• "Projector Parts - Front" p.11
• "Projector Parts - Rear" p.12
Warning
• "Projector Parts - Base" p.13
• "Projector Parts - Control Panel" p.14
Do not look into the vents. If the lamp
explodes, gases may escape and small
• "Projector Parts - Remote Control" p.15
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get

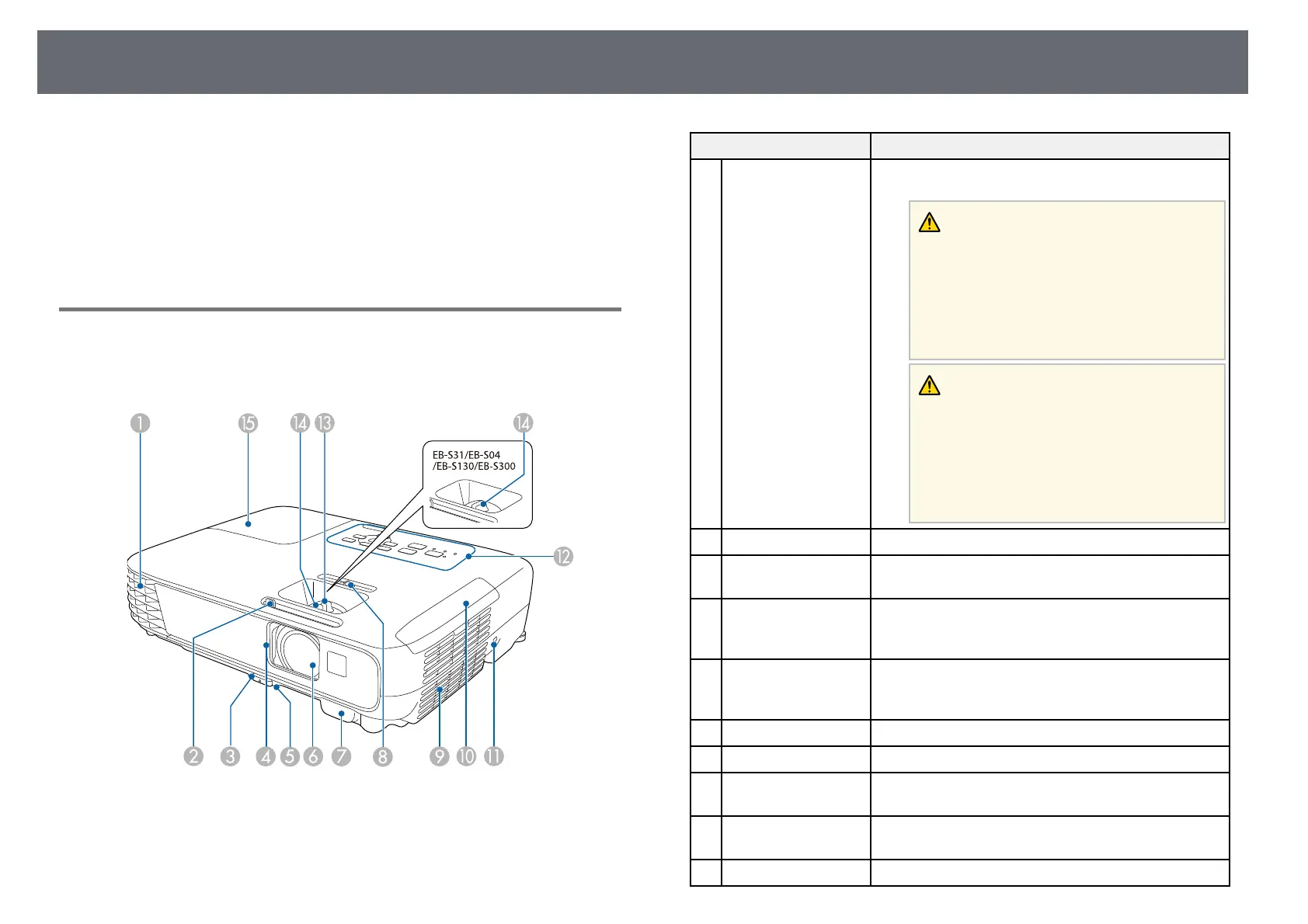

Projector Parts - Front
into the eyes or mouth.
All of the features in this guide are explained using illustrations of EB-W04
unless otherwise mentioned.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
B
A/V Mute slide lever Slide the knob to open and close the lens cover.
C
Foot release lever Press the foot release lever to extend and retract the
front adjustable foot.
D
Lens cover Close when not using the projector to protect the lens.
By closing it during projection you can hide the image
and the sound.
E
Front adjustable foot When the projector is set up on a surface such as a
desk, extend the foot to adjust the position of the
image.
F
Lens Images are projected from here.
G
Remote receiver Receives signals from the remote control.
H
Horizontal keystone Corrects horizontal distortion in the projected image.
adjuster
I
Air intake vent (air Takes in air to cool the projector internally.
filter)
J
Air filter cover Open to access the air filter.

Epson EB-S04 Specifications

General

Native aspect ratio	-
Projection distance	1.77 - 2.4 m
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Projection distance (wide)	0.88 - 10.44 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	- 30 - 30 °
Projector brightness (economic mode)	2100 ANSI lumens
Focus	Manual
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	277 W
Power consumption (economy mode)	207 W
Ethernet LAN (RJ-45) ports	0
Cables included	AC, VGA
Remote control type	IR
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
USB 2.0 ports quantity	2
Pallet width	800 mm
Pallet height	1190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	234 mm
Width	297 mm
Height	77 mm
Weight	2400 g
Package depth	360 mm
Package width	350 mm
Package height	160 mm
Package weight	3829 g
