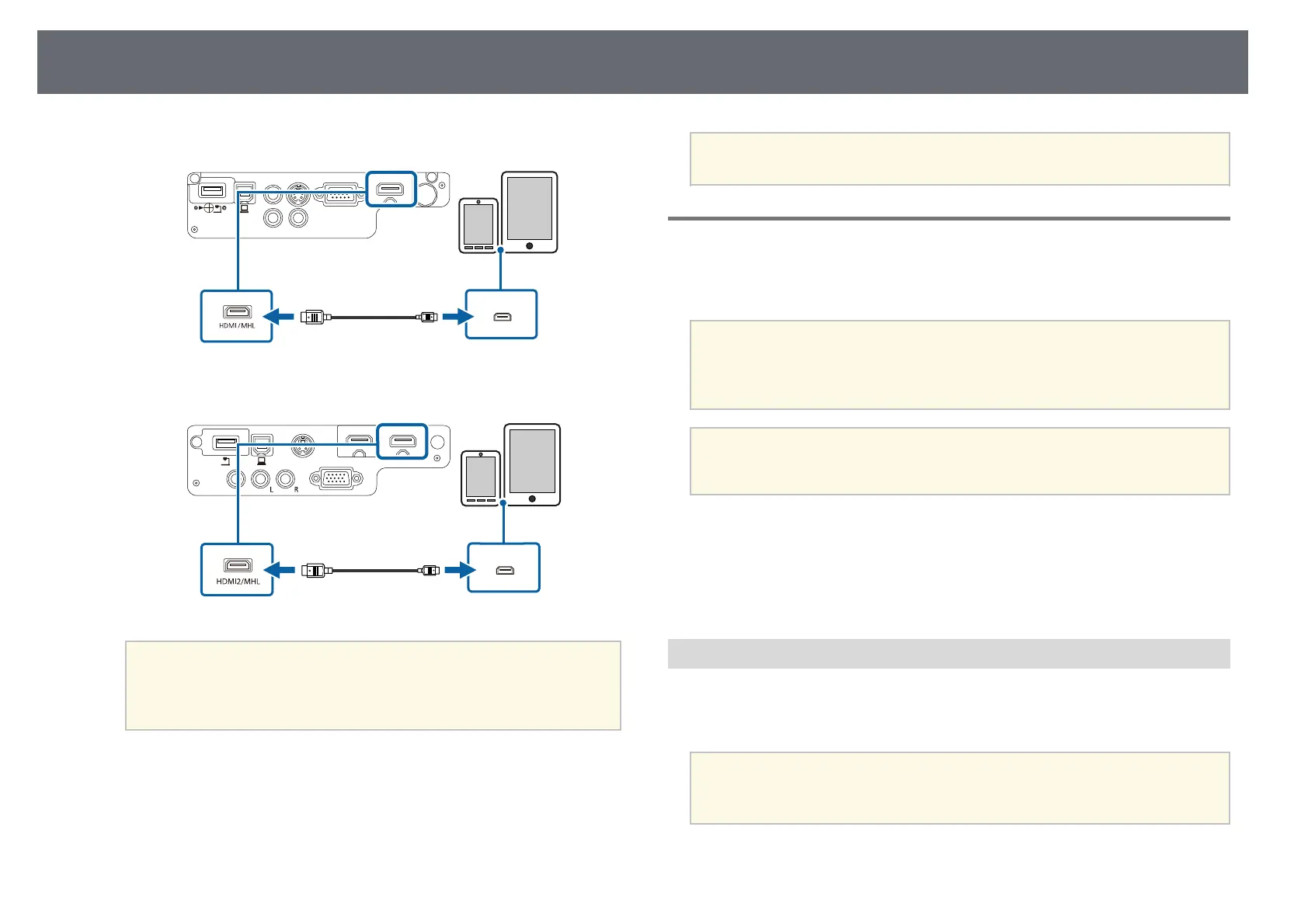

Projector Connections
a
Connect the HDMI cable to your video source's HDMI output port.
EB-W32/EB-W31
If images are not projected correctly, disconnect and then reconnect
the MHL cable.
a
Connecting to Video Sources
Follow the instructions in these sections to connect video devices to the
projector.
Attention
Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or your
projector could be damaged or could malfunction.
EB-U32/EB-U04/EB-U130
If the port on the device you connect has an unusual shape, use the
cable supplied with the device or an optional cable to connect to the
a
projector.
gg Related Links
• "Connecting to an HDMI Video Source" p.24
• "Connecting to a Component-to-VGA Video Source" p.25
• "Connecting to an S-Video Video Source" p.26
• "Connecting to a Composite Video Source" p.26
Connecting to an HDMI Video Source
Attention
If you connect an MHL cable that does not support the MHL standard, the
If your video source has an HDMI port, you can connect it to the projector
smartphone or tablet device may become hot, or leakage or explosion may
using a commercially available HDMI cable and send the image source's audio
happen.
with the projected image.
The connected smartphone or tablet begins charging when images are
Attention
projected. If you connect using a commercially available MHL-HDMI
Do not turn on the video source before connecting it to the projector. Doing so
conversion adapter, charging the smartphone or tablet device may not
could damage the projector.
work or you may not be able to perform operations using the
projector's remote control.

Epson EB-S04 Specifications

General

Native aspect ratio	-
Projection distance	1.77 - 2.4 m
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Projection distance (wide)	0.88 - 10.44 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	- 30 - 30 °
Projector brightness (economic mode)	2100 ANSI lumens
Focus	Manual
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	277 W
Power consumption (economy mode)	207 W
Ethernet LAN (RJ-45) ports	0
Cables included	AC, VGA
Remote control type	IR
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
USB 2.0 ports quantity	2
Pallet width	800 mm
Pallet height	1190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	234 mm
Width	297 mm
Height	77 mm
Weight	2400 g
Package depth	360 mm
Package width	350 mm
Package height	160 mm
Package weight	3829 g
