Epson EB-S04 User Manual

41
Image Shape
• "Projector Setup Settings - Extended Menu" p.107
You can project an even, rectangular image by placing the projector directly
Correcting the Image Shape with the Horizontal
in front of the center of the screen and keeping it level. If you place the
Keystone Slider
projector at an angle to the screen, or tilt it up or down, or off to the side, you
may need to correct the image shape.

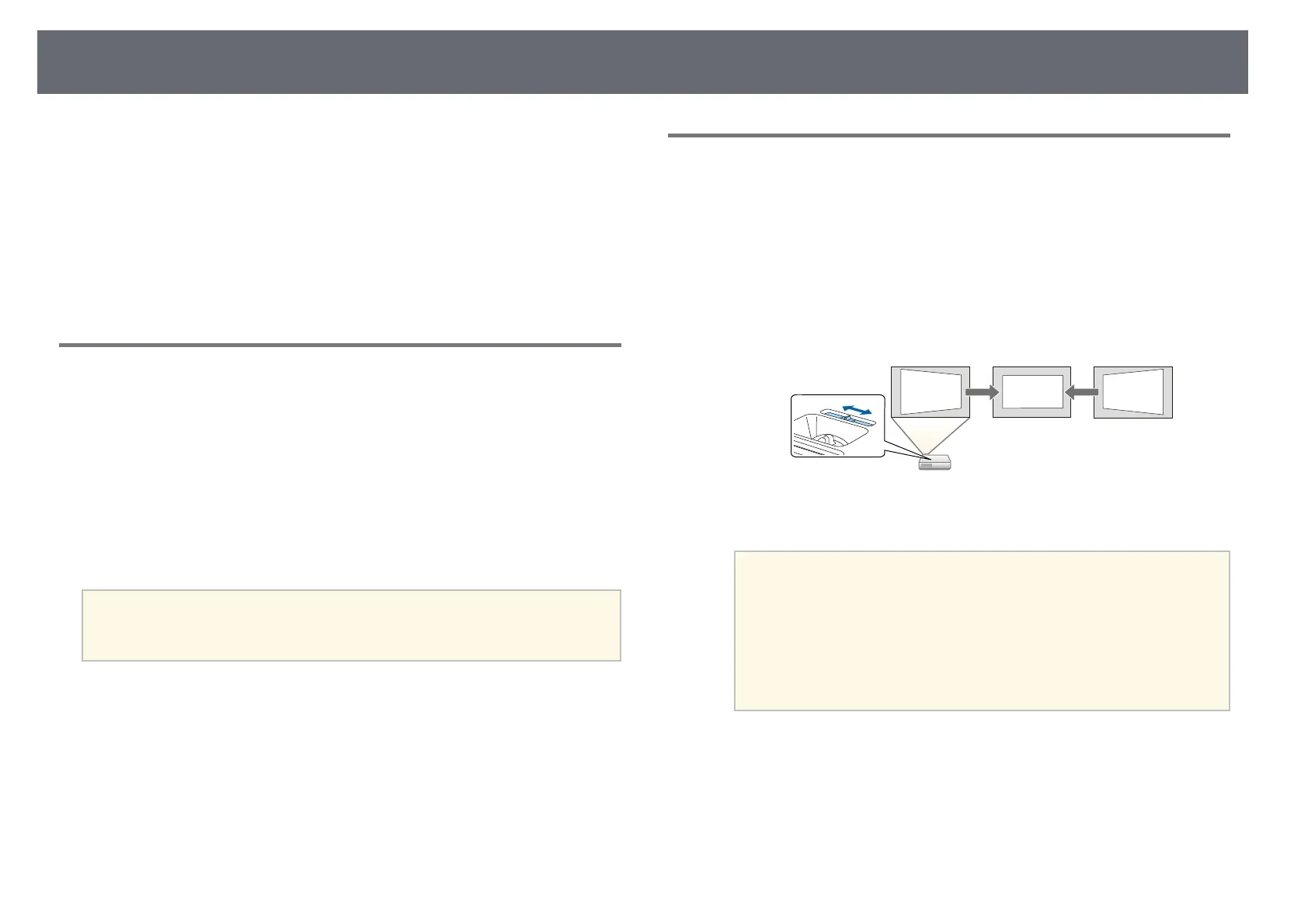

You can use the projector's horizontal keystone slider to correct the shape of
gg Related Links
an image that is an uneven horizontal rectangle, such as when the projector is
• "Auto V-Keystone" p.41
placed to the side of the projection area.
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.41
• "Correcting the Image Shape with the Keystone Buttons" p.42
a
Turn on the projector and display an image.
• "Correcting the Image Shape with Quick Corner" p.43
b
Adjust the slider until the image is an even rectangle.
Auto V-Keystone
When the projector is moved or tilted, Auto V-Keystone automatically
corrects any vertical keystone distortion.
When the projector is moved, it displays an adjustment screen and then
automatically corrects the projected image.
Auto V-Keystone can correct the projected image distortion in these
conditions:
After correction, your image is slightly smaller.
• Projection angle is about 30º up or down
• The Projection setting is set to Front in the projector's Extended menu
• When you use the horizontal keystone slider, set H-Keystone
Adjuster to On in the projector's Settings menu.
a
s Settings > Keystone > H/V-Keystone > H-Keystone
If you do not want to use the Auto V-Keystone function, set Auto V-
Adjuster
Keystone to Off in the projector's Settings menu.
a
• You can also correct the shape of the image in the horizontal
s Settings > Keystone > H/V-Keystone > Auto V-Keystone
direction by pressing the [Menu] button on the remote control
and selecting H/V-Keystone in the projector's Settings menu.
gg Related Links
s Settings > Keystone > H/V-Keystone
• "Projection Modes" p.38
• "Projector Feature Settings - Settings Menu" p.105

Epson EB-S04 Specifications

General

Native aspect ratio	-
Projection distance	1.77 - 2.4 m
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Projection distance (wide)	0.88 - 10.44 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	- 30 - 30 °
Projector brightness (economic mode)	2100 ANSI lumens
Focus	Manual
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	277 W
Power consumption (economy mode)	207 W
Ethernet LAN (RJ-45) ports	0
Cables included	AC, VGA
Remote control type	IR
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
USB 2.0 ports quantity	2
Pallet width	800 mm
Pallet height	1190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	234 mm
Width	297 mm
Height	77 mm
Weight	2400 g
Package depth	360 mm
Package width	350 mm
Package height	160 mm
Package weight	3829 g
