Epson EB-S04 User Manual

25

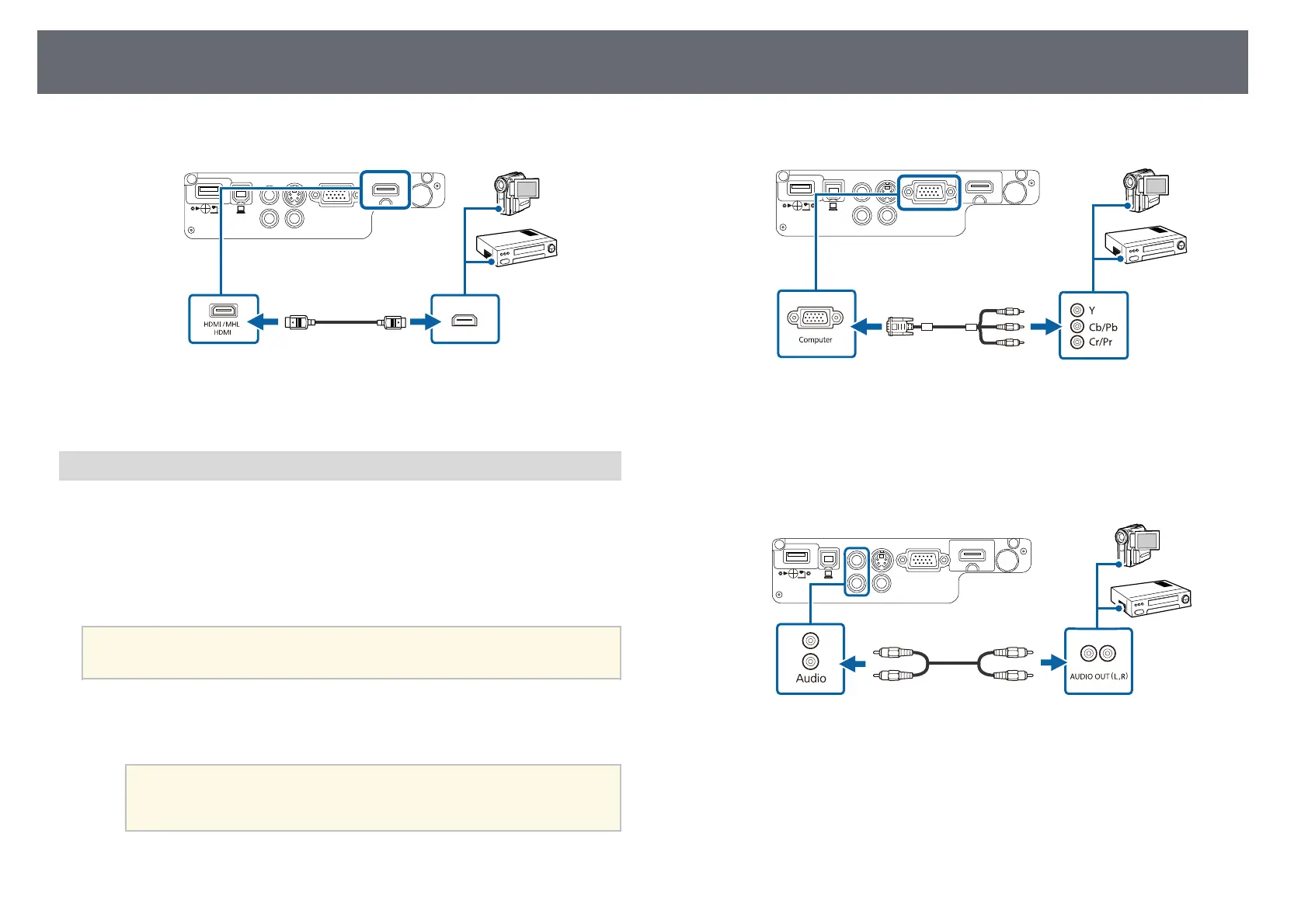

Projector Connections
• "Input Signal Settings - Signal Menu" p.103
b
Connect the other end to the projector's HDMI port.
b
Connect the VGA connector to a Computer port on the projector.
gg Related Links
c
Tighten the screws on the VGA connector.
• "Projector Setup Settings - Extended Menu" p.107
d
Connect the audio cable to your video source's audio-out ports.
Connecting to a Component-to-VGA Video Source
e
Connect the other end to the projector's Audio ports.
If your video source has component video ports, you can connect it to the
projector using an optional component-to-VGA video cable. Depending on
your component ports, you may need to use an adapter cable along with a
component video cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
a
a
Connect the component connectors to your video source's color-coded
component video output ports.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
s Signal > Advanced > Input Signal
an adapter, connect these connectors to your component video
a
cable.
gg Related Links

Epson EB-S04 Specifications

General

Native aspect ratio	-
Projection distance	1.77 - 2.4 m
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Projection distance (wide)	0.88 - 10.44 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	- 30 - 30 °
Projector brightness (economic mode)	2100 ANSI lumens
Focus	Manual
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	277 W
Power consumption (economy mode)	207 W
Ethernet LAN (RJ-45) ports	0
Cables included	AC, VGA
Remote control type	IR
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
USB 2.0 ports quantity	2
Pallet width	800 mm
Pallet height	1190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	234 mm
Width	297 mm
Height	77 mm
Weight	2400 g
Package depth	360 mm
Package width	350 mm
Package height	160 mm
Package weight	3829 g
