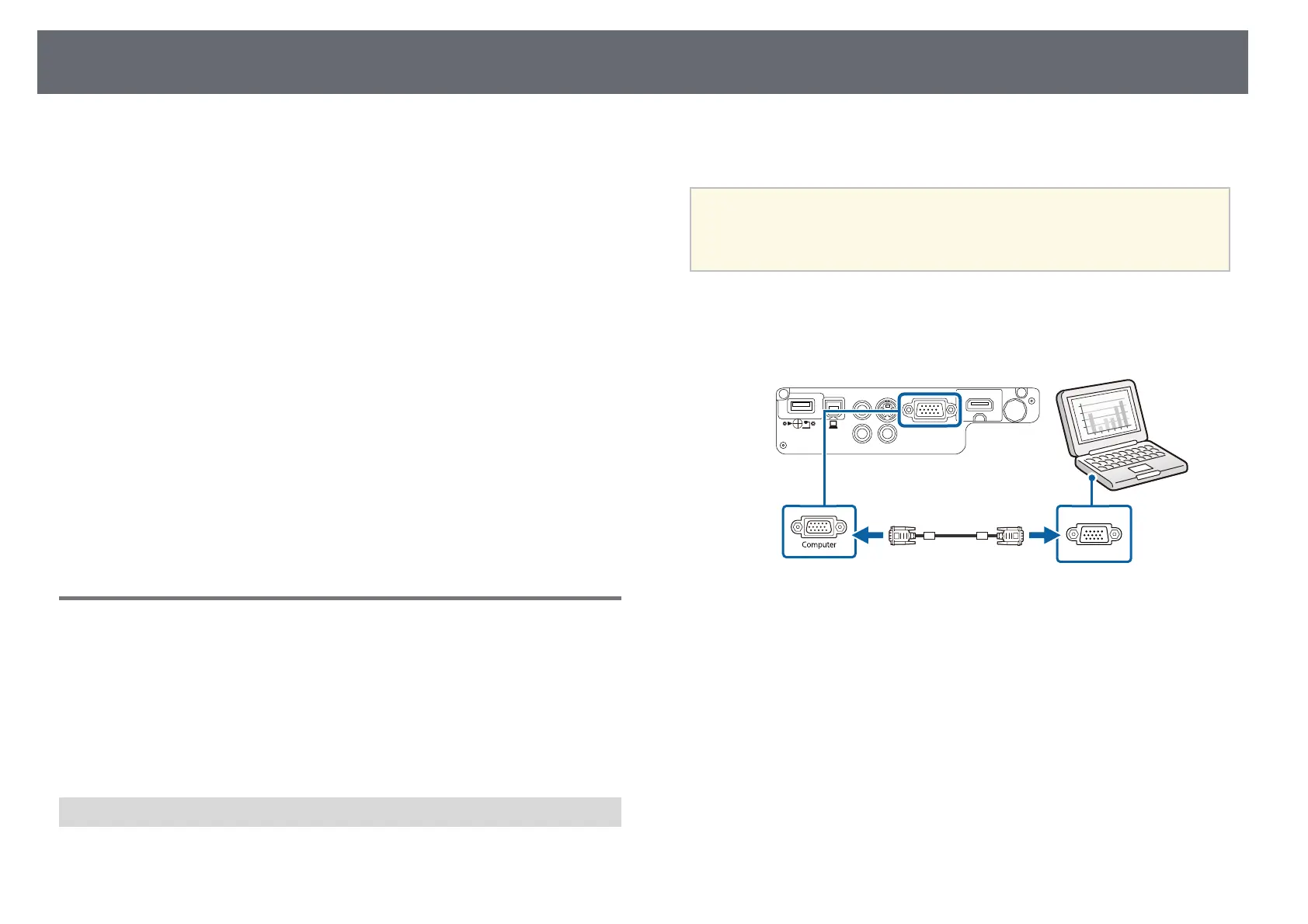

Projector Connections
cable. The VGA computer cable may not be included with your projector.
You can connect the projector to a variety of computer, video, and audio You can play sound through the projector's speaker system by connecting a
sources to display presentations, movies, or other images, with or without commercially available RCA audio cable.
sound.
To connect a Mac that includes only a Mini DisplayPort, Thunderbolt
Illustrations in this section are of EB-W04.
port, or Mini-DVI port for video output, you need to obtain an adapter
a
• Connect a computer that has a USB port, standard video output (monitor)
that allows you to connect to the projector's VGA video port. Contact
Apple for compatible adapter options.port, or HDMI port.
• For video projection, connect devices such as DVD players, gaming
consoles, digital cameras, and smartphones with compatible video output
a
Connect the VGA computer cable to your computer's monitor port.
ports.
• If your presentation or video includes sound, you can connect audio input
b
Connect the other end to a Computer port on the projector.
cables.
• For slide shows or presentations without a computer, you can connect USB
devices (such as a flash drive or camera) or the optional Epson document
camera.
gg Related Links
• "Connecting to a Computer" p.21
• "Connecting to Smartphones or Tablets" p.23
• "Connecting to Video Sources" p.24
• "Connecting to External USB Devices" p.27
• "Connecting to a Document Camera" p.28
Connecting to a Computer
c
Tighten the screws on the VGA connector.
Follow the instructions in these sections to connect a computer to the
d
Connect the audio cable to your laptop's headphone or audio-out jack,
projector.
or your desktop's speaker or audio-out port.
gg Related Links
• "Connecting to a Computer for VGA Video and Audio" p.21
• "Connecting to a Computer for USB Video and Audio" p.22
• "Connecting to a Computer for HDMI Video and Audio" p.23
Connecting to a Computer for VGA Video and Audio
You can connect the projector to your computer using a VGA computer

Epson EB-S04 Specifications

General

Native aspect ratio	-
Projection distance	1.77 - 2.4 m
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Projection distance (wide)	0.88 - 10.44 m
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	- 30 - 30 °
Projector brightness (economic mode)	2100 ANSI lumens
Focus	Manual
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Built-in display	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.26 W
Power consumption (typical)	277 W
Power consumption (economy mode)	207 W
Ethernet LAN (RJ-45) ports	0
Cables included	AC, VGA
Remote control type	IR
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
USB connector type	USB Type-A, USB Type-B
HDMI connector type	Full-size
USB 2.0 ports quantity	2
Pallet width	800 mm
Pallet height	1190 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	234 mm
Width	297 mm
Height	77 mm
Weight	2400 g
Package depth	360 mm
Package width	350 mm
Package height	160 mm
Package weight	3829 g
