Epson FX-870 Service Manual

Principles of Operation
Paper (Continuous)
\
Printhead
Paper Guide Rollers

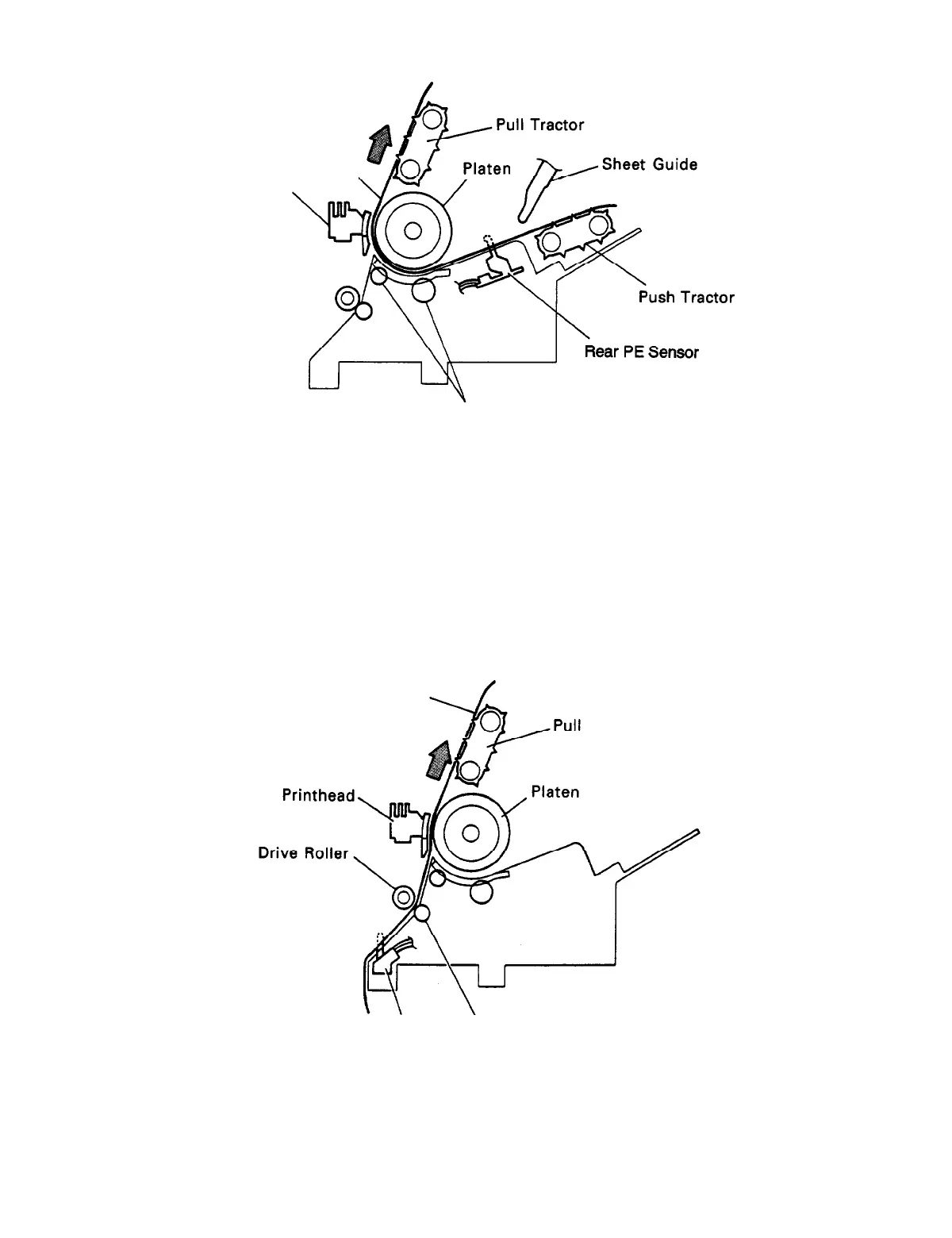

Figure 6-15. Paper Path for Push-pull Tractor Feeding Using the Rear Entrance
Bottom Entrance
Figure 6-16 shows the paper path for tractor feeding using the bottom entrance. The bottom
entrance is used only for pull tractor feeding.
When the bottom entrance is used, the front PE sensor
senses when paper is out.
Paper
Figure 6-16.
Paper Path for Pull Tractor Feeding Using the Bottom
Entrance
Epson FX-870/1170
Tractor
Paper (Continuous)
Front PE Sensor
\
Lower Paper Guide Roller
6-15
