Epson FX-870 Service Manual

Principles of Operation
Front Entrance
-
Figures 6-17 through 6-20 show the paper paths for the front entrance. The front entrance can be
used with any of the following paper feed methods: friction feed, push tractor feed, pull tractor feed,
or push-pull tractor feed. When the front entrance is used, the front PE sensor senses when paper
is out.
Paper (Continuous),
Paper
Paper Tension Roller
Front PE Sensor
\
Lower Paper Guide Roller

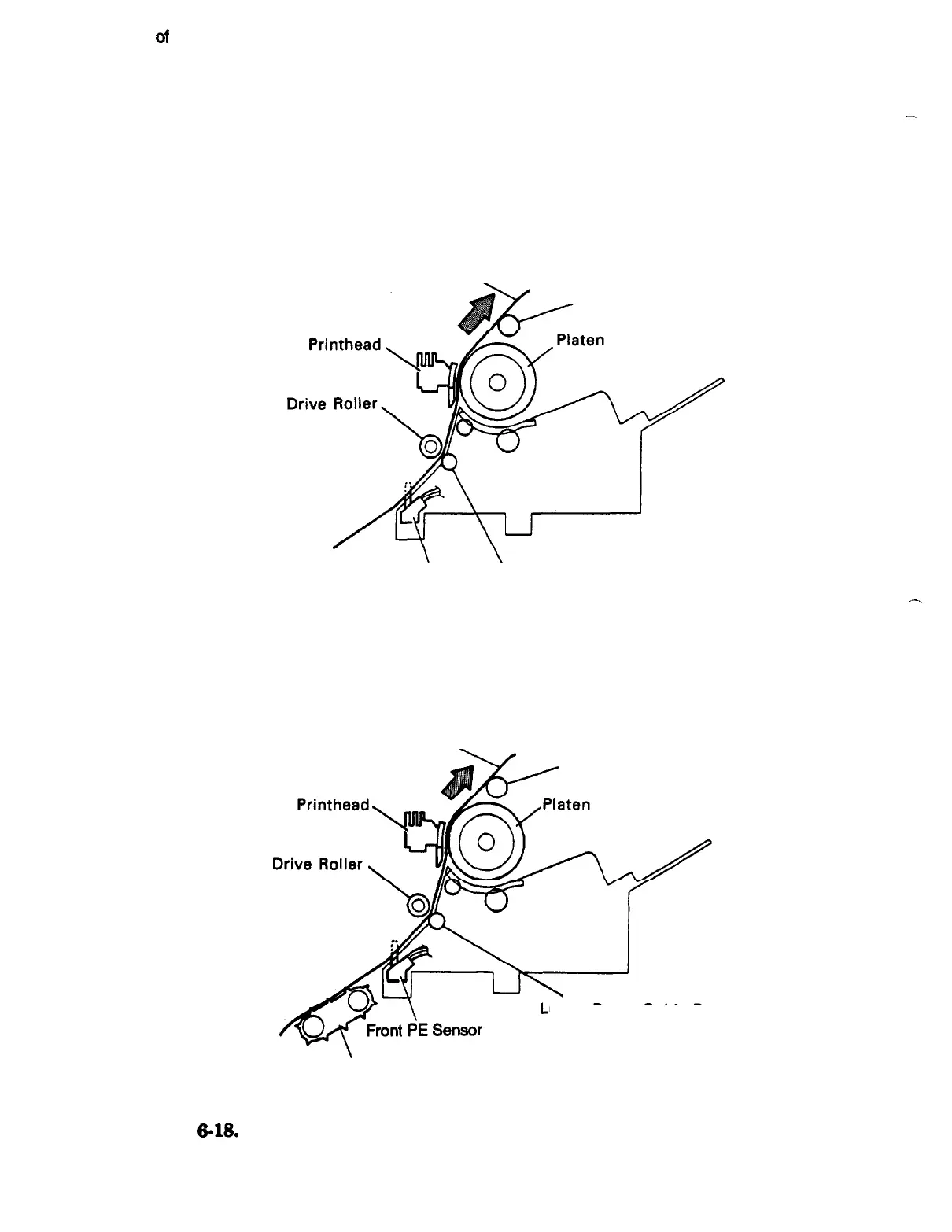

Figure 6-17. Paper Path for Friction Feeding Using the Front Entrance
Paper (Continuous),
Paper
Paper Tension Roller
ower Paper Guide Roller
Push Tractor
Figure 6-18. Paper Path for Push Tractor Feeding Using the Front Entrance
-_
6-16
Epson FX-870/1170
