FX-1180/FX-880 Service Manual
Chapter 3 Troubleshooting
Rev. B
3-
7
3. Printing is faulty during self-test, but carriage operation is normal.
START
Use the correct AC input voltage.
No fluctuation from AC voltage range is
permitted.
NO
YES
Are the fuses F1 on
C229PSB/PSE/PSH blown?
Replace the fuse.
Is the new fuse also blown when
power is turned on again?
Measure the +35V line at pin 7
or 8 of CN2 on
C229PSB/PSE/PSH.
Is output voltage
normal?
Replace the C229
PSB/PSE/PSH.
Measure the +5V line at pin 3 or 4
of CN2 on C229PSB/PSE/PSH.
Is output voltage
normal?
Replace the C229
PSB/PSE/PSH.
Verify each motor and printhead solenoid
resistance,referring to Table 3-1 and Table 3-2.
Are the resistances
normal?
Replace the applied
unit.
Replace the C229MAIN.
END
NO
YES
YES
YES
NO
NO
NO
YES
NO
YES
Is AC input
voltage normal?
120V version: 85 - 138V
230V version: 187 - 276V
Universal Version: 85 - 276V

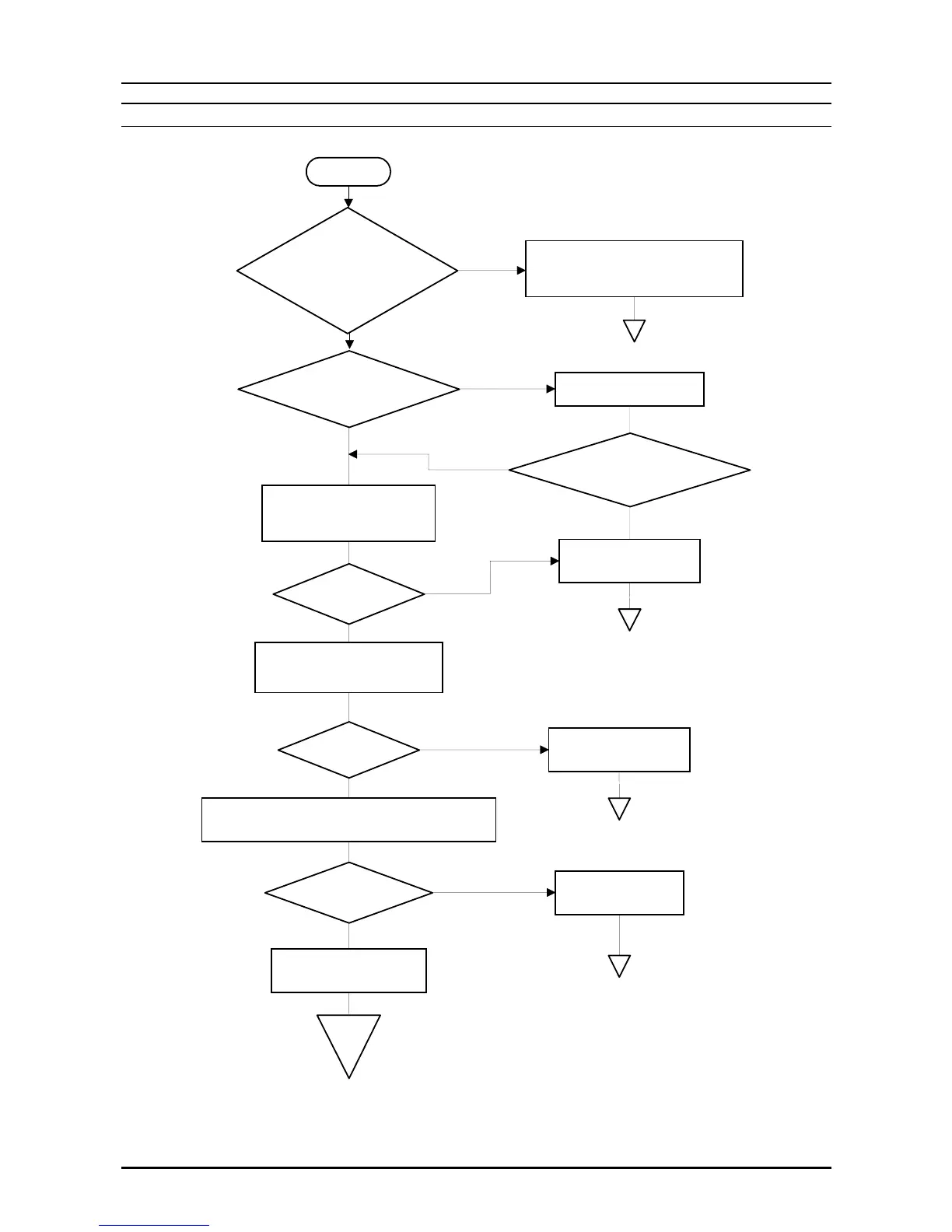

Figure 3-6. Flowchart (3)
