FX-1180/FX-880 Service Manual
Chapter 4 DISASSEMBLY AND ASSEMBLY
Rev. B
4-21
4.2.10.9 Rear Paper Guide Assembly Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Remove the Platen. (See Section 4.2.8.)
3. Remove the hexagon nut and the washer securing the LEVER,G,ADJUST to the
SHAFT,CR,GUIDE, and remove the lever. (See Section 4.2.10.8.)
4. Remove the BUSHING,PARALLEL,ADJUST to turn the SHAFT,CR,GUIDE. (See Section
4.2.10.8.)
5. Remove the PG Detector. (See Section 4.2.10.4.)
6. Remove the harness for HP Detector.
7. Remove 4 CBS (M3 × 8) screws securing the LEFT FRAME in the printer mechanism, and
remove the LEFT FRAME.
8. Remove the Head FFC from the FRAME,REAR in the printer mechanism.
9. Remove 2 CBS (M3 × 8) screws securing the FRAME,REAR to the RIGHT FRAME, and
remove the REAR PAPER GUIDE ASSEMBLY.
10. Push the clip at the bottom of the REAR PAPER GUIDE ASSEMBLY, and slide out the REAR
PAPER GUIDE ASSEMBLY from the REAR FRAME.
C lip
FRAM E,REAR
CBS(M 3 x 8)
CBS(M 3 x 8)
LEFT FR A M E
REAR PAPERG UIDE ASSEM BLY
FRAM E,REAR

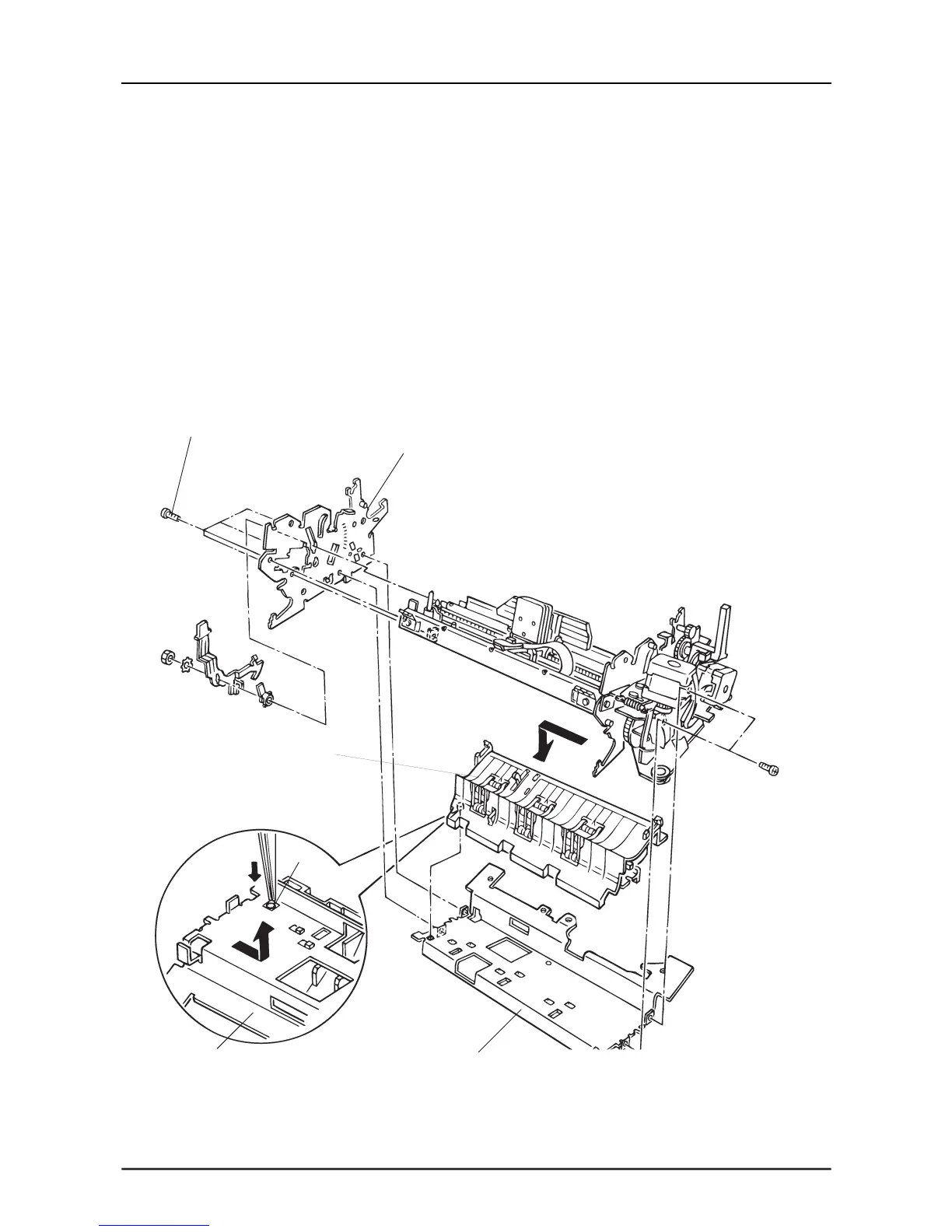

Figure 4-21. REAR PAPER GUIDE ASSEMBLY Removal
