Chapter 4 DISASSEMBLY AND ASSEMBLY
Rev. B
4-1
9
4.2.10.6 Front PE (Paper End) Detector Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Release 2 clips attaching the front PE detector to the REAR PAPER GUIDE ASSEMBLY, and
remove the detector.
3. Disconnect the harness from the detector.
REAR PAPER G UIDE ASSM EBLY
Front PE D etector
C lip

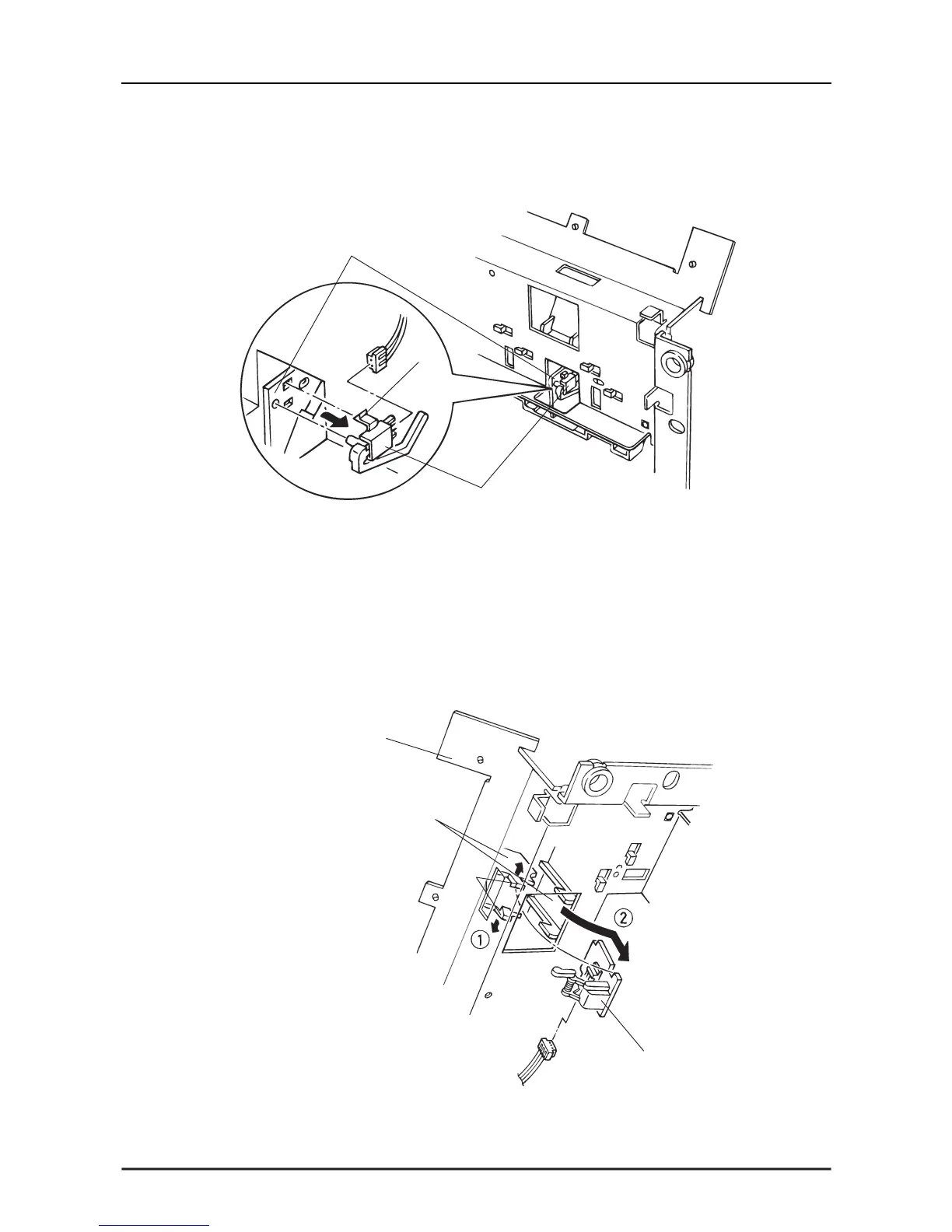

Figure 4-17. Front PE Detector Removal
4.2.10.7 Rear PE Detector Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Hold the printer mechanism horizontally.
3. Release 2 clips securing Rear PE detector to REAR PAPER GUIDE ASSEMBLY. (①)
4. Release 2 notches on the REAR PAPER GUIDE ASSEMBLY securing the detector, and slide
the detector toward rear a little. Then remove the detector by pulling it downward. (②)
5. Disconnect the harness from the detector.
Rear PE Detector
C lip s
REAR PAPER G UIDE ASSEM BLY
FRAM E,REAR
Figure 4-18. Rear PE Detector Removal
