4.2.4 Upper Housing Removal
1. Remove the PAPER GUIDE ASSEMBLY, top cover, front cover, paper eject cover, knob and
tractor unit. (See Section 4.2.3.)
2. Remove 2 CBS (M3 × 6) screws and a CBB (4 × 12) screw securing the upper housing to the
lower case.
3. Set the release lever to the friction feed side.
4. Opening the front side of the upper housing a little, disconnect the Panel FFC from the
connector in the panel assembly.
5. Opening the front side of the upper housing a little, release 2 hooks securing the panel
assembly to the upper housing at the front bottom side of the upper housing. Then remove
the panel.
6. Open the upper housing from the front side, and remove it .
Upper Housing
R elease Lever
SHEET,RELASE,CAP
CBB(4 x 12)
CBS(M 3 x 6)
Panel Assem bly
Low er C ase
Panel FFC
Panel FFC
CBS(M 3 x 6)

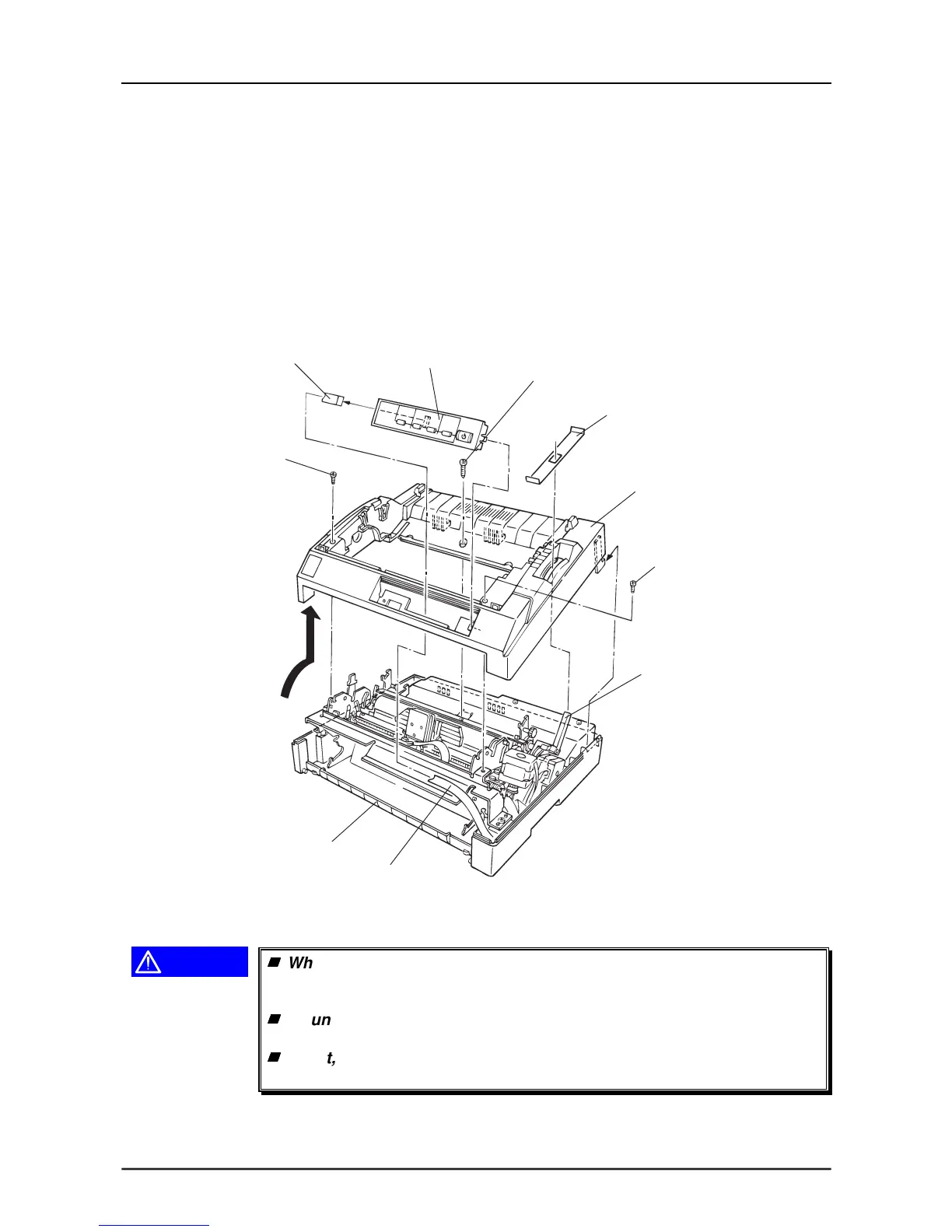

Figure 4-5. Upper Housing Removal
CAUTION


When assembling the upper housing, put the hooks in the upper
housing on the catching holes at the rear side of the lower case at
first, then close the housing.


Mount the Panel assembly onto the upper housing before installing
the upper housing assembly.


Sheet, Release, Cap can be assembled after the upper housing
assembly is installed.
