4.2.1 Printhead Removal
1. Remove the top cover.
2. Remove 2 CBS (M3 × 8) screws attaching the printhead to the carriage assembly.
3. Disconnect the head FFC from the printhead and remove it.
WARNING
Before disassembling or assembling the printhead, disconnect the
power supply cable from the AC power socket. Failure to do so might
cause personal injury.
Be careful with the printer when you handle it, as it may be very hot
right after printing.
$'-8670(17
After replacing the printhead, perform the platen gap adjustment. (Refer
to Chapter 5.)
C B S (M 3 x 8)
Head FFC
Printhead

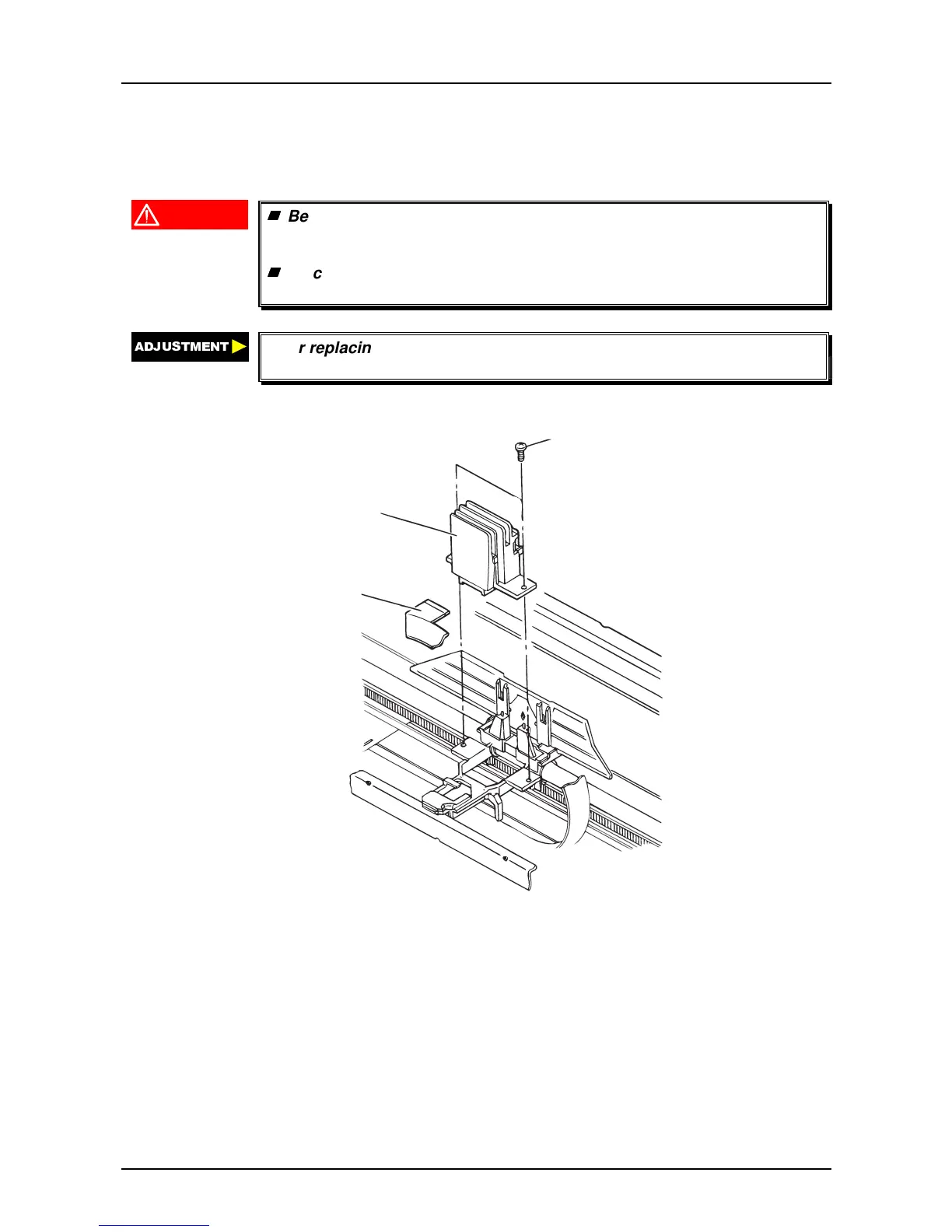

Figure 4-2. Printhead Removal
