FX-1180/FX-880 Service Manual
Chapter 4 DISASSEMBLY AND ASSEMBLY
Rev. B
4-1
8

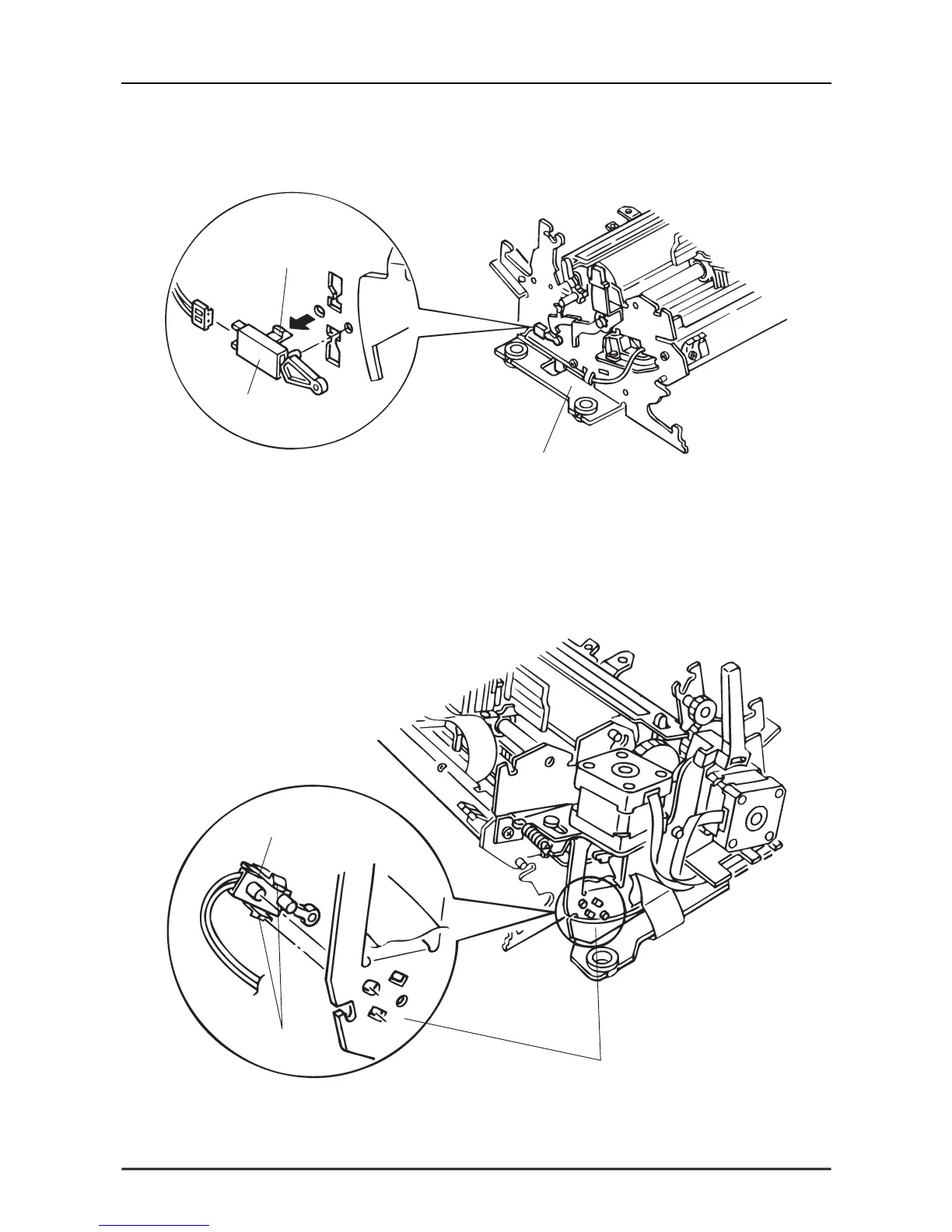

4.2.10.4 PG (Platen Gap) Detector Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Release 2 clips attaching the PG detector to the LEFT FRAME in the printer mechanism, and
remove the detector.
LEFT FR A M E
Clip
P G D e te c to r
Figure 4-15. PG Detector Removal
4.2.10.5 Release Detector Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Release 2 clips attaching the Release detector to the FRAME,SUB,RIGHT in the printer
mechanism, and remove the detector.
R elease Lever D etector
FRAM E,SUB,RIGHT
Clips
Figure 4-16. Release Detector Removal
