FX-1180/FX-880 Service Manual
Chapter 4 DISASSEMBLY AND ASSEMBLY
Rev. B
4-
7
4.2.3 Pre-disassembly Procedures
1. Remove the PAPER GUIDE ASSEMBLY, top cover, front cover, paper eject cover, knob and
tractor unit.
Tractor Unit
Paper E ject C over
PAPER G UIDE ASSEM BLY
Knob
Front C over
Top C over

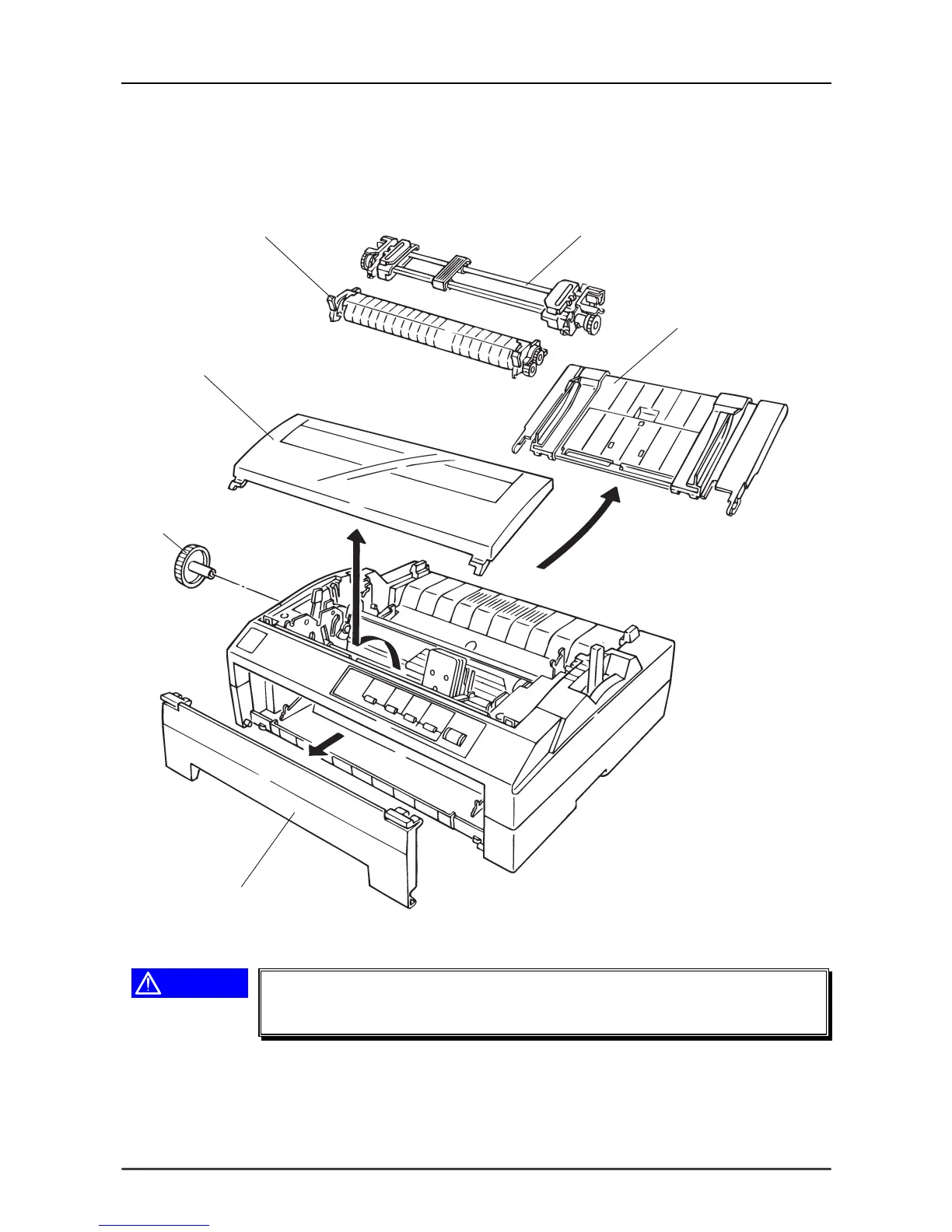

Figure 4-4. Pre-Desassembly
CAUTION
Remove the paper eject cover and the tractor unit by pushing and
releasing the hooks at the both sides. When remounting them, be sure
to snap these hooks on the projecting parts.
