FX-1180/FX-880 Service Manual
Chapter 4 DISASSEMBLY AND ASSEMBLY
Rev. B
4-1
6
4.2.10.2 PF Motor Removal
1. Remove the printer mechanism. (See Section 4.2.9.)
2. Release the motor harness from the printer mechanism.
3. Set the release lever to the vertical (Rear Push tractor) or forward (Push tractor) position.
4. Remove 2 CBS (M3 × 8) screws securing the PF motor to the FRAME,SUB,RIGHT, and
remove the PF motor.
CAUTION
If the release lever is set to the Friction feeding position, PF motor is
not released.
P F M o to r
CBS(M 3 x 8)
FRAM E,SUB,RIGHT
R elease Lever P osition
M otor H arness

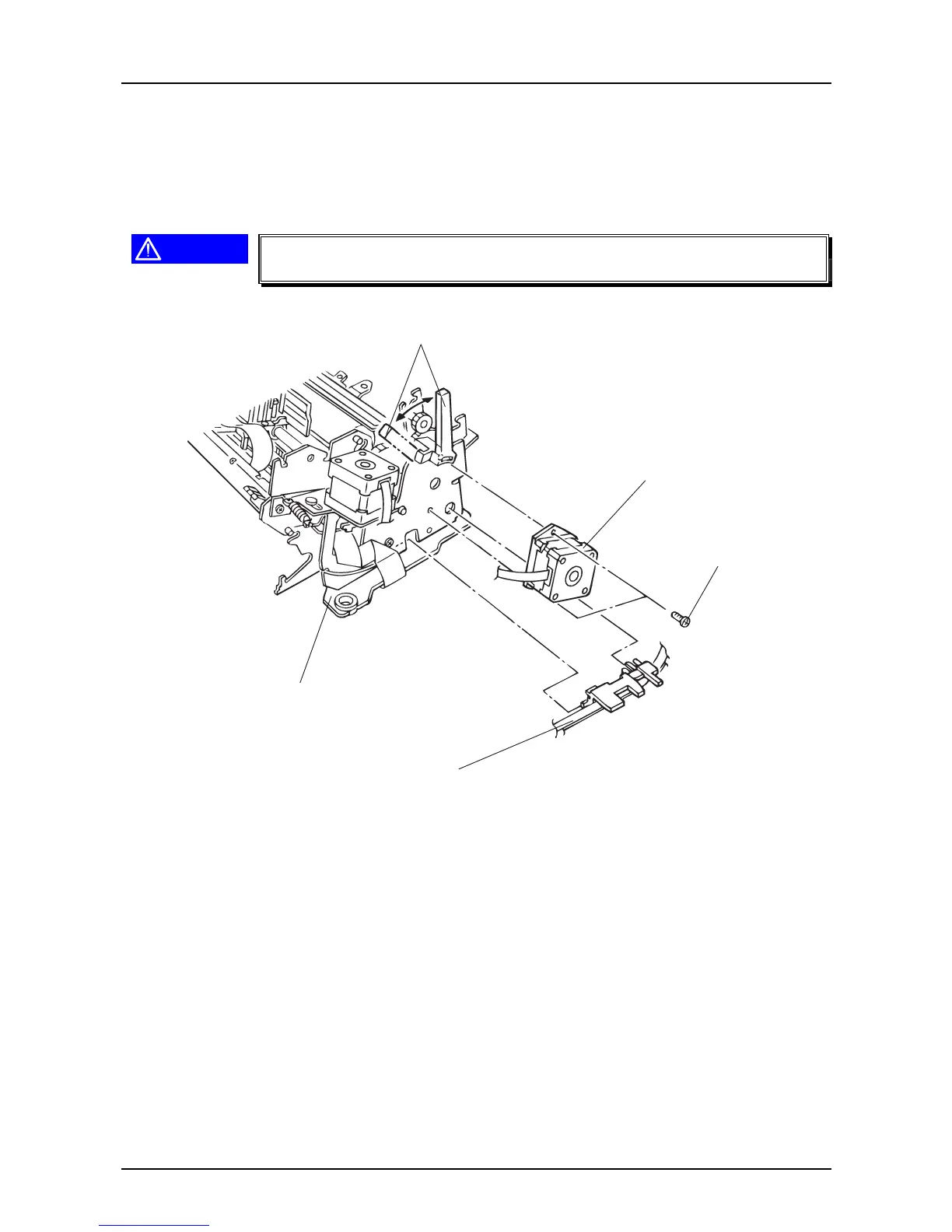

Figure 4-12. PF Motor Removal
