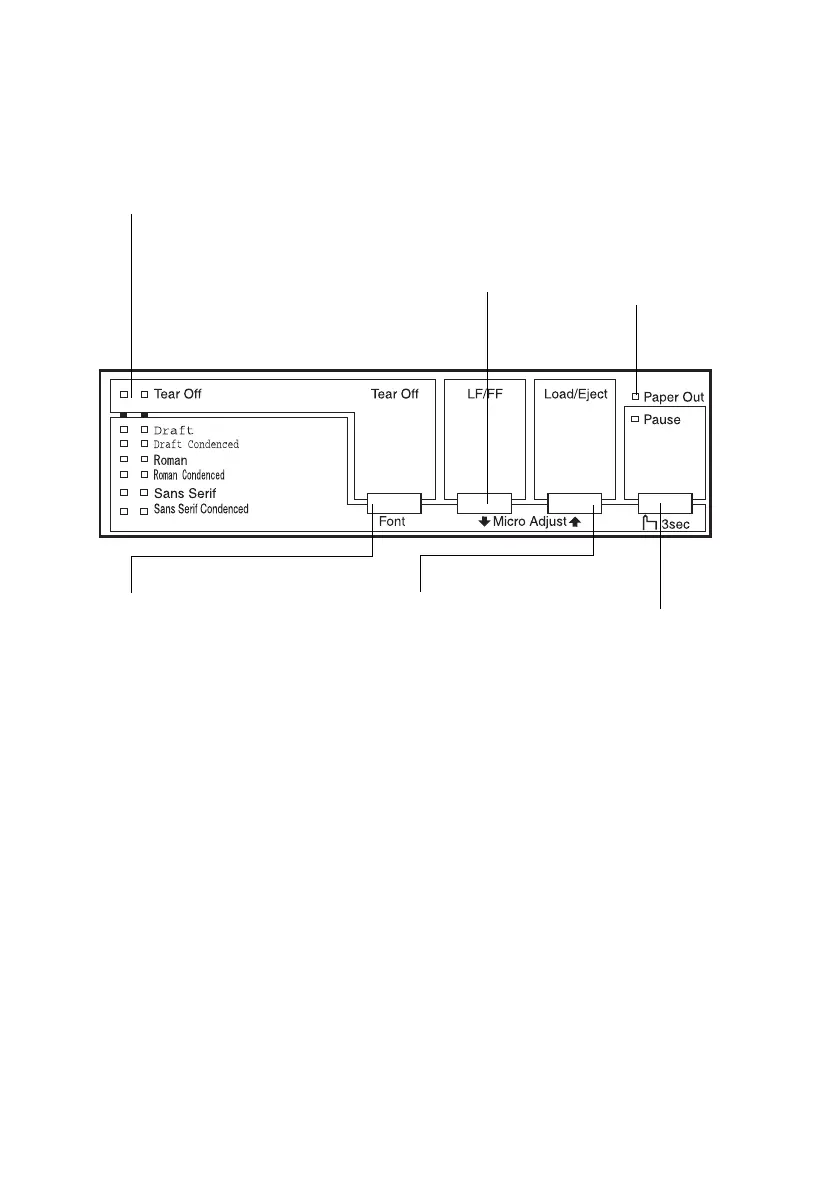

Control Panel Buttons and Lights
Tear Off button**
●
Advances continuous paper to the
tear-off position.
●
Feeds continuous paper backward
from the tear-off position to the top-
of-form position.
*Micro Adjust mode
When you hold down the Pause button for three seconds, the
printer enters the micro adjust mode. In this mode, you can
press the LF/FF
D
and Load/Eject
U
buttons to adjust the top-
of-form or tear-off position. See Chapter 2, “Using the Printer.”
**Font select
In Micro Adjust mode, you can select the font to use for
printing by pressing the Tear Off button. The Tear Off lights turn
on, off or flash to indicate the selected font.
Pause button
Stops printing temporarily,
and resumes printing
when pressed again.
When pressed for three
seconds, turns on the
micro adjust mode.* To
turn off, press again.
Pause light
●
On when the printer is
paused.
●
Flashes when the
printer is in the micro
adjust mode.*
●
Flashes when the print
head has overheated.
Paper Out light
●
On when no paper is
loaded in the
selected paper
source or paper is not
loaded correctly.
●
Flashes when paper
has not been fully
ejected or a paper
jam has occurred.
LF/FF button
●
Feeds paper line by
line when pressed
and released.
●
Ejects a single sheet
or advances
continuous paper to
the next top-of-form
position when held
down.
Load/Eject button
●
Loads a single sheet of
paper.
●
Ejects a single sheet of
paper if a sheet is
loaded.
●
Loads continuous paper
from the standby
position.
●
Feeds continuous paper
backwards to the
standby position.
Tear Off lights**
● f f
when continuous paper is in the
tear-off position, otherwise the lamps
indicate the selected font.
