Epson LX-300+ User Manual

1
Setting Up the Printer 1-11
R4C4610
Rev. C
A5 size SETUP.FM
6/28/00 Pass 3
R
Proof Sign-off:
SEI Y.Ohkawara K.Kono
K.Kono
SEI M.Kauppi
Running the Self Test
The built-in self test function demonstrates that the printer is
working properly. You can run the test with either continuous
paper or single sheets; this section describes the easier way, with
single sheets.

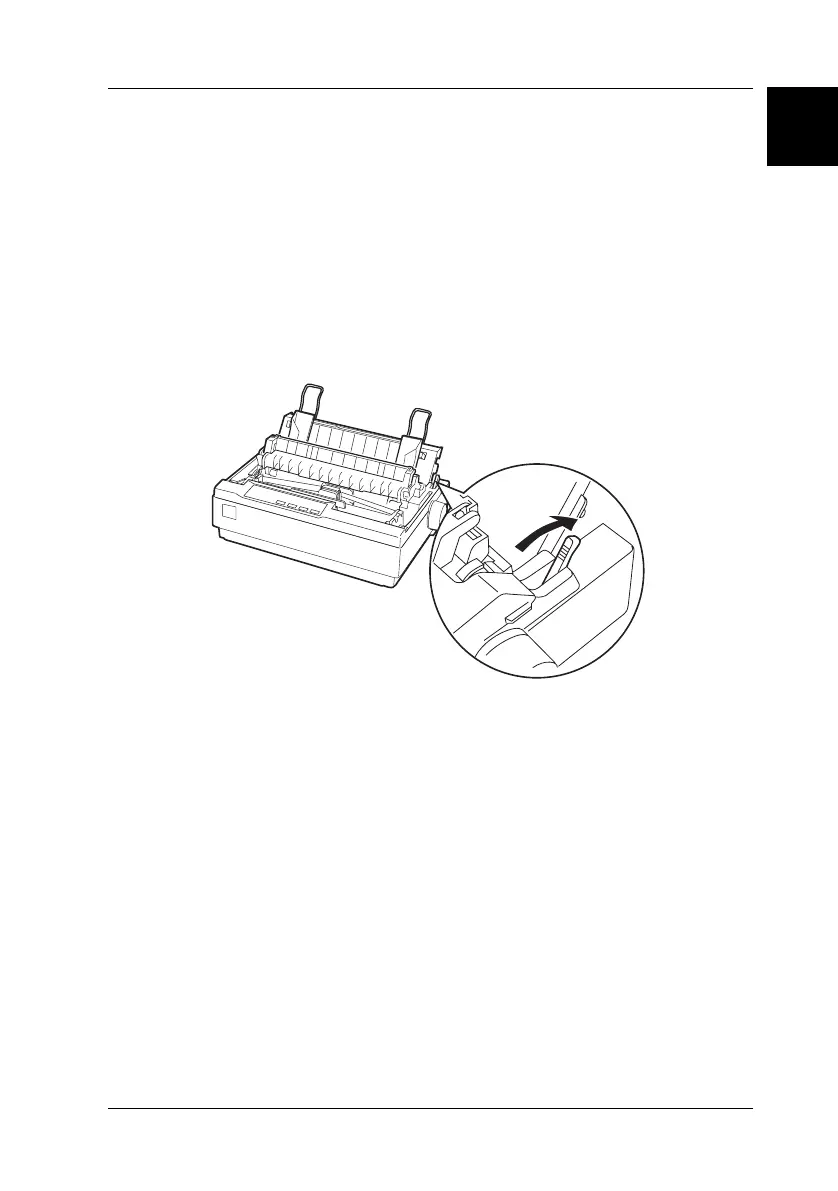

1. Make sure the printer is turned off and the paper-release lever
is pushed back to the single-sheet position, as shown below.
Raise the paper guide upright.
c
Caution:
You should use paper at least 210 mm or 8 1/4 inches wide
to run the self test; otherwise, the print head prints directly
on the platen.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
