Epson LX-300+ - Page 45

2-12 Using the Printer
R4C4610
Rev. C
A5 size USING.FM
6/28/00 Pass 3
L
Proof Sign-off:
SEI Y.Ohkawara K.Kono
K.Kono
SEI M.Kauppi

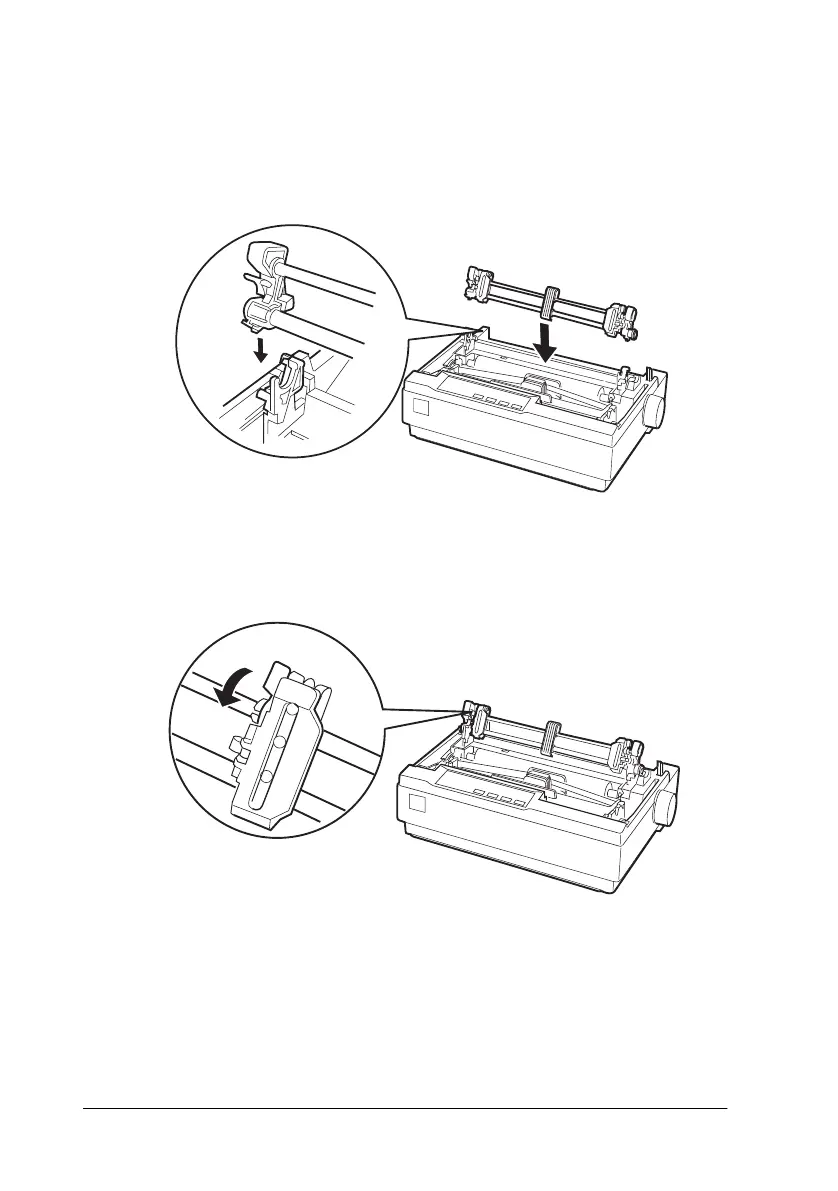

3. Move the tractor forward to the mounting slot at the top of
the printer and tilt it into place as shown below. When you
push the tractor onto the posts, you should feel the notches
snap into place.
4. Release the sprocket units by pulling the sprocket locks
forward.
