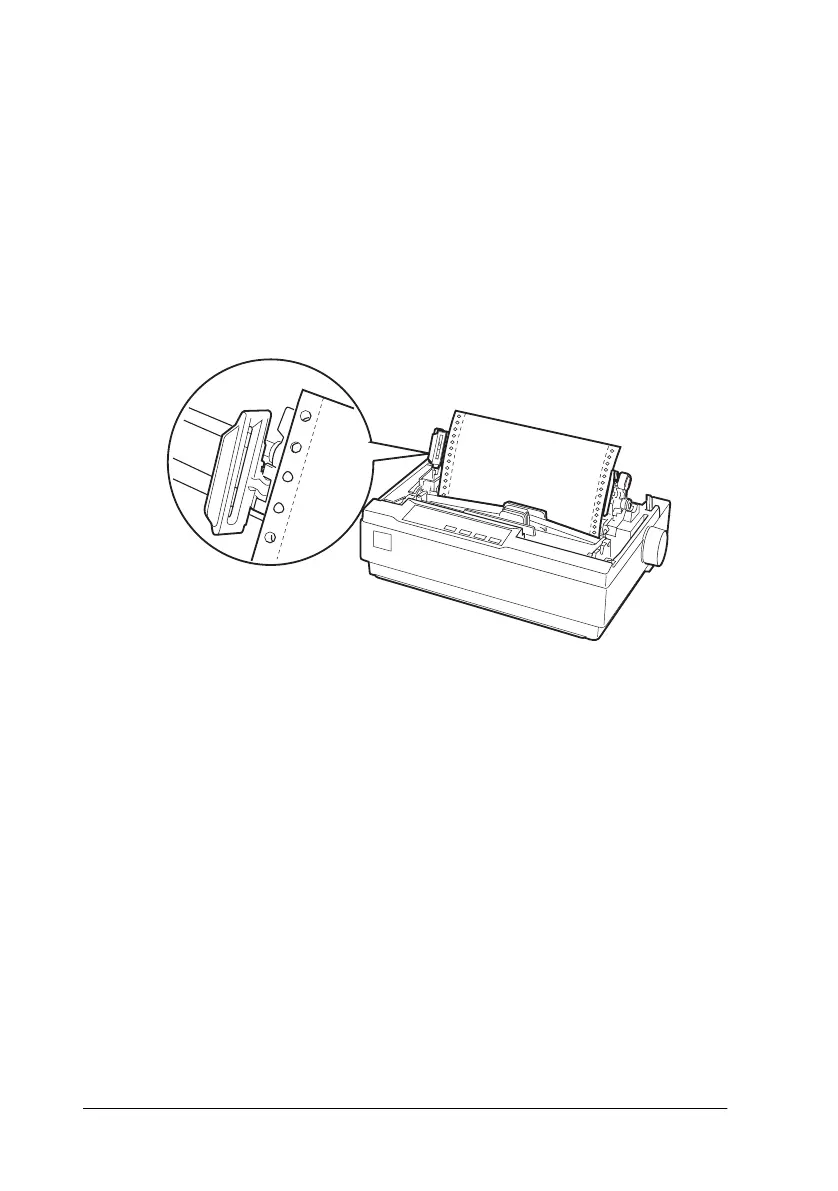

7. Make sure your paper has a clean, straight leading edge. Open
the sprocket covers. Fit the first holes of the paper over the
sprocket pins and then close the sprocket covers. Slide the
right sprocket unit to remove any slack in the paper and lock
it in place.
Note:
Remove any remaining slack by gently pulling the paper from the
rear or bottom.
8. To separate the incoming paper from the printed paper, attach
the paper guide. Hold it horizontally and fit its notches over
the printer’s mounting posts. Then slide the paper guide
toward the back of the printer until you feel it click.
9. Slide the left edge guide to the center until it stops at the guide
mark; slide the right edge guide to the opposite guide mark.
10. Attach the printer cover and adjust the paper position with
the paper-feed knob. Turn the knob until the perforation
between pages is just above the print head. Then turn on the
printer.
11. Make sure the printer cover is closed. When the printer
receives data, it begins printing automatically.
