5. Press the
LF/FF
D
button to move the top-of-form position up
on the page, or press the
Load/Eject
U button to move the
top-of-form position down on the page.
Note:
❏
The printer has a minimum and a maximum top-of-form
position. If you try to adjust it beyond these limits, the printer
beeps and stops moving the paper.
❏
When the paper reaches the default top-of-form position, the
printer also beeps and stops moving the paper briefly. You can
use the default position as a reference point when adjusting the
top-of-form position.

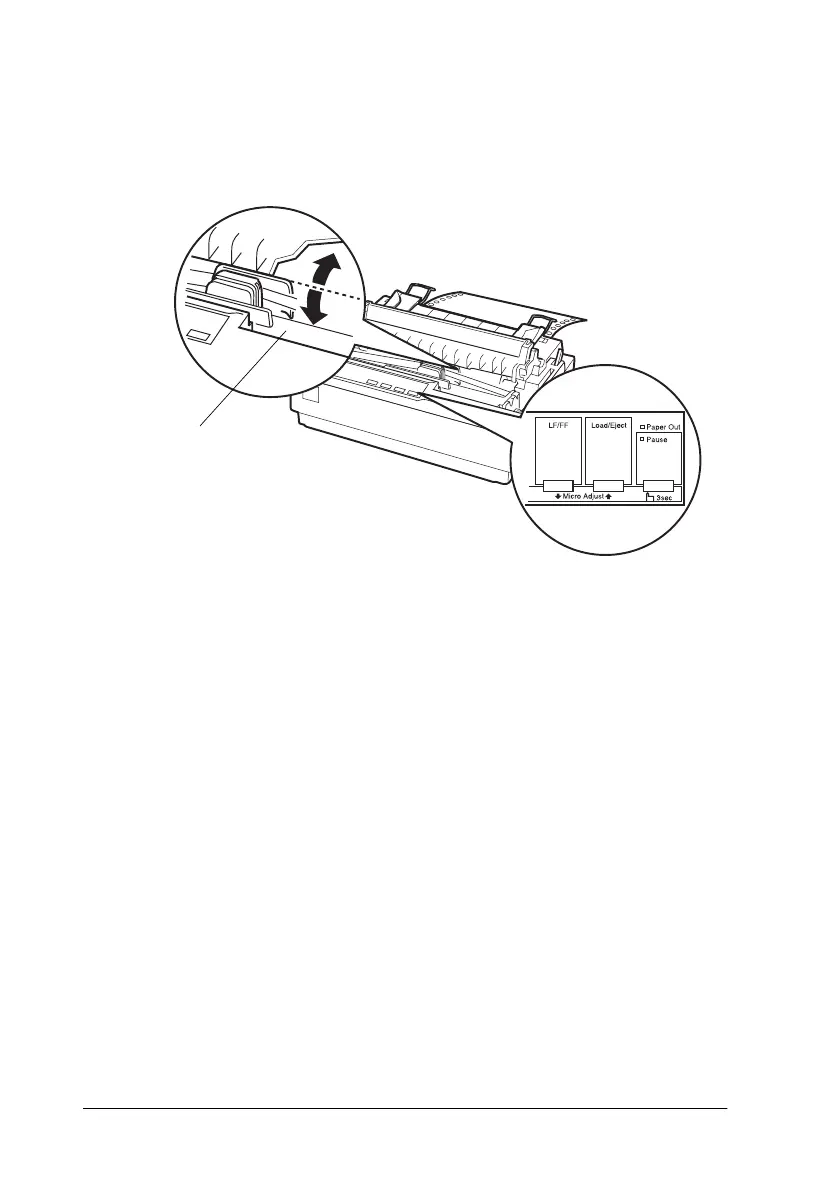

To adjust the top-of-form position for continuous paper
loaded on the pull tractor, see the following example:
plastic ribbon cover
