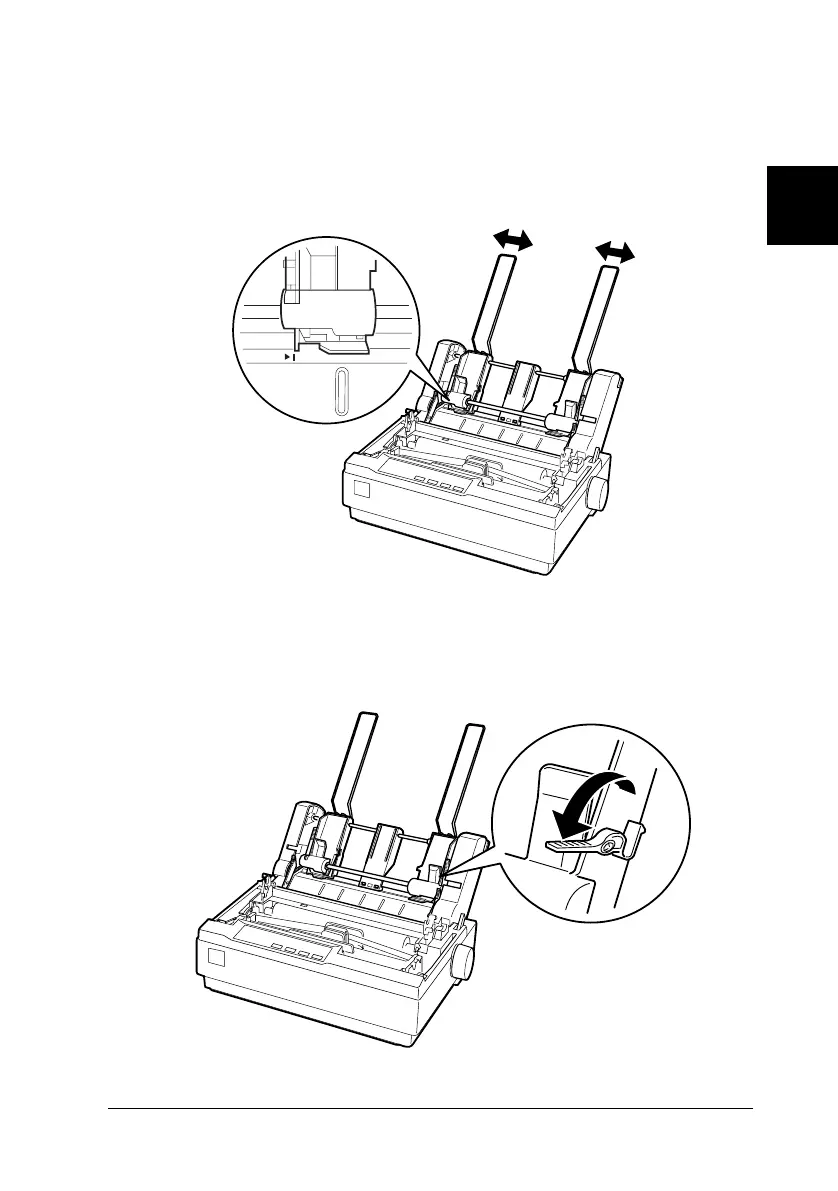

5. Slide the left paper guide so it is aligned with the triangle
mark. Next, slide the right paper guide to roughly match the
width of your paper. Slide the paper support midway
between the paper guides.
6. Pull the paper-set levers all the way forward until the paper
guides retract and lock open to allow for paper loading.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
