4. Release the sprocket lock levers of the pull tractor and adjust
the sprocket units to match the width of the paper. Be sure
that the sprocket units on both tractors are aligned so that the
paper is not crooked.
5. Open the sprocket covers. Fit the holes of the paper over the
tractor pins of the sprocket units and adjust the sprocket units
as necessary. (See “Printing on Continuous Paper” on page
2-5.) Close the sprocket covers.

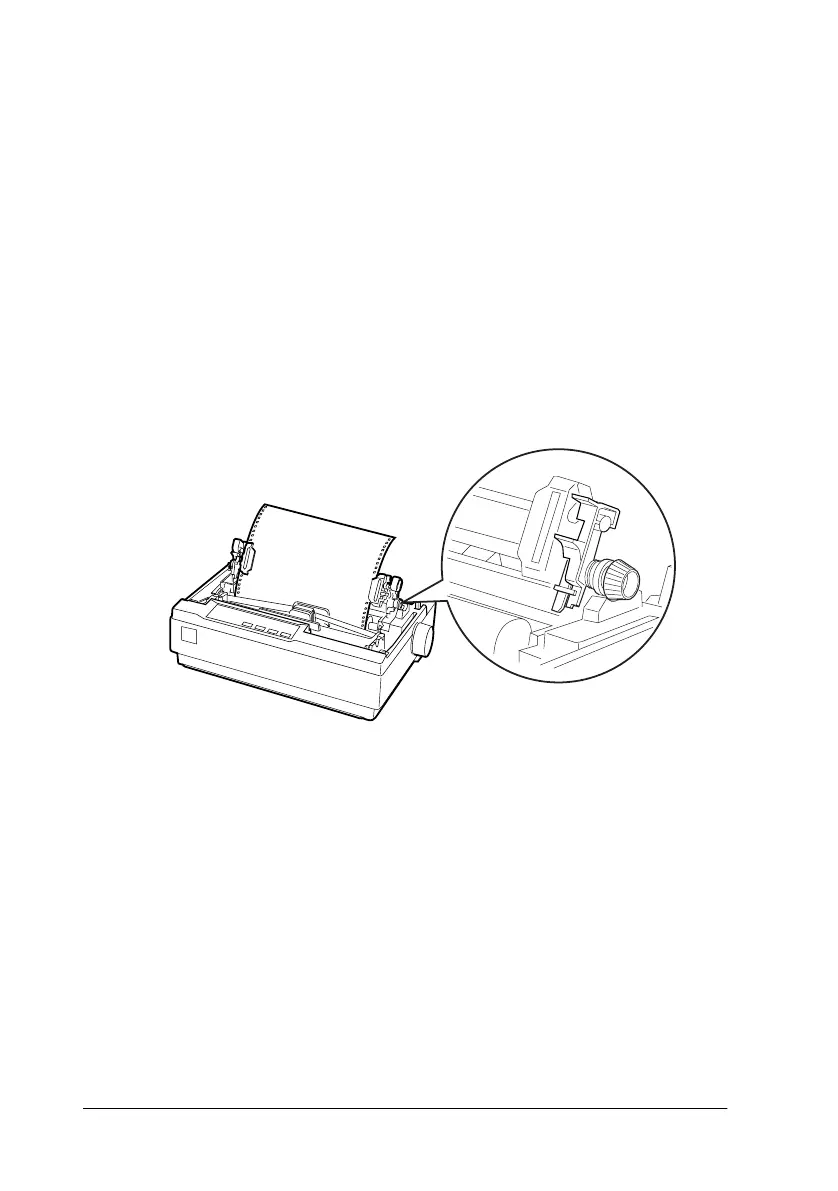

6. If there is slack in the paper between the push and pull
tractors, turn the knob on the left side of the pull tractor to
remove the slack.
7. See that the paper is not crooked or wrinkled and lock the
sprocket units in place.
8. Re-install the printer cover and the paper guide.
