Epson LX-300+ User Manual

3-4 Using the Printer Software
R4C4610
Rev. C
A5 size SOFTWARE.FM
6/28/00 Pass 3
L
Proof Sign-off:
SEI Y.Ohkawara K.Kono
K.Kono
SEI M.Kauppi

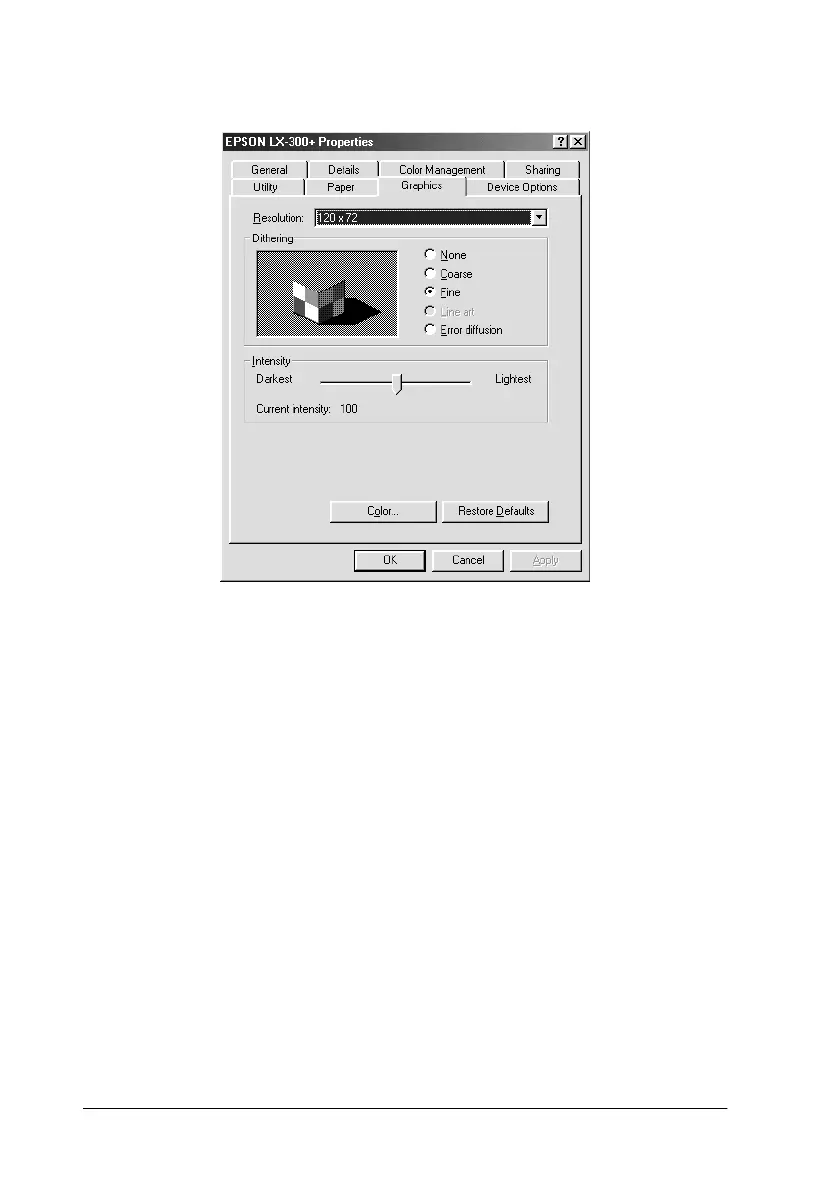

Graphics menu
❏ Resolution Click the printing resolution you
want. The higher the resolution you
select, the more detailed your printout
will be; however, increasing the
resolution slows printing.
❏ Dithering You can leave this option set to
Fine
,
which is the default setting, or select
another dithering pattern depending
on the kind of printout you want. The
display to the left of the dithering
options shows the effect of your
selection.
❏ Intensity Move the slider to make your printout
lighter or darker.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
