Epson RC700 Series Maintenance Manual

Maintenance 7. Option Parts Replacement Procedures
44 RC700 Series Maintenance Rev.3
(8)

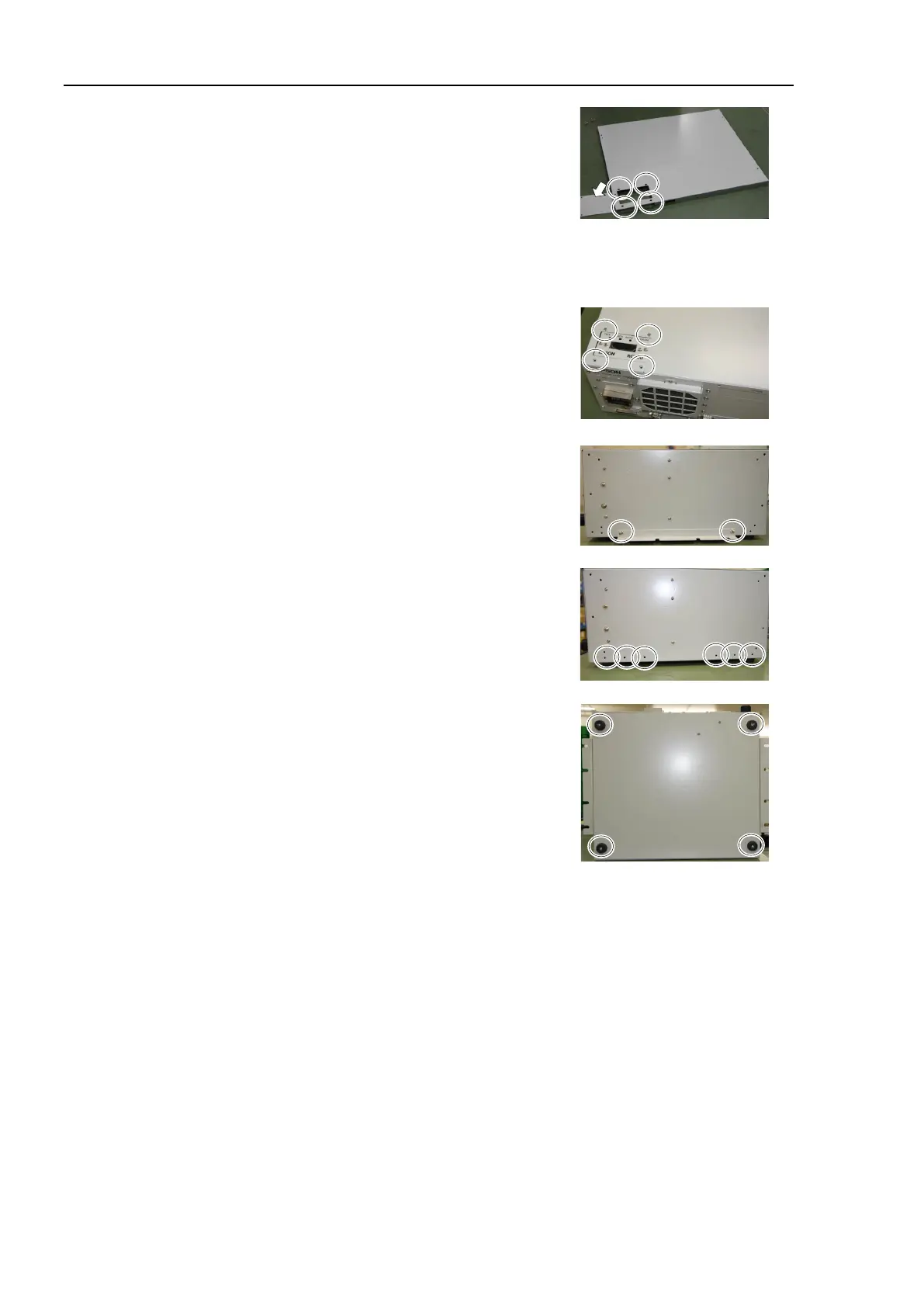

Remove the plate from the Top Cover.
(Mounting screw
×4)
The
removed plate is not necessary when using this option.
The plate may be needed when the installation type is changed.
Please keep the plate for future use.
(9)
Mount the Top Cover.
(Mounting screw
×6)
(10)
Fix the Top Cover to the LED DISPLAY FIXING
PLATE.
(Mounting screw
×4)
(11)
Mount the WALL
FIXING BRACKET.
(Mounting screw
×2 on both sides)
The bracket has 6 screw holes.
There are three ways of
installation.
(12)
Remove the rubber hoot on the Controller
’s back side.
(Mounting screw
×4)
The removed rubber foot is not necessary when using this option.
The rubber foot may be needed when the installation type is changed.
Please keep the rubber foot for future use.
(13)
Mount the Controller to the wall. (Mounting screw
×8 M5 × 8 mm or longer)
Tightening torque 80 to 110 N·cm

NOTE

NOTE

NOTE

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
