Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
58 RC700 Series Maintenance Rev.3
DMB
Installation
(1)

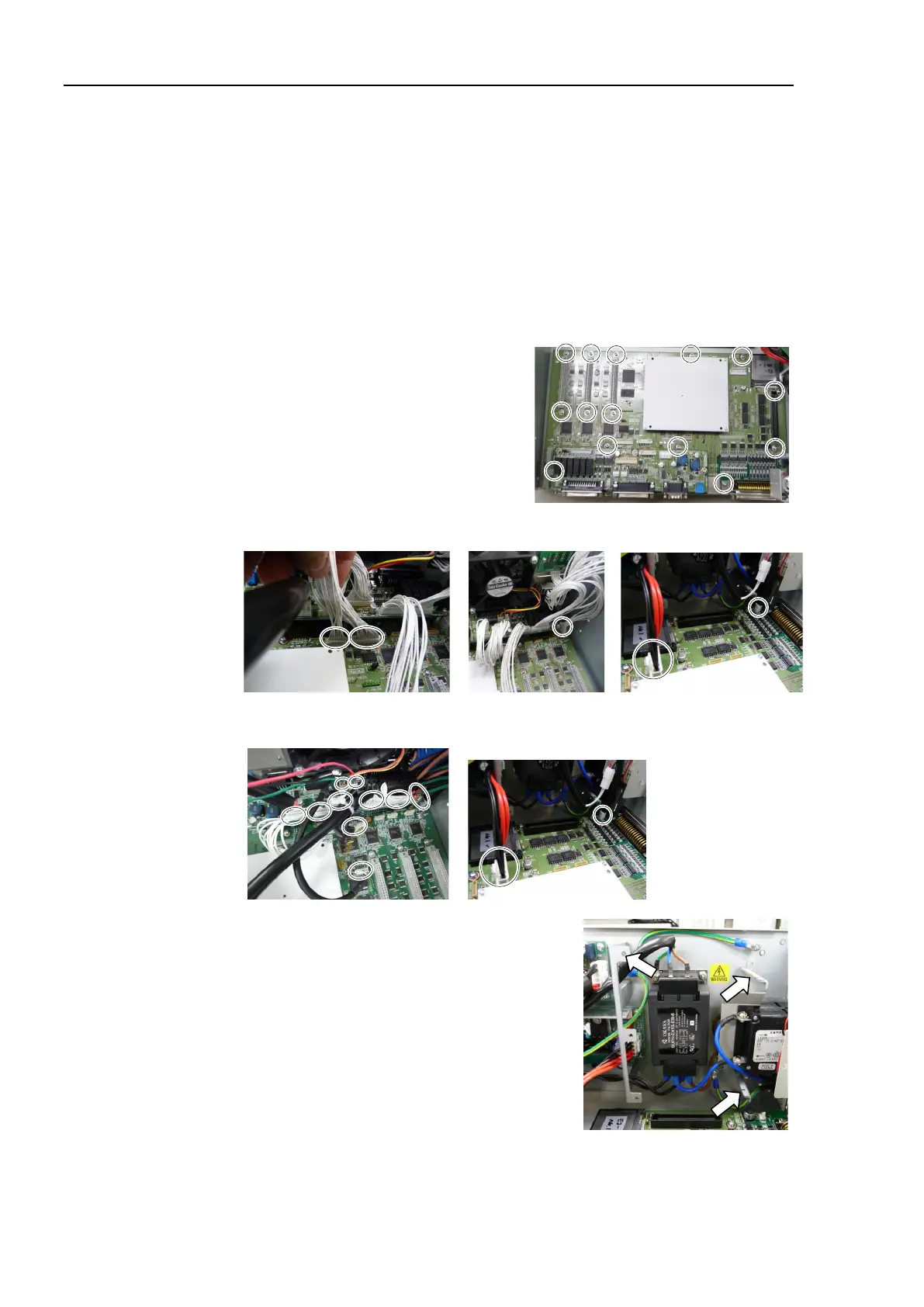

Install the DMB
-SUB board to the new DMB. (Mounting screw ×3)
(2)
Install the plate
that secures the connectors on the front side to the DMB and the DMB-
SUB boards.
(3)
Insert the DMB into the chassis.
At this point, be careful not
to touch the chassis and other parts.
(4)
Mount the fan.
Refer to 8.2 Fan.
(5)
Tighten the DMB mounting screw (
×14).
(6)
RC700:
Connect the five connectors to the DMB.
RC700
-A: Connect the twelve connectors to the DMB.
(7)
Mount the fixing plate of the
DMB-OPTION board.
