Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
RC700 Series Maintenance Rev.3 59
(8)

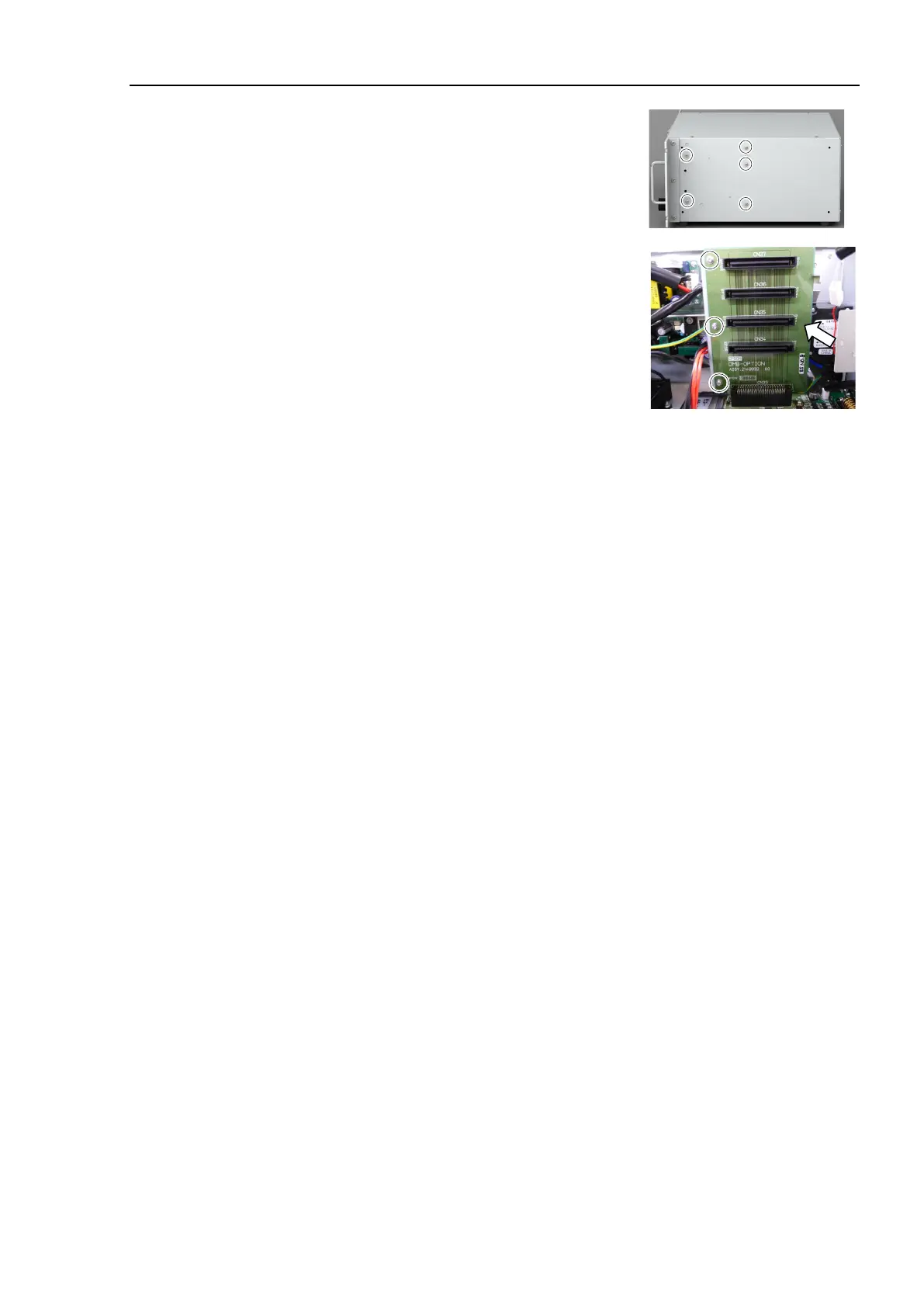

Mount the five screws on the side of the chassis.
(9
)
Mount the DMB
-OPTION board.
(Mounting screw ×3)
(10
)
Mount the MDB.
Refer to
8.5 MDB.
(11
)
Install the cables to
the following connectors.
M/C Signal Connector EMERGENCY Connector
TP Connector USB Connector
USB Memory Ethernet Connector
I/O Connector RS-232C Connector
R-I/O Connector DU OUT Connector
(12
)
Mount the Top Panel. (Mounting screw
×6)
(13
)
Connect the power plug
. Turn ON the Control Unit and make sure that the
Controller
starts properly without any vibration or abnormal noise.
