14. How to use

RX4111CE Jump to Top / Bottom
ETM62E-02 Seiko Epson Corporation 44
51) EVF bit (Event Flag)
When event occurs, a Time stamp is performed, and EVF is set.
Table 51 EVF bit (Event Flag)
EVF
Data
Description
Write
0

1
Ignored
Read
0
Specified interrupt events are not detected.
1
Event occasion is detected.
(The result is retained until this bit is cleared to zero.)
Note: EVF is not set by SPI-Bus command trigger
2) EIE bit (Event Interrupt Enable)
Control of /INT interrupt output when an event occurs (EVF,"0""1").
Table 52 EIE bit (Event Interrupt Enable)
EIE
Data
Description
Write
0
1) When an event interrupt event 
( Hi-z)
2) When an event interrupt event occurs, the interrupt signal is canceled.
(/INT status changes from low to Hi-z)
1
When an event /INT status
changes from Hi-z to low
3) OVW bit (Over Write)
Control of 
Table 53 OVW bit (Over Write)
OVW
Data
Description
Write
0
The recording is stopped with 8-time stamps, and it is not overwritten.
1
Overwrite available

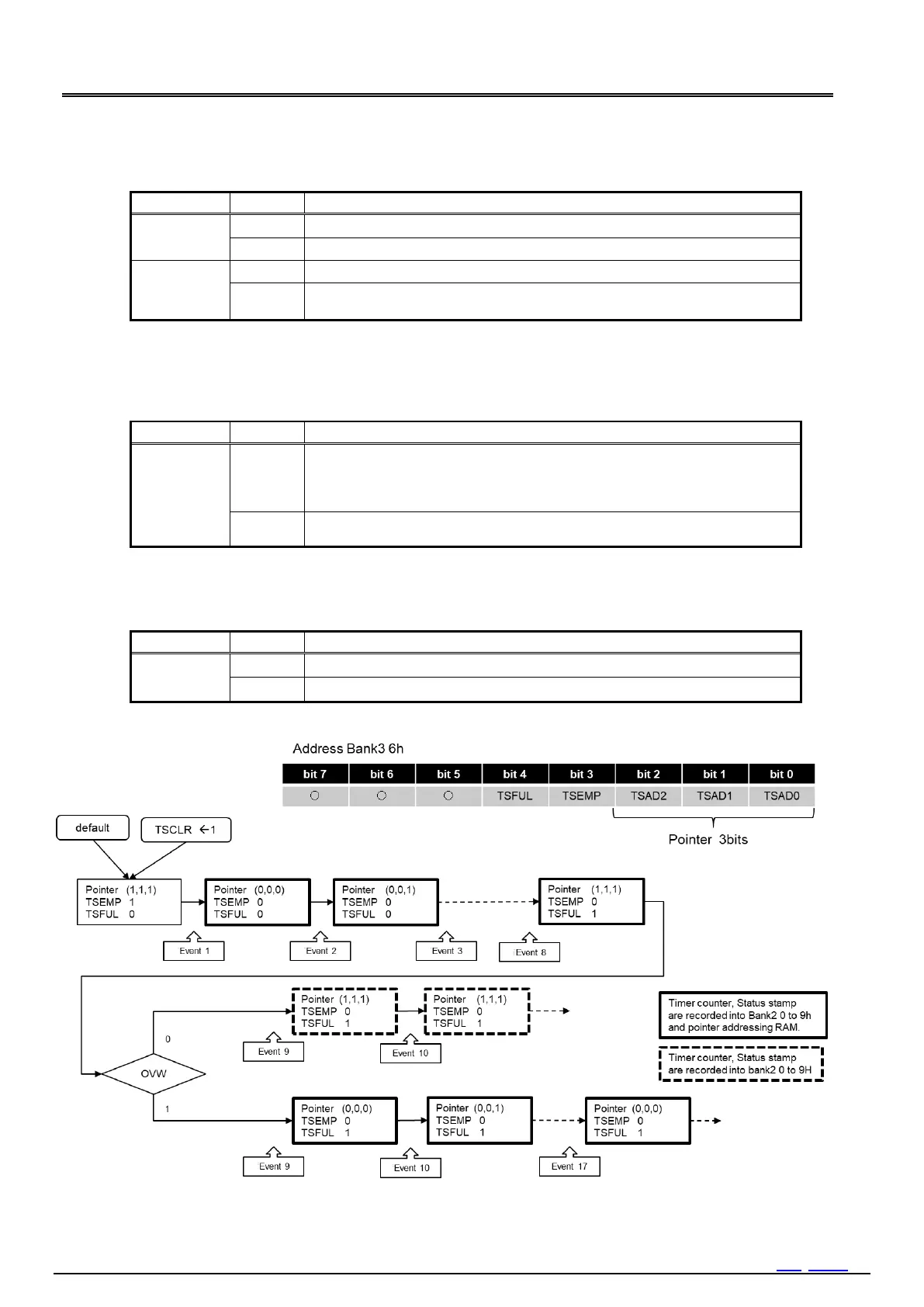

Figure 34 OVW, pointer operation
