14. How to use

RX4111CE Jump to Top / Bottom
ETM62E-02 Seiko Epson Corporation 48
6h
Time Stamp
Control 3
z
z
z
TSFUL
TSEMP
TSDA2
TSDA1
TSDA0

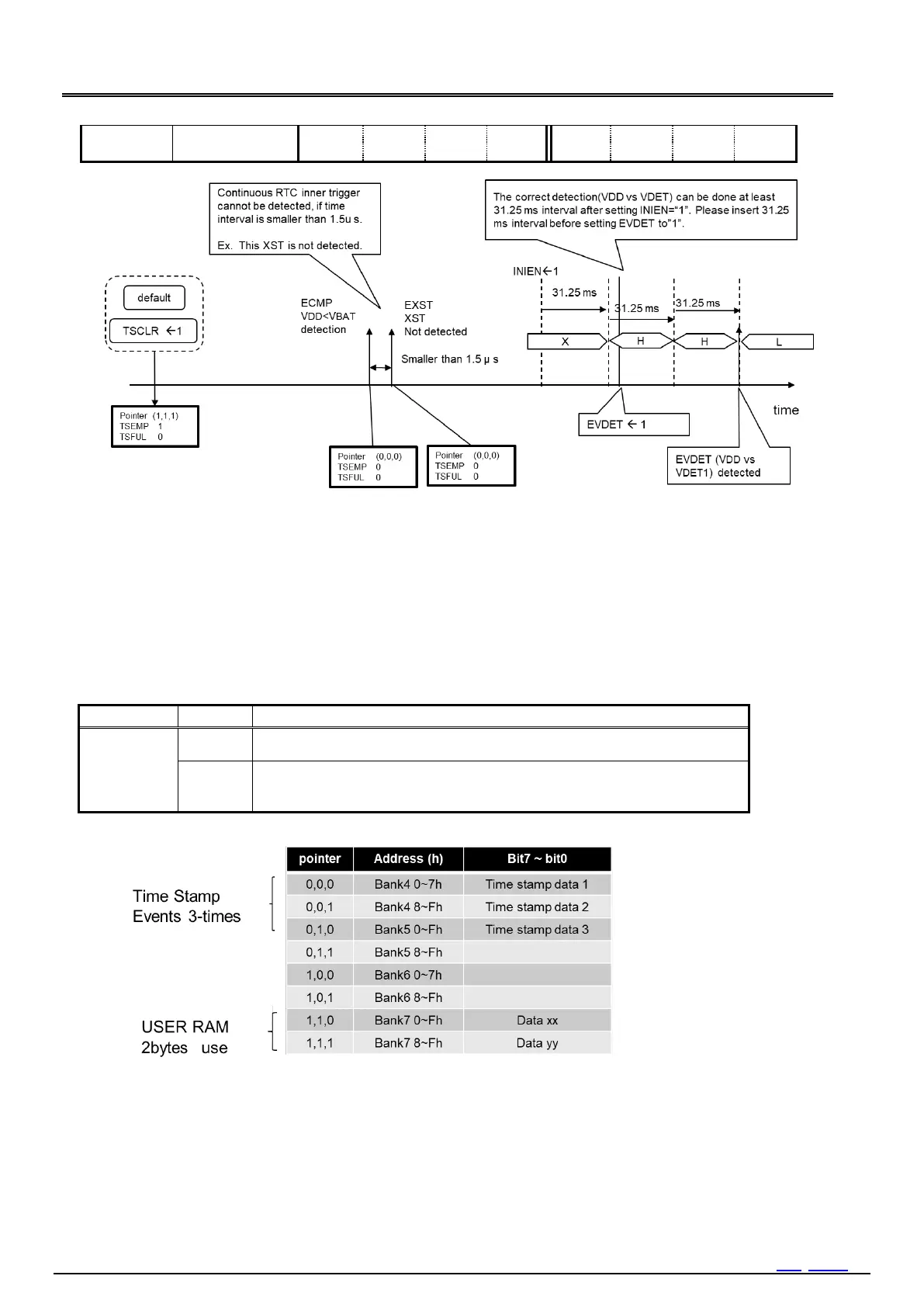

Figure 37 Careful timing process for VDET, XST time stamp
14.8.7. Multiple Time Stamp
By using following registers, user can record time stamp maximum 8-times.
Multiple timestamp related register
Multiple time stamp operation is possible by setting the following registers.
1/1024 seconds and WEEK information are not recorded in the recording area of Bank4  Bank7.
1) TSRAM bit (Time Stamp RAM)
Selection of time stamp recording area or USER RAM.
Table 63 TSRAM bit (Time Stamp RAM)
TSRAM
Data
Description
Write
0
It can read and write as USER RAM.
Time stamp data is recorded only at addresses Bank2 0h to 8h.
1
Bank4 to Bank7 is used as the time stamp recording area.
To clear the time stamp data, write 0 directly to the recording area by SPI-Bus
access.
When TSRAM = 1, the first time stamp is recorded in both Bank2 0h  8h and Bank4 0h  7h.
Figure 38 Mixed usage of USER RAM and Time stamp RAM
