Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 158
SE Group Confidential (Related Staff Only)
s

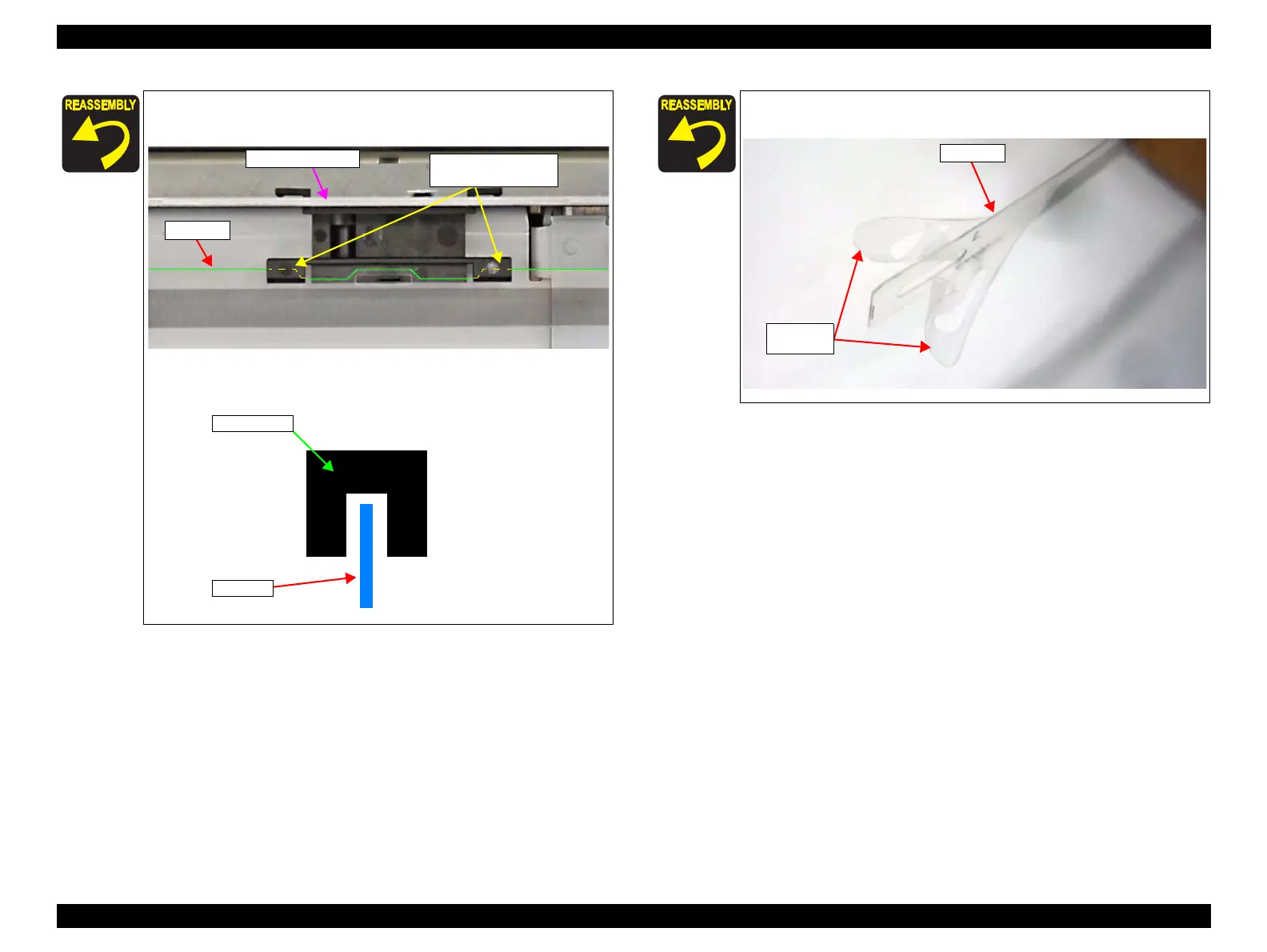

 Make sure to attach the CR Scale to the CR Scale Holder as
shown.
 Make sure the CR Scale can run through the slit of the CR
Encoder.
CR Scale Holder
CR Scale
Rouge the scale
behind these portions
CR Scale
CR Encoder
 If protection films are applied on both sides of the new CR
Scale, peel them off before installation.
Protection
film
CR Scale
