Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 236
SE Group Confidential (Related Staff Only)
3.4.8 Roll Unit
3.4.8.1 Roll Unit
1. Remove the nine screws, and remove the Roll Unit.
A) Special screw: 9 pcs

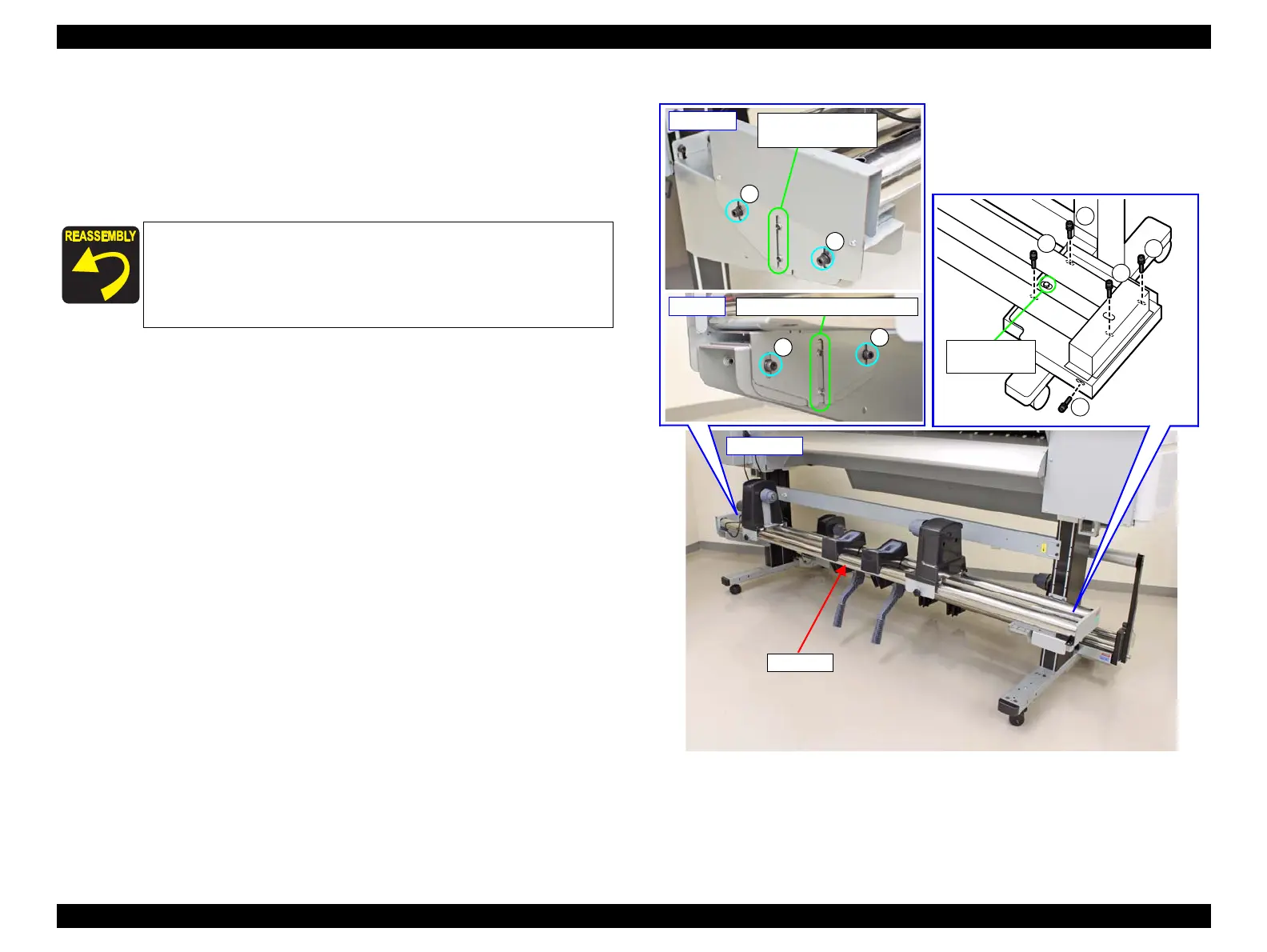

Figure 3-189. Removing the Roll Unit
When installing the Roll Unit, confirm the following.
 On the right side of the Roll Unit, insert the dowels on the
frame into the positioning grooves on the Roll Unit.
 On the left side of the Roll Unit, insert the dowel on the frame
into the positioning hole on the Roll Unit.
A
A
- Inside -
Dowels and positioning groove
A
A
- Outside -
Dowels and
positioning groove
A
A
Positioning
hole and dowel
A
A
A
Roll Unit
- Rear side -
