Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 210
SE Group Confidential (Related Staff Only)
3.4.6 Paper Feed Mechanism
3.4.6.1 Media Loading Lever
1. Move the Media Loading Lever to the front side, and set it to the “Hold” position.
2. Remove the two screws, and remove the Media Loading Lever.
A) Silver M4x8 S-tite screw: 2 pcs

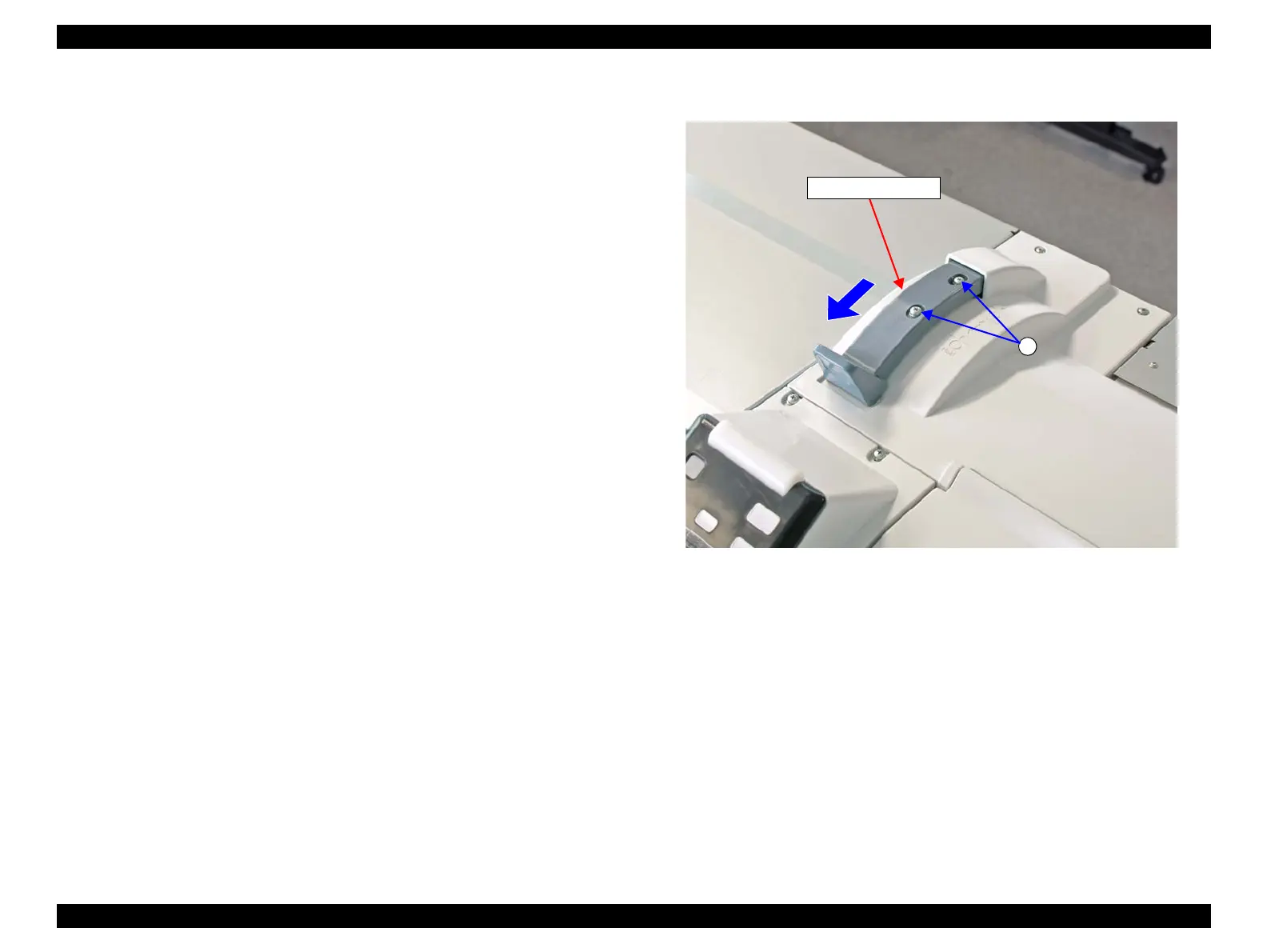

Figure 3-156. Removing the Media Loading Lever
A
Media Loading Lever
