4.11.3 Nozzle Check
PAPER USED
 Size: 16 inches length or longer
 Type: Premium Glossy Photo Paper (250)
EXECUTION MODE
Normal Mode
PROCEDURE
1. Load the paper into the printer.
2. Turn the printer ON.
3. Start the Service Program and select Nozzle Check.
4. Select Nozzle Check Pattern Print or Alignment Check Pattern Print, and
click [Run].
The selected check pattern is printed.
5. Examine the patterns for any missing segments, broken lines, or misaligned lines.
6. If any of the above symptoms is observed, run the cleaning and print the pattern
again to see if the problem is solved.
7. Click [Finish].
8. Turn the printer OFF.

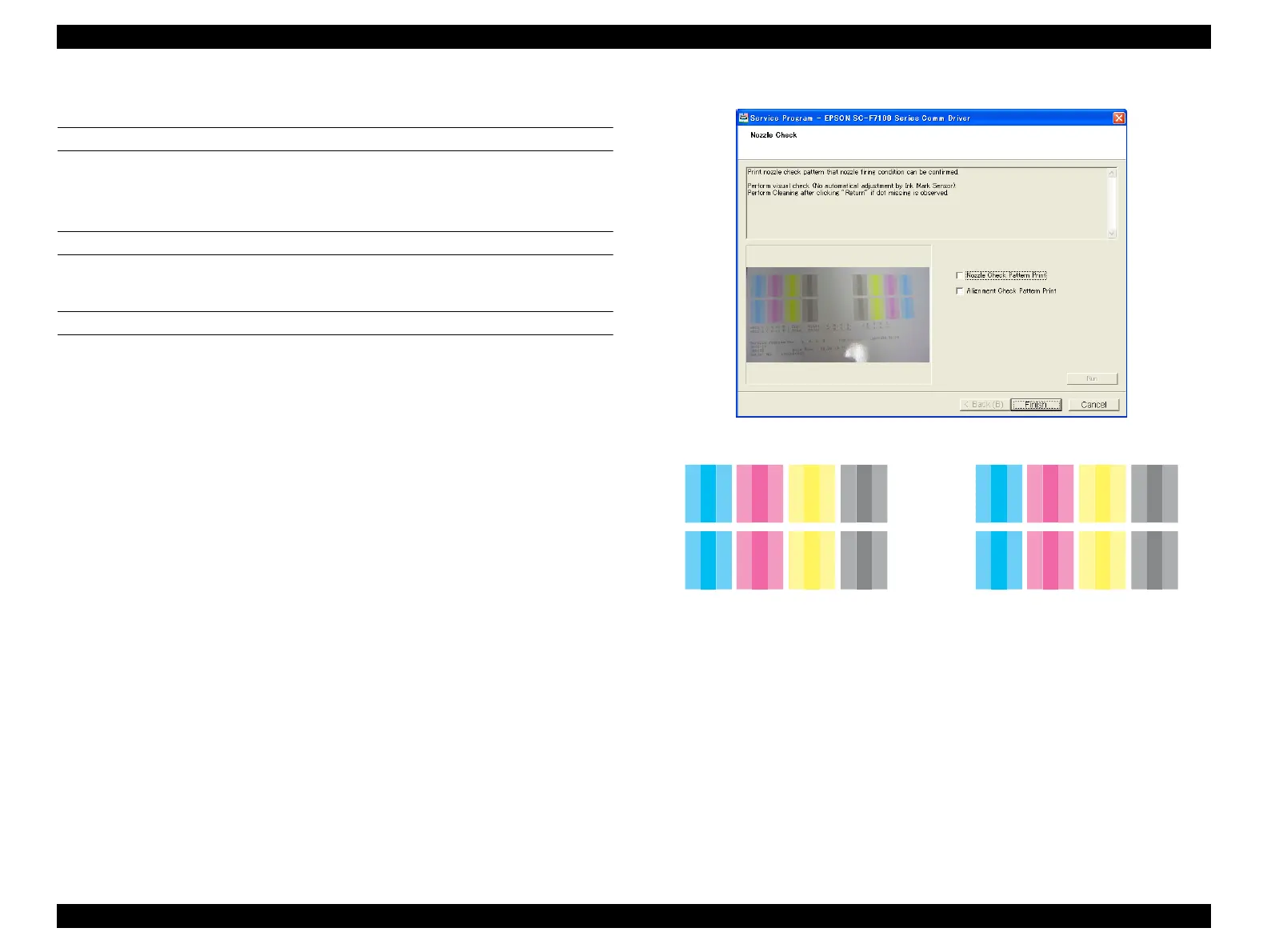

Figure 4-32. [Nozzle Check] Screen
Figure 4-33. Nozzle check pattern
