Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 160
SE Group Confidential (Related Staff Only)

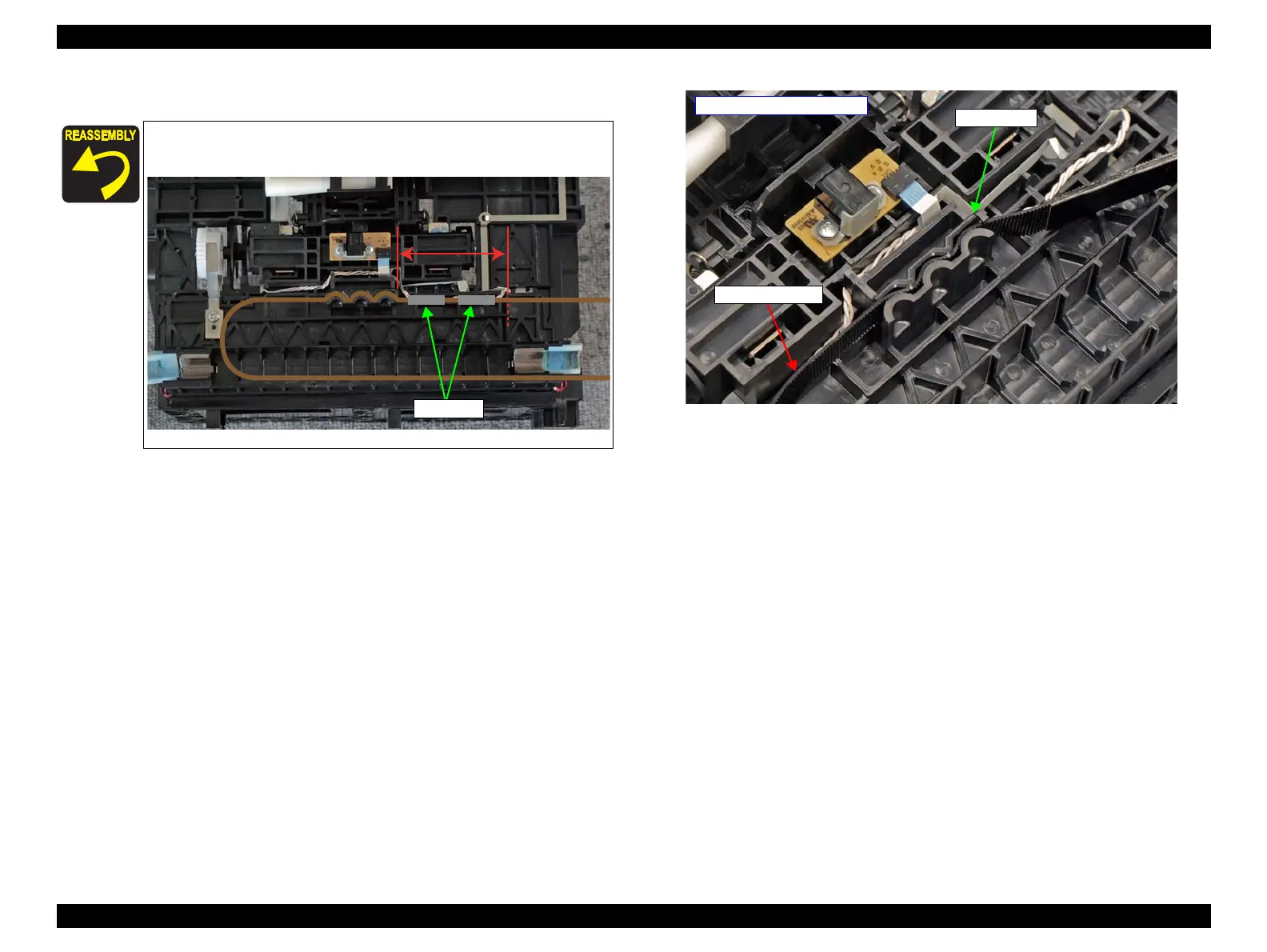

18. Remove the CR Timing Belt from the belt holder on the back side of the CR Unit.
Figure 3-99. Removing the CR Timing Belt
Attach the CR Timing Belt to the CR Unit so that the joint clips on
the belt locate within the range shown below.
Joint clips
- Back side of the CR Unit -
Belt Holder
CR Timing Belt
