Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 205
SE Group Confidential (Related Staff Only)

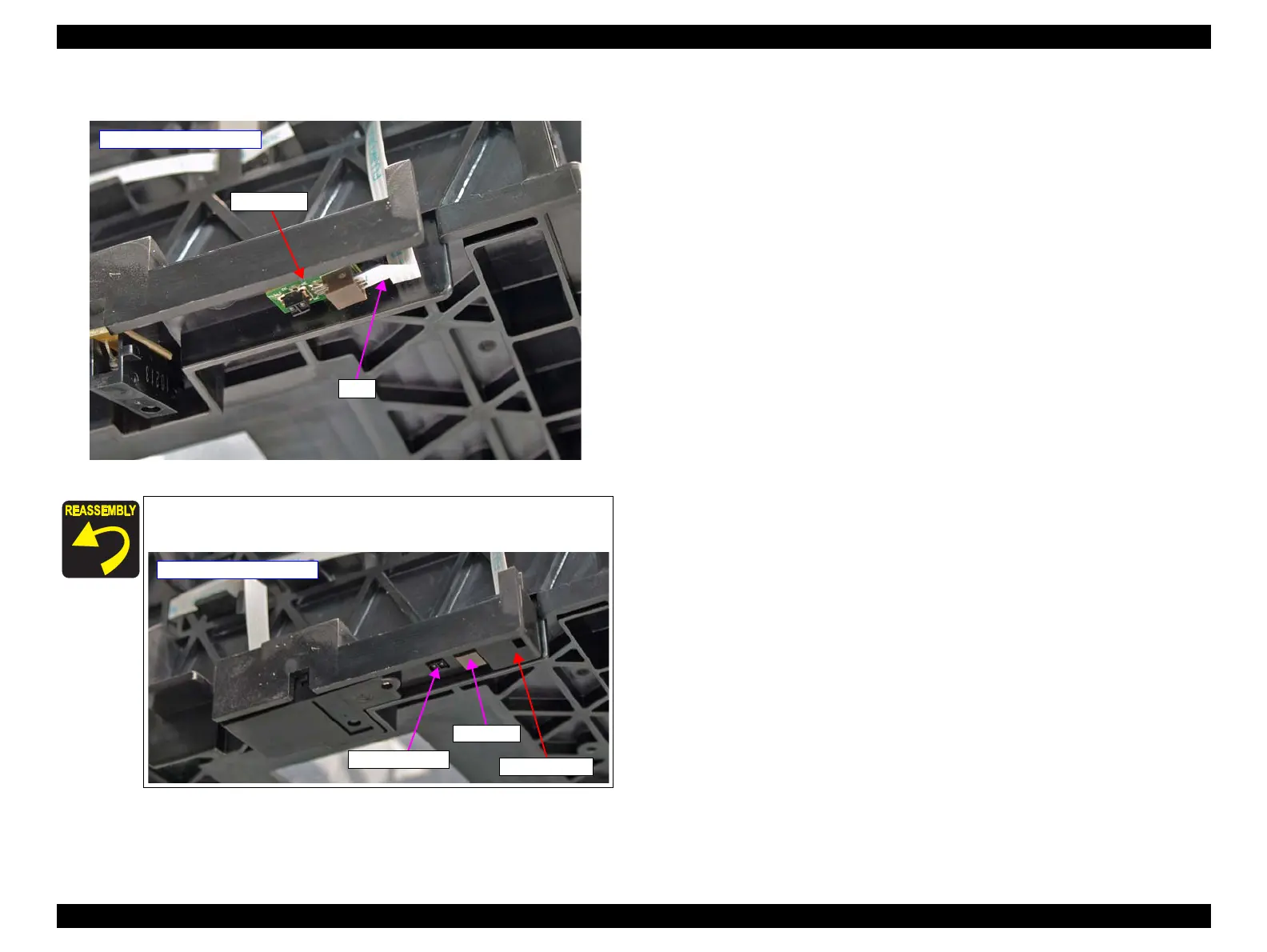

8. Disconnect the FFC from the PW Sensor, and remove the PW Sensor.
Figure 3-149. Removing the PW Sensor
Position the PW Sensor so that its sensing portion and connector
are located as shown.
- Bottom of the CR Unit -
FFC
PW Sensor
- Bottom of the CR Unit -
Sensing Portion
Sensor Cover
Connector
