DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 253
SE Group Confidential (Related Staff Only)
3. Release the cable and power cable of the Drying Fan Unit from the clamp.
4. Disconnect the power cable of the Drying Fan Unit.
5. Remove the two screws that secure the Drying Fan Unit.
A) Special screw: 2 pcs
6. Remove the Drying Fan Unit in the direction of the arrow.

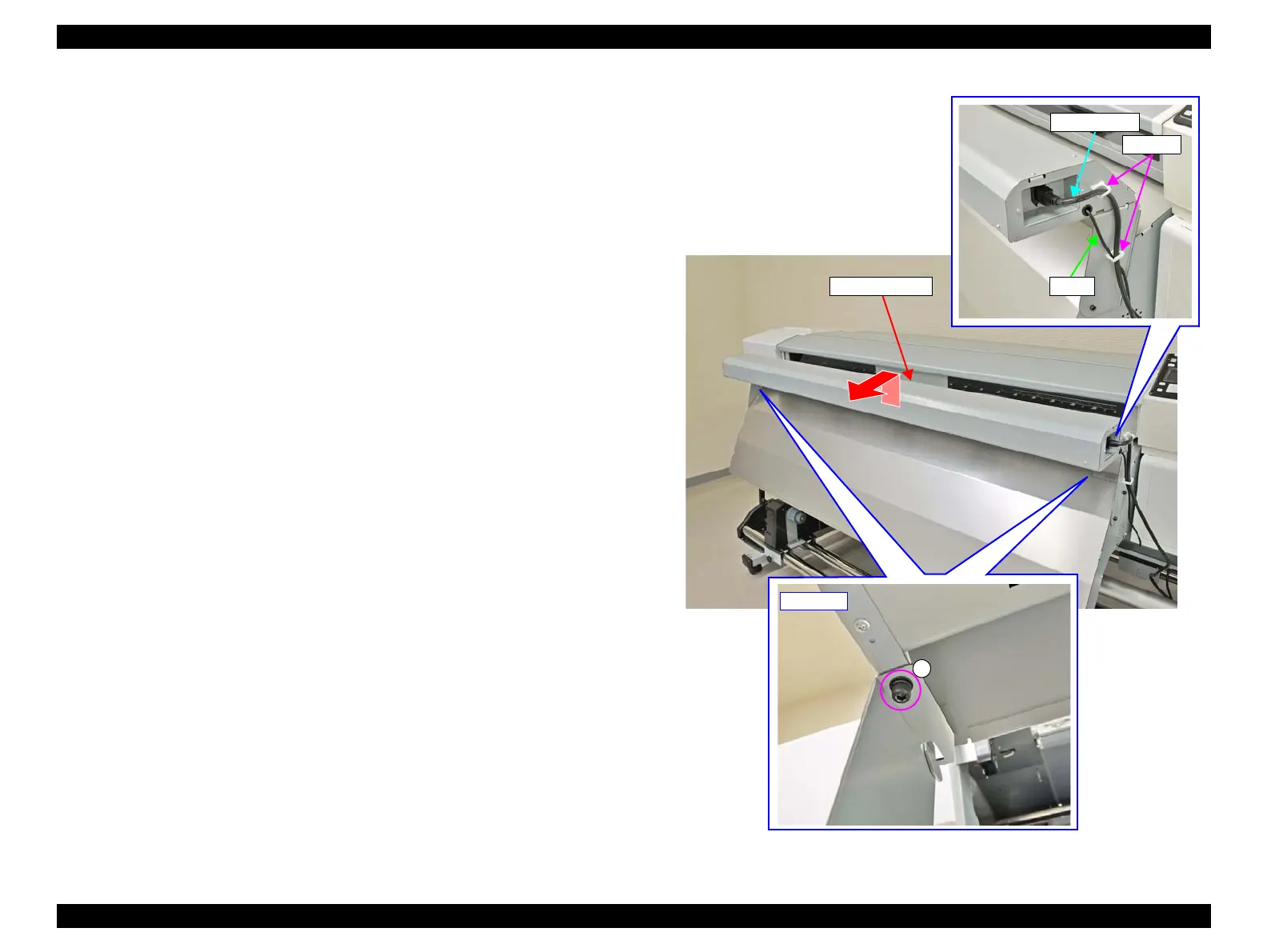

Figure 3-211. Removing the Drying Fan Unit (front side)
A
- Bottom -
Power Cable
Clamps
Cable
Drying Fan Unit
