Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT Head Related Checks and Adjustments 324
SE Group Confidential (Related Staff Only)

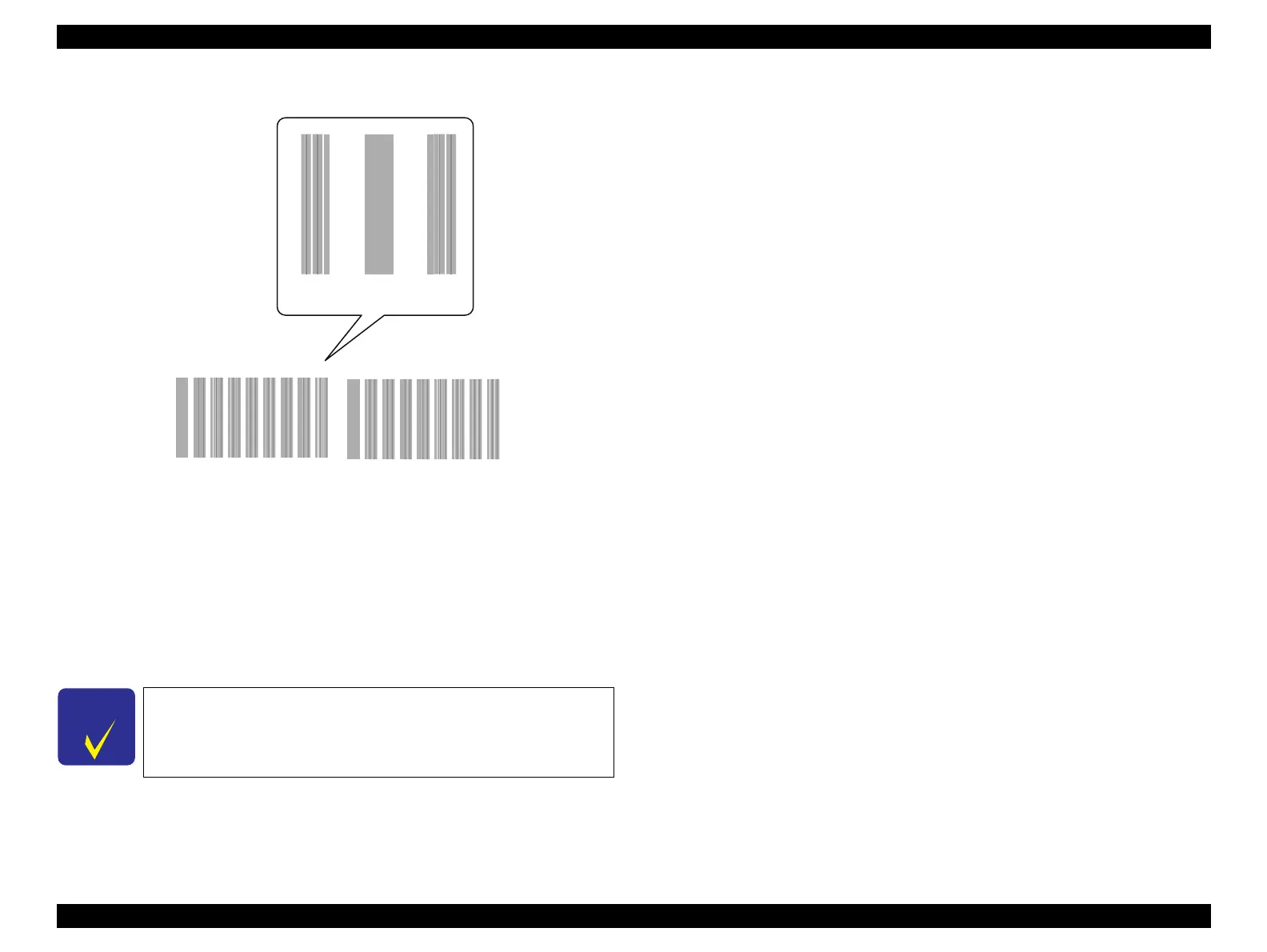

Figure 4-47. Adjustment Pattern
9. On the control panel, set [2.0] in Platen Gap.
10. On the control panel, set [0.2mm] in Head Alignment. and then press [OK], the
adjustment pattern will be printed.
11. Repeat adjustment until the number of the pattern with least visible lines falls
between 2 through 8.
12. Click [OK] on the POPUP screen of the service program.
C H E C K
P O I N T
 By clicking the [OK] button on the program, the adjusted
results are also applied to media 1-30.
 The setting value for PG2.5 is automatically calculated.
Dual Head #1
123456789
Dual Head #2
123456789
NG NGOK
