SC-F9200 Series Revision C
ADJUSTMENT Boards Related Checks and Adjustments 348
SE Group Confidential (Related Staff Only)

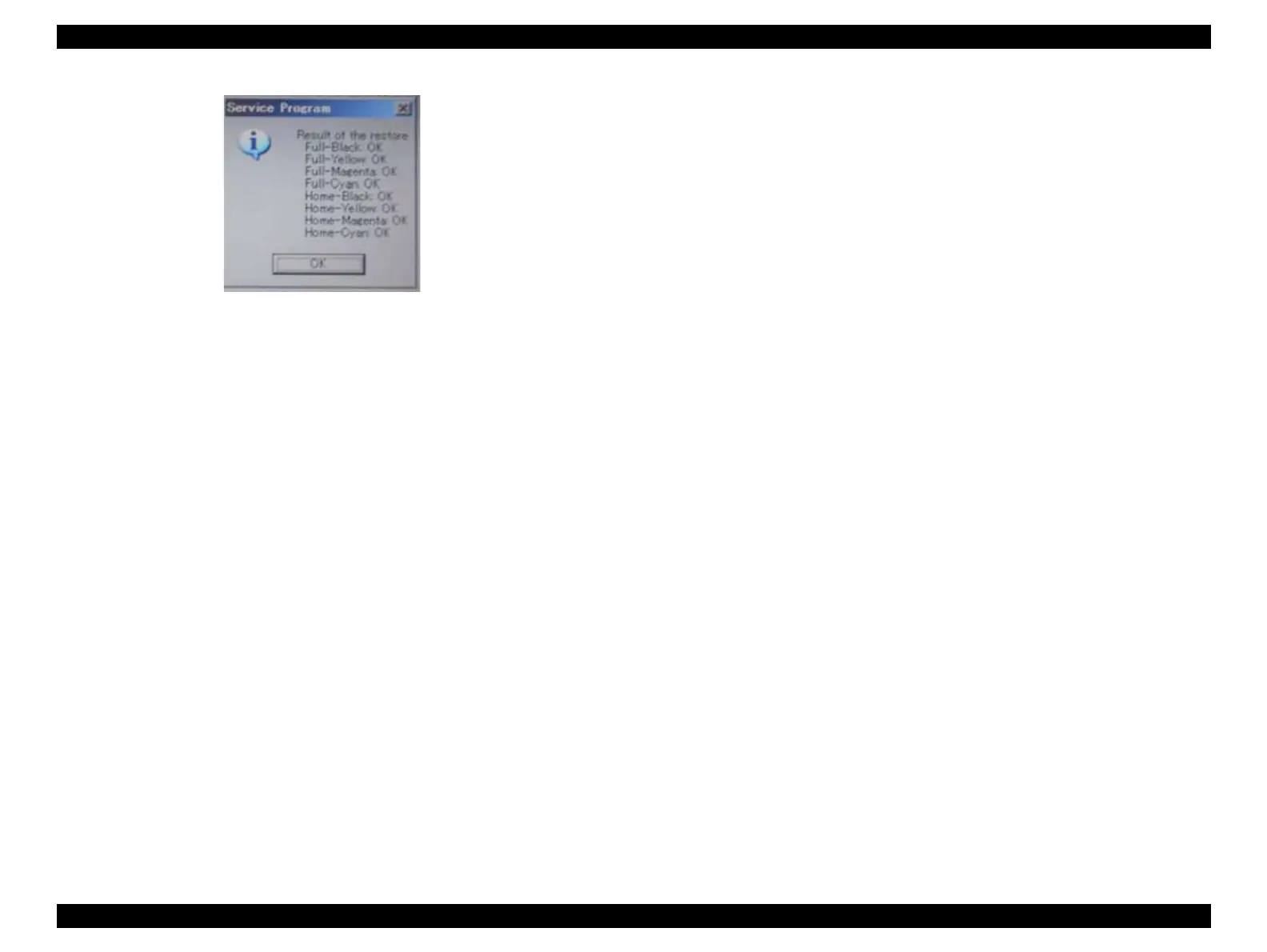

Figure 4-71. Pop-up message
Color which is displayed “OK“: Complete the procedure. If all colors are
“OK“, turn the printer OFF to finish the adjustment
Color which is displayed “NG“: perform the following steps.
5. Refill Ink from a new ink pack until becoming full capacity of the Ink Tank.
6. Install the chip unit which is attached the new ink pack.
7. Inform customer to keep use ink without Reservation until the amount of ink in
Ink Tank is less than 70mm from the base of the Ink Tank .
(Once the amount of ink in Ink Tank is less than 70mm, Reservation works as
usual.)
8. To inform customer which color couldn’t be restored, put circle mark at Step2 on
next page.
9. Turn the printer OFF to finish the adjustment.
To Next Page
