SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 143
Confidential
3.4.5.15 IC Holder
1. Run the ink discharging sequence.
2. Remove the Media Loading Lever. (p158)
3. Remove the Panel Unit. (p86)
4. Remove the Right Upper Cover. (p88)
5. Remove the Right Front Cover. (p91)
6. Remove the Right Cover. (p92)
7. Remove the Board Box Cover. (p101)
8. Remove the cable cover. (See Step 7 in
“3.4.5.14 Pump Cap Unit” (P. 141))
9. Open the four clamps.
10. On the front side, release the cable from the two relay connectors (No.1 and
No.21).
11. On the rear side, release the cable from the three relay connectors (No.42, No.55
and No.65).

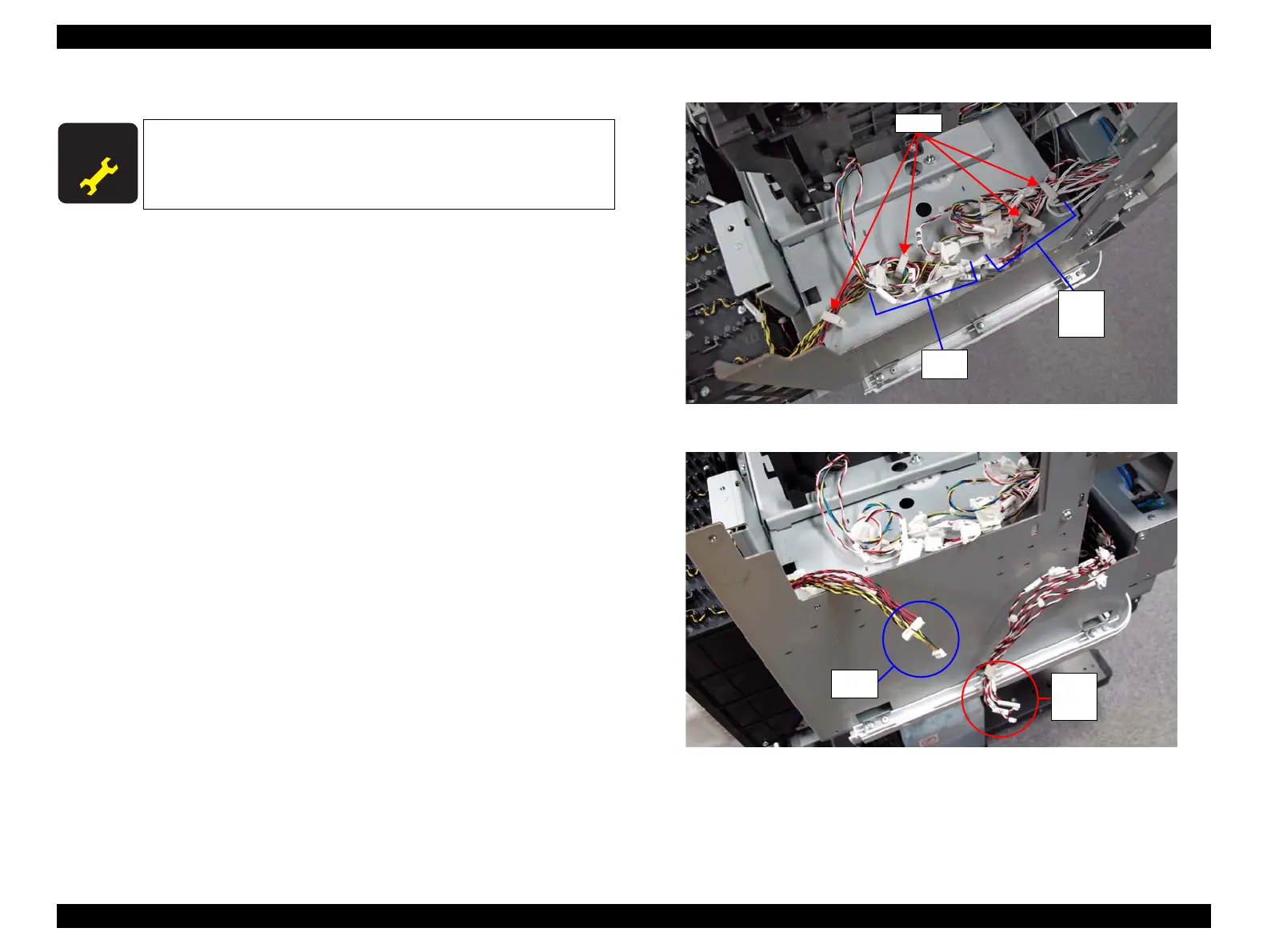

Figure 3-94. Releasing the Cable
Figure 3-95. Released Cables
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
No.42
No.55
No.65
No.1
No.21
Clamp
To Next Page
