SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 145
Confidential

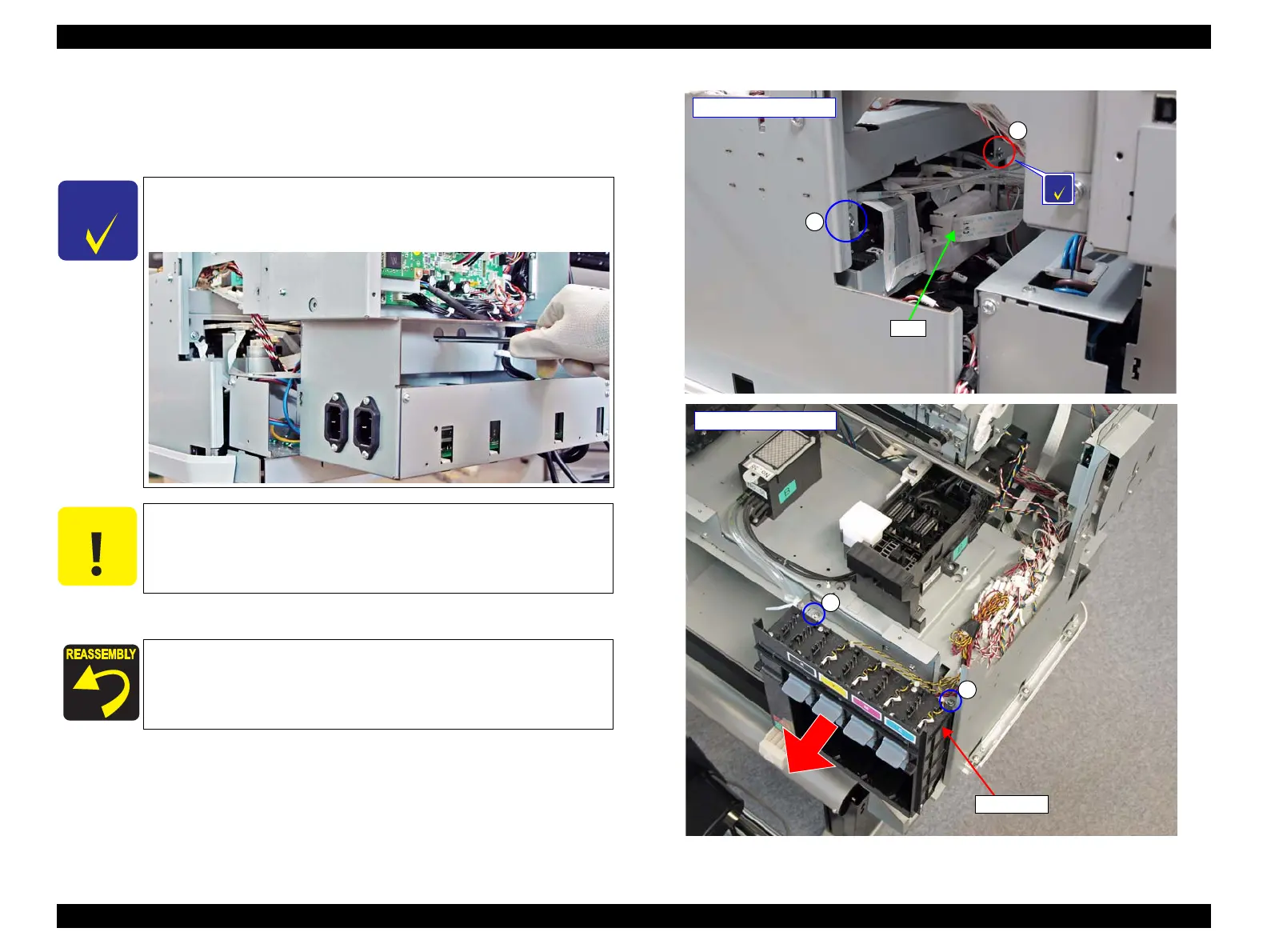

16. Disconnect the FFC from the rear of the IC Holder.
17. Remove the four screws that secure the IC Holder.
E) Silver M4x10 S-tite screw with built-in washer: 4 pcs
18. Remove the IC Holder pulling out the Ink Tubes and cables.
Figure 3-98. Removing the IC Holder
C H E C K
P O I N T
For removing the screw indicated with a red circle in Figure3-98,
use a stubby screwdriver or insert a driver through the hole on the
Power Supply Box.
C A U T I O N
At the next step, be sure to remove the IC Holder slowly and
carefully not to damage the Ink Tubes and cables with the sharp
metal edges of frames.
When installing the IC Holder, pay attention to the followings.
 Do not fold the ink tubes.
 Be careful not to let the ink tubes and the cable get caught
between the IC Holder and the frame of main body.
E
E
E
E
FFC
C H E C K
P O I N T
- Upper side of Holder-
- Rear side of Holder-
IC Holder
