Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 148
Confidential

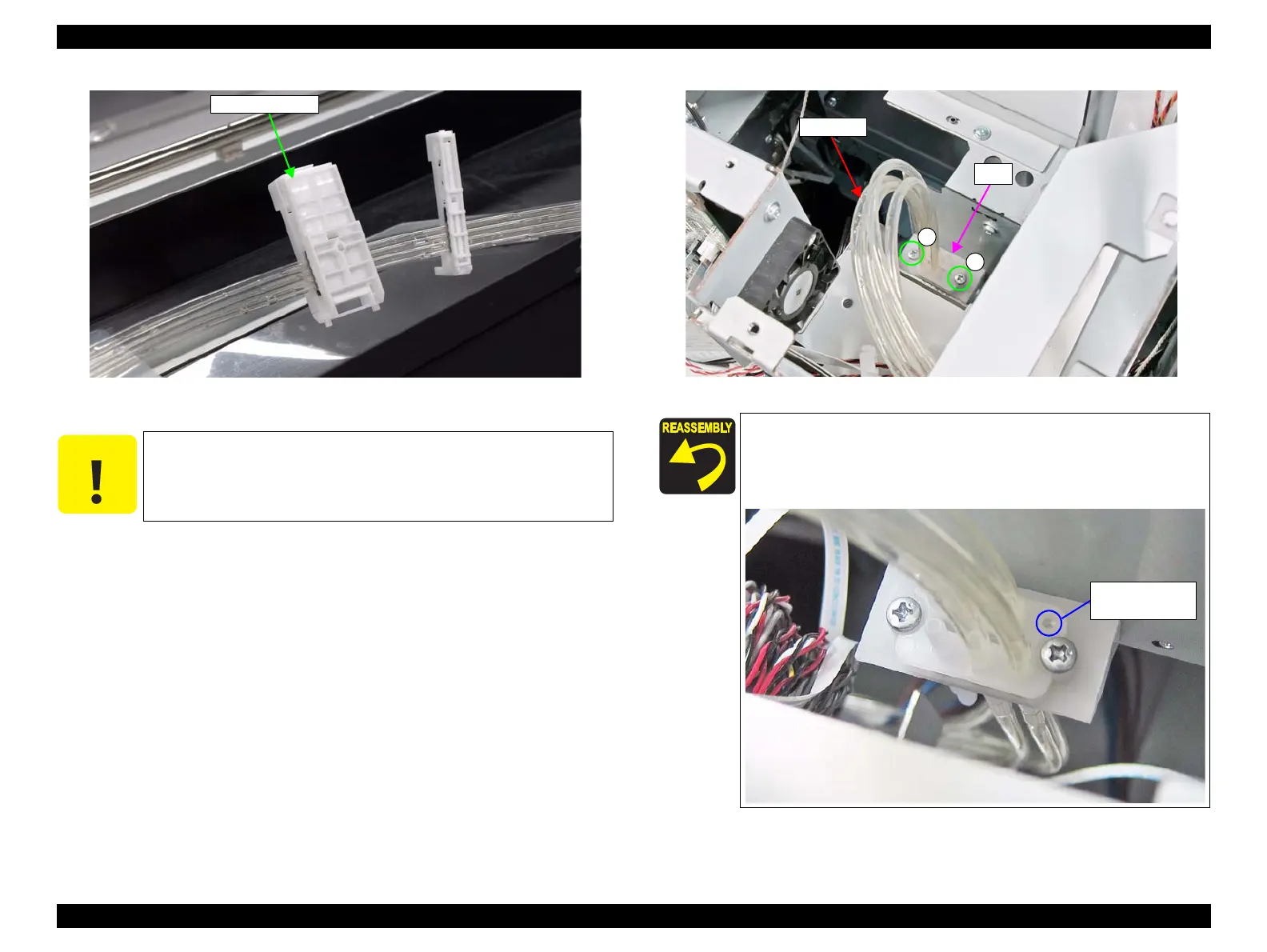

Figure 3-101. Ink Tube Holder
16. Remove the two screws, and separate the upper joint and lower joint.
C) Silver M3x10 screw: 2 pcs
Figure 3-102. Removing the Ink Tubes
C A U T I O N
When the joint is removed in the next step, ink may drip off from
the tube. Prepare a waste cloth or the like in advance and be careful
not to contaminate the surroundings.
Ink Tube Holder
 When installing the Ink Tubes, confirm that there is no torsion
of the Ink Tubes. (See Figure3-102
)
 When installing the joint, insert the dowel into the positioning
hole.
C
C
Joint
Ink Tube
Positioning hole
and dowel
