SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 147
Confidential
3.4.5.16 Ink Tube
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Left Rear Cover. (p94)
5. Remove the Left Upper Cover. (p95)
6. Remove the Upper Cover. (p100)
7. Remove the CR Cover. (p119)
8. Remove the Damper Kit. (p120)
9. Remove the Print Head. (p121)
10. Remove the Board Box Cover. (p101)
11. Remove the Head Relay FFC. (p126)
12. Remove the CR FFC. (p128)
13. Disengage the hook, and remove the Ink Tube Holder.
14. Remove the screw, and remove the Ink Tube Path from the Ink Path Holder Assy.
A) Silver M3x8 P-tite screw: 1 pcs

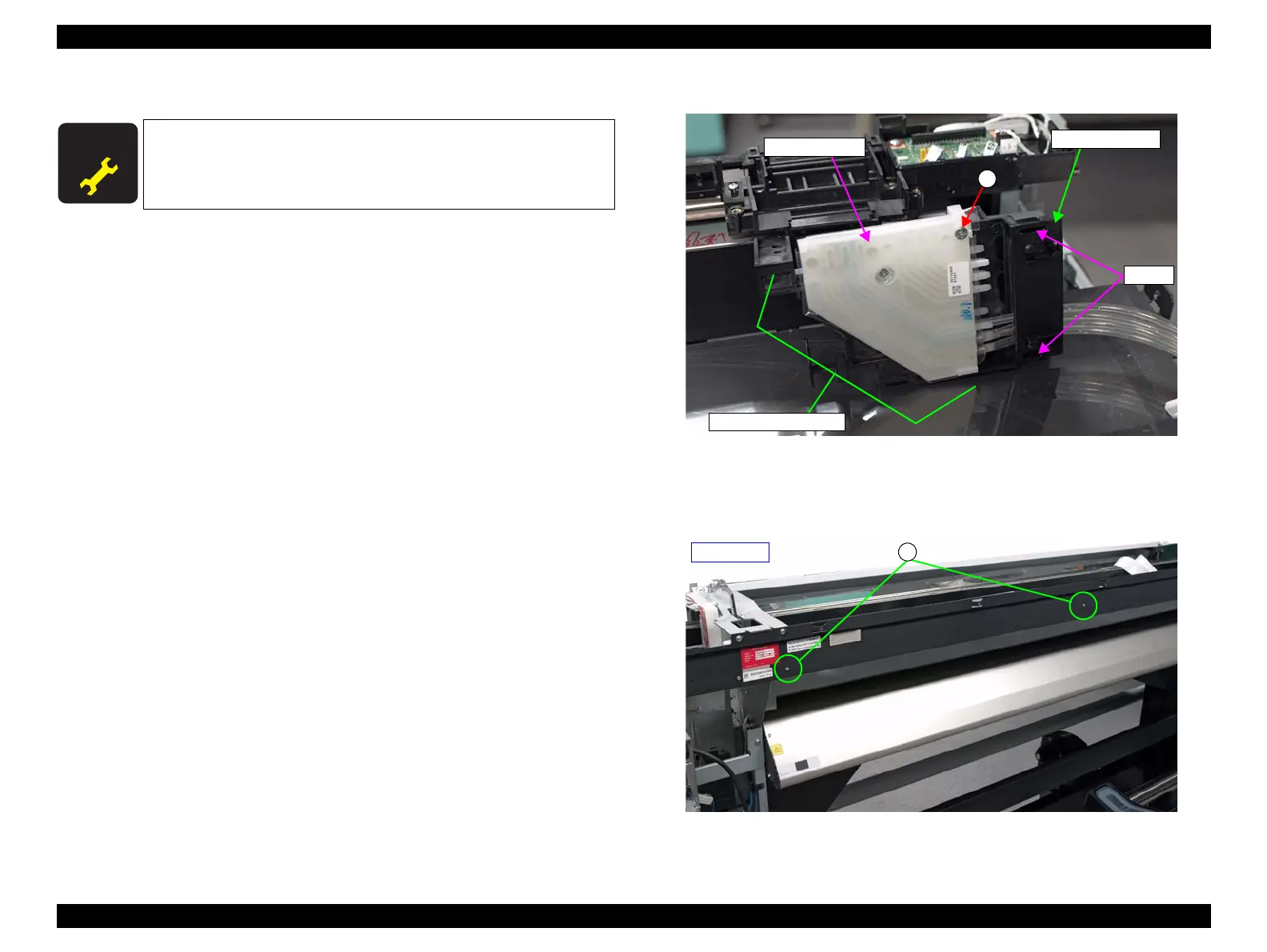

Figure 3-99. Removing the Ink Tube Path
15. Remove the screw one each on the two Ink Tube Holders, and remove the holders.
B) Silver M3x8 P-tite screw: 1 pcs
Figure 3-100. Removing the Ink Tube Holder
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
A
Ink Tube Holder
Ink Tubes Path
Ink Path Holder Assy
Hooks
B
- Rear side -
