Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 162
Confidential
3.4.6.4 PF Encoder
1. Remove the Left Rear Cover. (p94)
2. Remove the Left Upper Cover. (p95)
3. Remove the Left Cover. (p98)
4. Disconnect the FFC from the connector of the PF Encoder.
5. Remove the screw, and remove the PF Encoder.
A) Silver M2.5x6 (Bit No.1) P-tite screw: 1 pcs

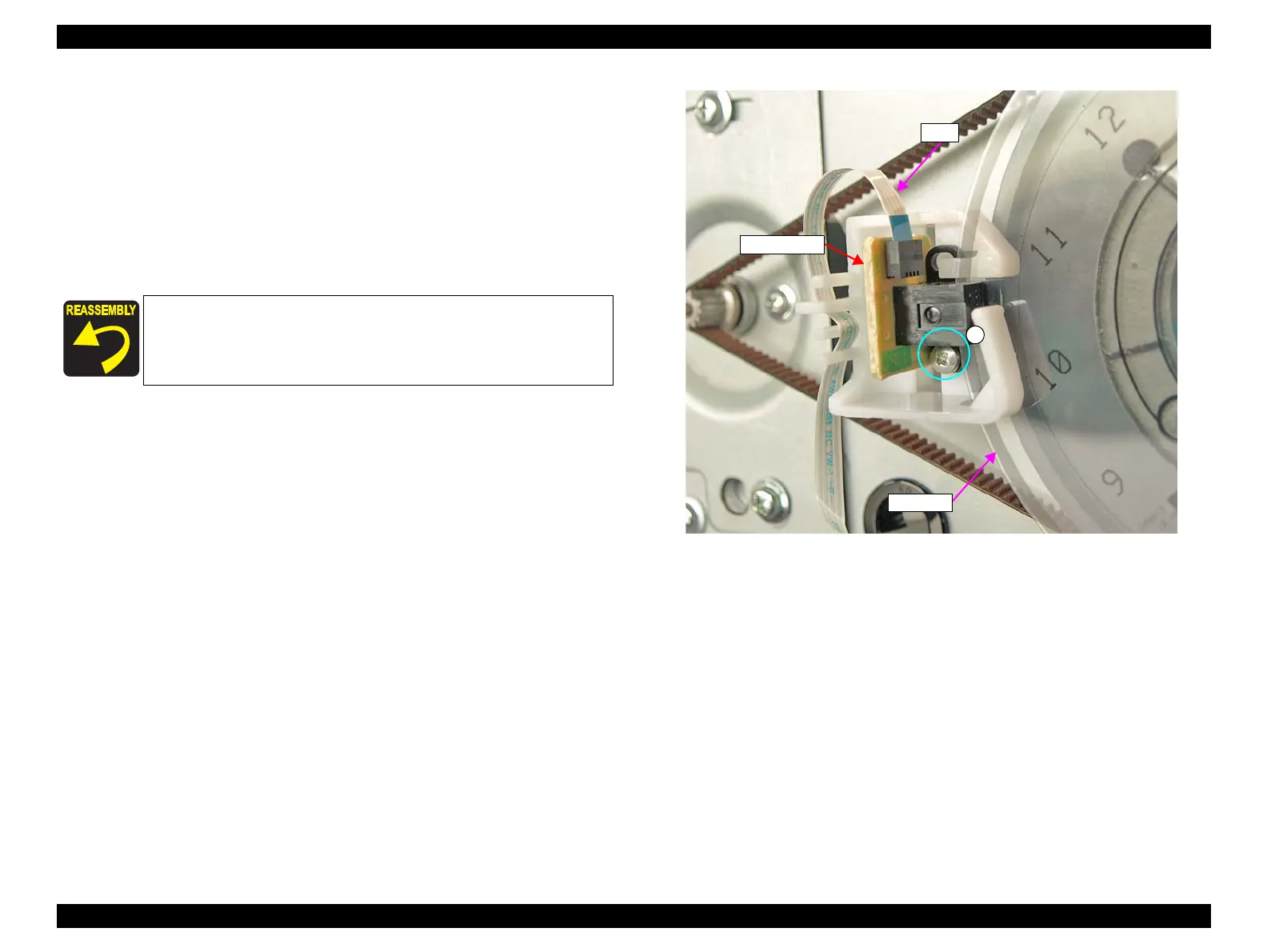

Figure 3-122. Removing the PF Encoder
When installing the PF Encoder, be sure the PF Encoder and the
PF Scale are not in contact with each other.
A
FFC
PF Encoder
PF Scale
