SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 163
Confidential
3.4.6.5 PF Scale
1. Remove the Left Rear Cover. (p94)
2. Remove the Left Upper Cover. (p95)
3. Remove the Left Cover. (p98)
4. Remove the PF Encoder. (p164)
5. Remove the PF Scale.

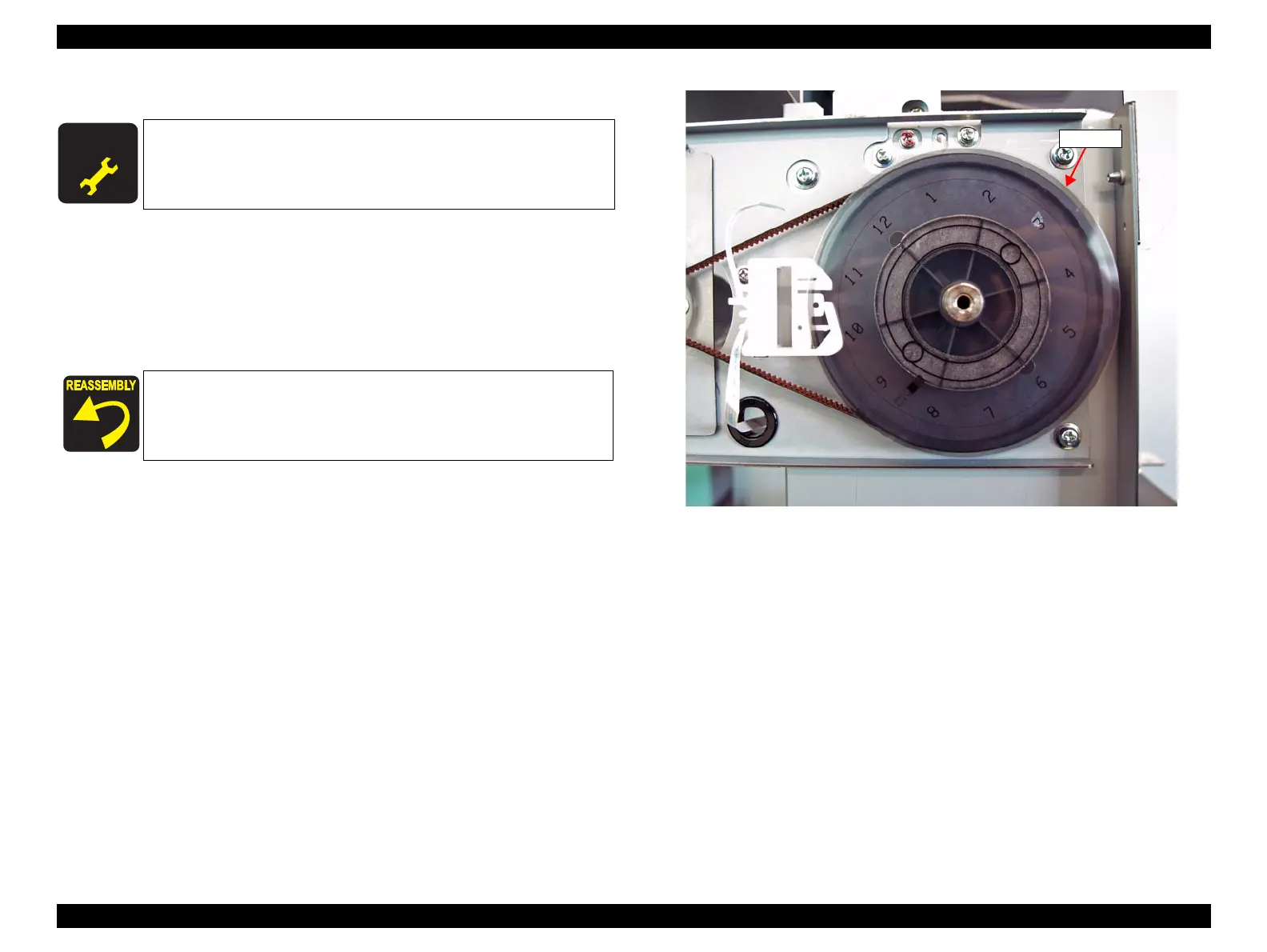

Figure 3-123. Removing the PF Scale
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
ASP PF Scale is not provided with double-sided tape (The tape is
provided separately). Make sure to first attach the tape to the wheel
of the main body, and then attach the PF Scale.
To Next Page
