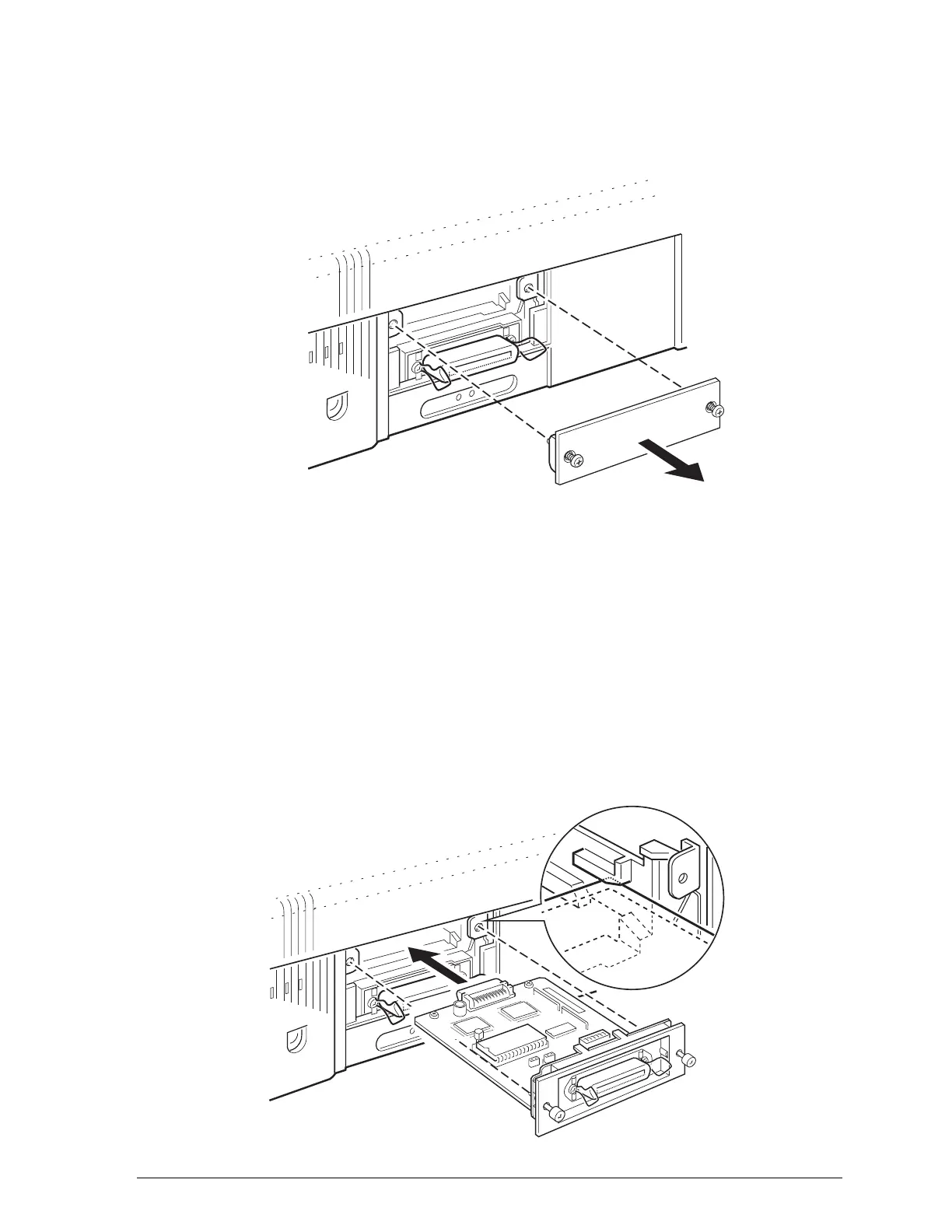

4. Use a cross-head screwdriver to remove the two screws
securing the shield plate to the optional interface slot; then
lift off the plate.
5. Be sure to set any switches and jumpers on the card. See the
interface card manual for details. If your interface card has
a jumper named JG, make sure that you set it to on, or the
card will not work properly.
6. Slide the interface card along the slots on both sides of the
interface compartment. Push it in firmly to fully insert the
connector at the rear of the interface card into the printer’s
internal socket.
Using Optional Interfaces
7-3
